S-Presso MC

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANEL (RHD)VENTILATORHEATER UNIT(RHD)HEATER CONTROL(RHD)CONSOLE BOX (5MT)CONSOLE BOX (5AGS)FLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENER (RHD)ROOF LININGROOF SIDE PADMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANEL (W/FRONT POWER WINDOW)REAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATOR(W/FRONT POWER WINDOW)REAR DOOR REGULATORFRONT DOOR LOCKREAR DOOR LOCKBACK DOOR LOCKMIRROR/SUNVISOR (K10B,K10C)SEAT BELTFRONT LH SEAT (RHD)FRONT RH SEAT (RHD)REAR SEAT (W/INTEGRATED HEADRESTRAINT)PARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSORREAR SEAT (W/SEPARATE HEADRESTRAINT)

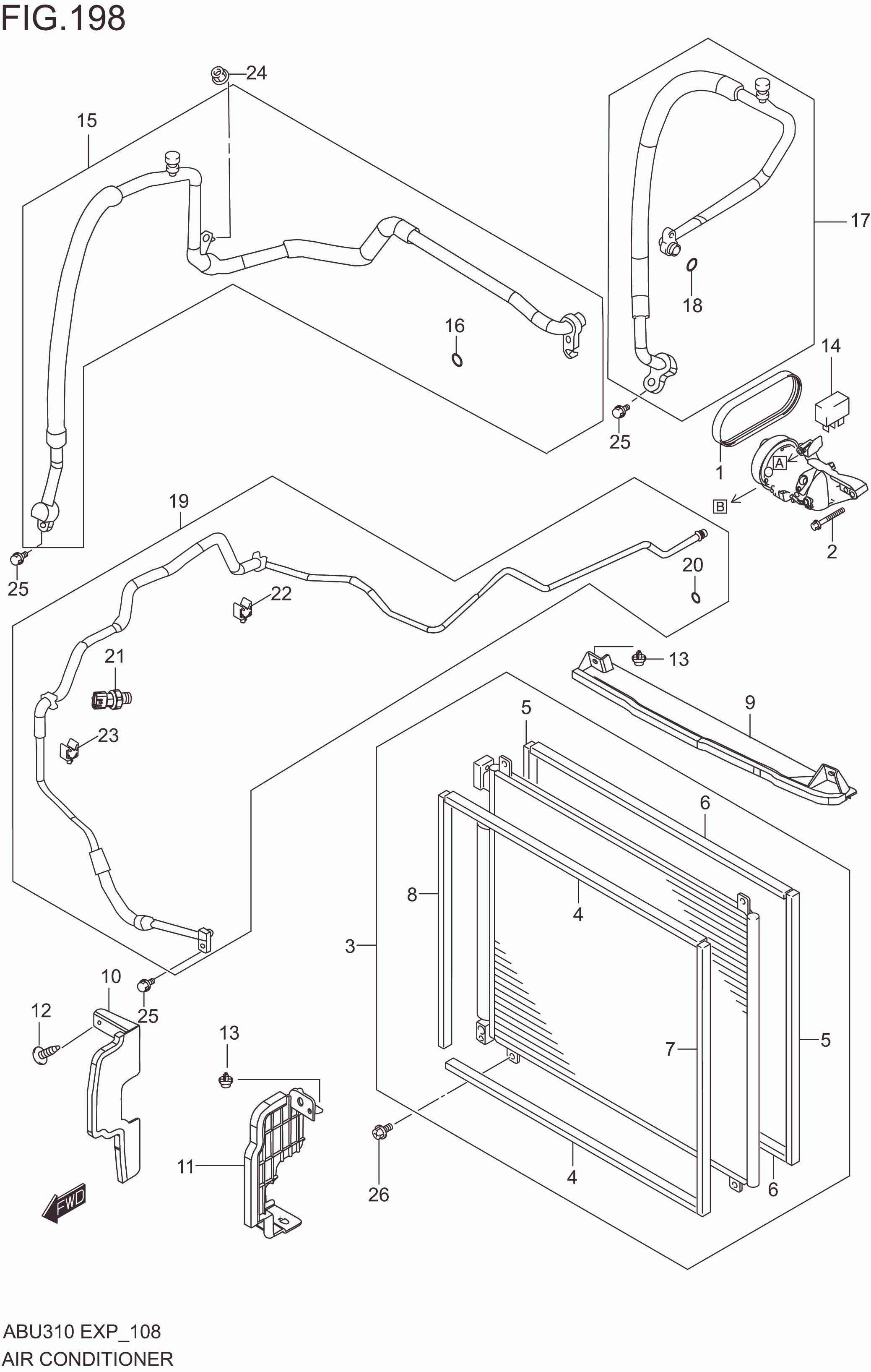

AIR CONDITIONER

AIR CONDITIONER
No No. Part Description Qty Price Per Pcs Remarks
1-2 95141M66R00-000 V-BELT(4PK) R :K10C 1 Rp151.000 K10C
1-1 95141M62S00-000 V-BELT R :K10B 1 Rp83.000 K10B
2 01550-0850A-000 BOLT 1 Rp3.500
3-1 95310M62S00-000 CONDENSER ASSY R :K10B 1 Rp1.981.500 K10B
3-2 95310M53T00-000 CONDENSER ASSY R :K10C 1 Rp1.567.000 K10C
4-1 95811M62S00-000 .PACKING R :K10B 2 Rp24.500 K10B
4-2 95811M62S00-000 .PACKING R :K10C 1 Rp24.500 K10C
5-1 95812M62S00-000 .PACKING R :K10B 3 Rp31.000 K10B
5-2 95812M53T00-000 .PACKING R :K10C 1 Rp29.500 K10C
6-1 95813M79M00-000 .PACKING R :K10B 2 Rp51.500 K10B
6-2 95813M79M00-000 .PACKING R :K10C 5 Rp51.500 K10C
7 95813M72R00-000 .PACKING R :K10B 1 Rp17.000 K10B
8 95814M53T00-000 .PACKING R :K10C 1 Rp29.500 K10C
9-1 95340M62S00-000 SHROUD,COND LOWER R :K10B 1 Rp54.500 K10B
9-2 95340M62S10-000 SHROUD,COND LOWER R :K10C 1 Rp31.500 K10C
10-1 95341M62S00-000 SHROUD,COND,RH R :K10B 1 Rp40.500 K10B
10-2 95341M62S10-000 SHROUD,COND,RH R :K10C 1 Rp16.500 K10C
11-1 95342M62S00-000 SHROUD,COND,LH R :K10B 1 Rp40.500 K10B
11-2 95342M62S10-000 SHROUD,COND,LH R :K10C 1 Rp16.500 K10C
12 09132M05063-000 SCREW 2 Rp5.500
13 09409M07L01-000 CLIP 4 Rp5.000
14 38860M76M00-000 RELAY,A/C 1 Rp58.500
15-1 95710M62S00-000 HOSE,SUCTION R :K10B 1 Rp791.500 K10B
15-2 95710M53T10-000 HOSE,SUCTION R :K10C 1 Rp606.000 K10C
16 95896-50G00-000 .O RING 2 Rp19.000
17-1 95720M62S00-000 HOSE,DISCHARGE R :K10B 1 Rp526.000 K10B
17-2 95720M53T10-000 HOSE,DISCHARGE R :K10C 1 Rp409.500 K10C
18 95895-50G00-000 .O RING 2 Rp12.500
19-2 95731M53T00-000 HOSE,LIQUID R :K10C 1 Rp894.500 K10C
19-1 95731M62S00-000 HOSE,LIQUID R :K10B 1 Rp1.049.000 K10B
20 95891-50G00-000 .O RING 1 Rp12.500
21-1 95526M50G40-000 .SWITCH,DUAL PRESSURE R :K10B 1 Rp324.500 K10B
21-2 95546M74L10-000 .SENSOR,REFRIGERANT PRESSURE R :K10C 1 Rp698.000 K10C
22 95761M55KA0-000 .CLAMP,LIQUID PIPE R :K10B 1 Rp19.500 K10B
23-1 95761M62S00-000 .CLAMP,LIQUID PIPE R :K10B 1 Rp6.500 K10B
23-2 95761M53T00-000 .CLAMP,LIQUID PIPE R :K10C 1 Rp14.000 K10C
24 09159M06112-000 NUT 1 Rp6.500
25 01550-0620C-000 BOLT,PIPE 5 Rp5.500
26 02162-0612A-000 BOLT 4 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
