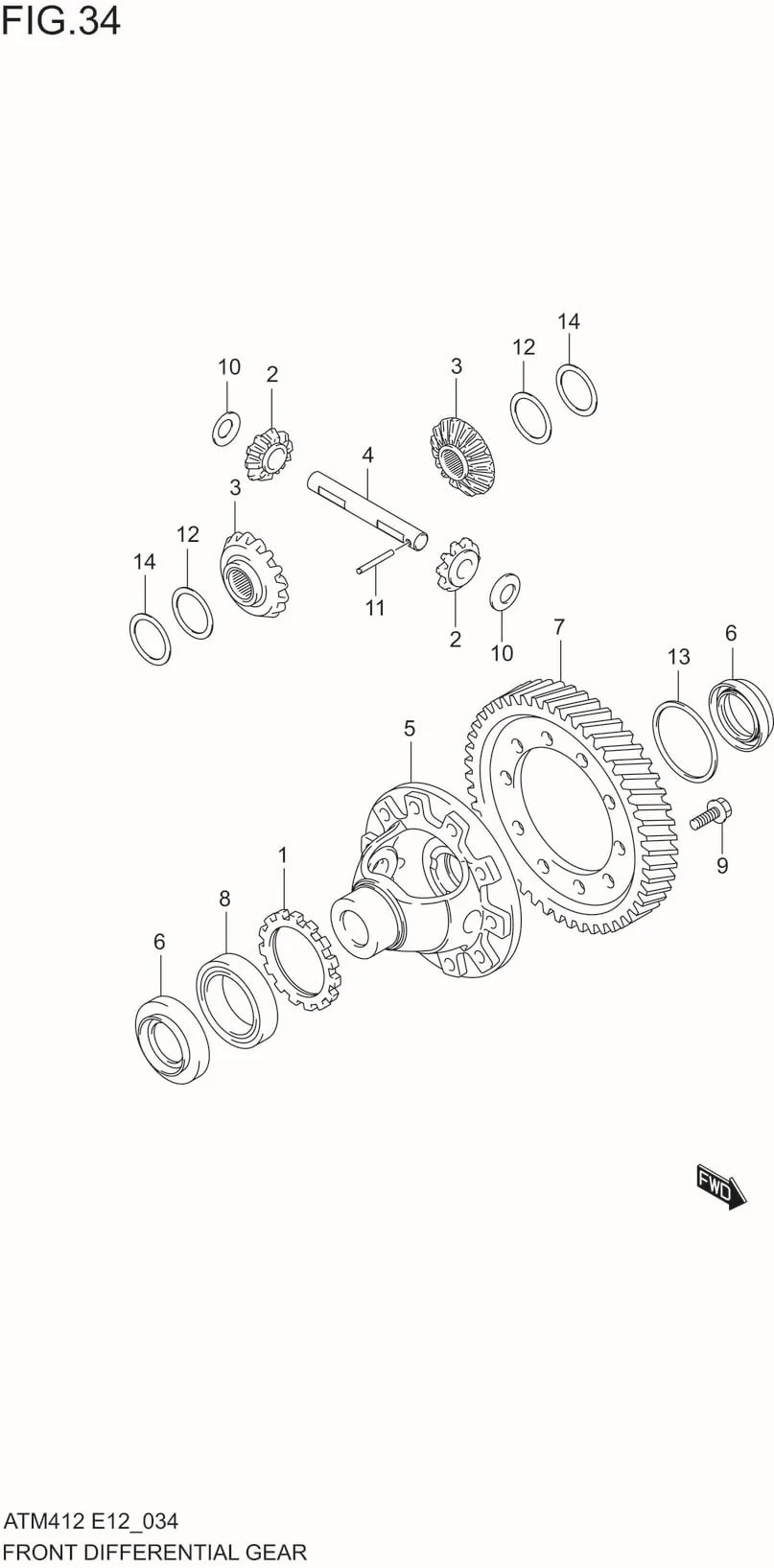

FIG.34 FRONT DIFFERENTIAL GEAR (5AGS)

FIG.34 FRONT DIFFERENTIAL GEAR (5AGS)
No No. Part Description Qty Price Per Pcs Remarks
1 26121M68K00-000 RING,EXCITER 1 Rp64.000
2 27331M55K00-000 PINION, DIFFERENTIAL 2 Rp163.500
3 27341M68K02-000 GEAR,DIFFERENTIAL SIDE 2 Rp238.000
4-1 27351M76M20-000 SHAFT, DIFFERENTIAL PINION 1 Rp75.000
4-2 27351M76M20-000 SHAFT, DIFFERENTIAL PINION 1 Rp75.000
5 27411M68P00-000 CASE, FR DIFF 1 Rp571.500
6 27432M74LB0-000 SEAL, DIFF SIDE OIL 2 Rp81.500
7 27511M68P00-000 GEAR, FINAL 1 Rp1.690.500
8 27521M83M00-000 BEARING ASSY, DIFF SIDE 2 Rp298.500
9 09103-10189-000 BOLT 8 Rp29.000
10 09164M17006-000 WASHER (17.3X32X1) 2 Rp8.000
11 09205M05007-000 PIN (5X36) 1 Rp5.000
12-10 09160M35023-000 WASHER,DIFF SIDE GEAR T1.05 0 Rp10.000
12-9 09160M35018-000 WASHER,DIFF SIDE GEAR T1.0 0 Rp20.500
12-8 09160M35022-000 WASHER,DIFF SIDE GEAR T0.95 0 Rp10.000
12-7 09160M35021-000 WASHER,DIFF SIDE GEAR T0.9 0 Rp10.000
12-6 09181M35159-000 WASHER,DIFF SIDE GEAR T0.85 0 Rp9.000
12-4 09181M35158-000 WASHER,DIFF SIDE GEAR T0.75 0 Rp9.000
12-3 09160M35014-000 WASHER,DIFF SIDE GEAR T0.7 0 Rp10.000
12-2 09181M35157-000 WASHER,DIFF SIDE GEAR T0.65 0 Rp9.000
12-1 09160M35015-000 WASHER,DIFF SIDE GEAR T0.6 0 Rp6.500
12-5 09160M35013-000 WASHER,DIFF SIDE GEAR T0.8 0 Rp9.000
13-9 29541M83M00-098 SHIM, DIFF SIDE BRG (T:0.98) 0 Rp16.500
13-20 29541M83M00-142 SHIM, DIFF SIDE BRG (T:1.42) 0 Rp20.500
13-19 29541M83M00-138 SHIM, DIFF SIDE BRG (T:1.38) 0 Rp20.500
13-18 29541M83M00-134 SHIM, DIFF SIDE BRG (T:1.34) 0 Rp20.500
13-17 29541M83M00-130 SHIM, DIFF SIDE BRG (T:1.30) 0 Rp19.500
13-16 29541M83M00-126 SHIM, DIFF SIDE BRG (T:1.26) 0 Rp19.500
13-15 29541M83M00-122 SHIM, DIFF SIDE BRG (T:1.22) 0 Rp19.500
13-14 29541M83M00-118 SHIM, DIFF SIDE BRG (T:1.18) 0 Rp19.500
13-13 29541M83M00-114 SHIM, DIFF SIDE BRG (T:1.14) 0 Rp19.500
13-12 29541M83M00-110 SHIM, DIFF SIDE BRG (T:1.10) 0 Rp19.500
13-11 29541M83M00-106 SHIM, DIFF SIDE BRG (T:1.06) 0 Rp18.500
13-10 29541M83M00-102 SHIM, DIFF SIDE BRG (T:1.02) 0 Rp18.500
13-8 29541M83M00-094 SHIM, DIFF SIDE BRG (T:0.94) 0 Rp18.500
13-7 29541M83M00-090 SHIM, DIFF SIDE BRG (T:0.90) 0 Rp16.500
13-6 29541M83M00-086 SHIM, DIFF SIDE BRG (T:0.86) 0 Rp18.500
13-5 29541M83M00-082 SHIM, DIFF SIDE BRG (T:0.82) 0 Rp18.500
13-4 29541M83M00-078 SHIM, DIFF SIDE BRG (T:0.78) 0 Rp18.500
13-3 29541M83M00-074 SHIM, DIFF SIDE BRG (T:0.74) 0 Rp17.000
13-2 29541M83M00-070 SHIM, DIFF SIDE BRG (T:0.70) 0 Rp17.000
13-1 29541M83M00-066 SHIM, DIFF SIDE BRG (T:0.66) 0 Rp15.000
14 09164-35003-000 WASHER (35.2X44X0.3) 2 Rp47.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
