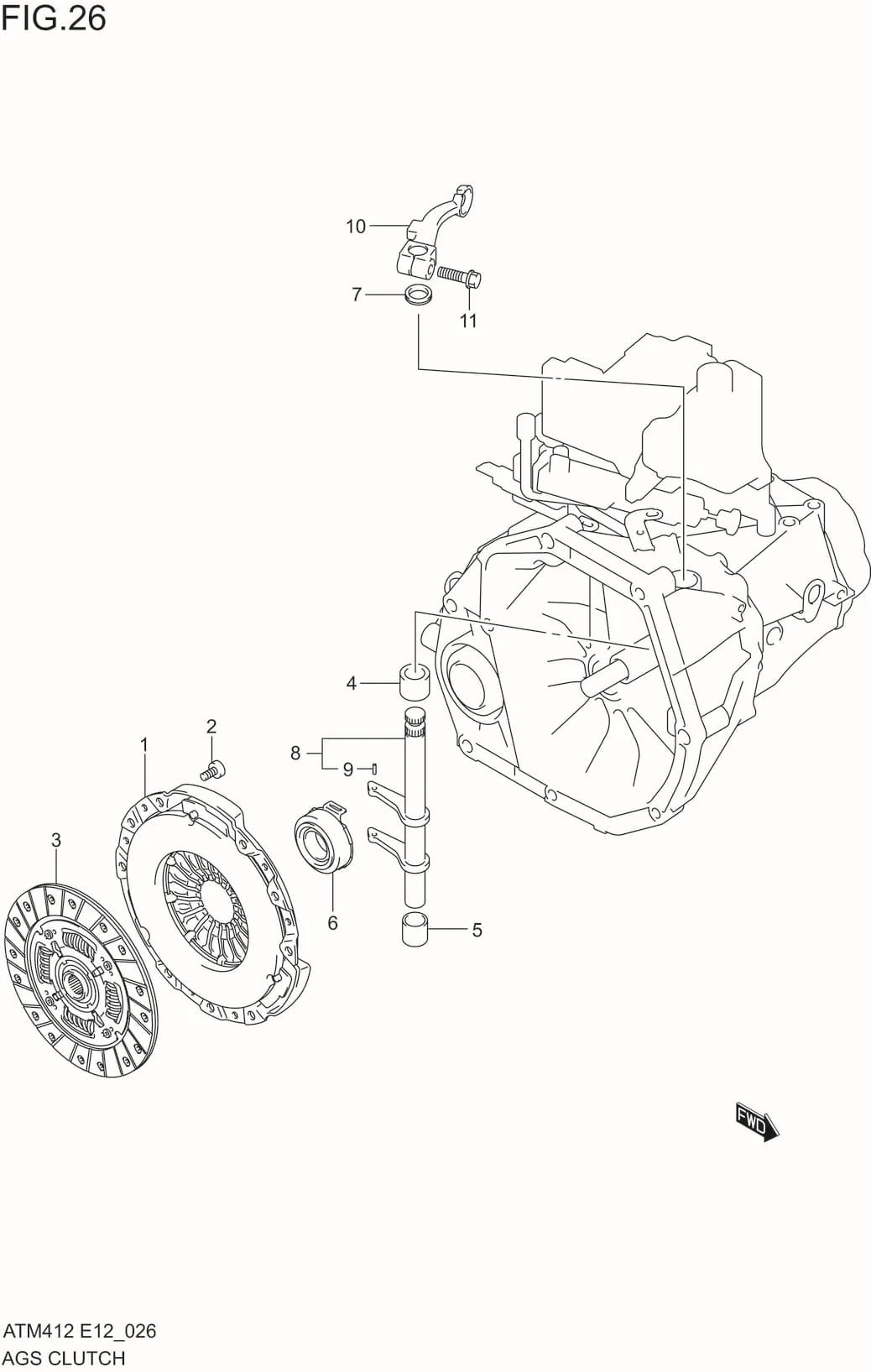

FIG.26 AGS CLUTCH (5AGS)

FIG.26 AGS CLUTCH (5AGS)
No No. Part Description Qty Price Per Pcs Remarks
1 22100M66R02-000
SUB: 22100M66R00-000		 COVER ASSY, CLUTCH 1 Rp388.000
2 01550-0816A-000
SUB: 01550B0816AN000		 BOLT, CLUTCH COVER 6 Rp6.000
3 22400M66R00-000 DISC, CLUTCH 1 Rp494.000
4-1 23264M60B00-000 BUSH, CLUTCH RELEASE SHAFT NO.1 1 Rp23.500
4-2 23264M60B00-000 BUSH, CLUTCH RELEASE SHAFT NO.1 1 Rp23.500
5-1 23264M60B20-000 BUSH, CLUTCH RELEASE SHAFT NO.2 1 Rp25.000
5-2 23264M60B20-000 BUSH, CLUTCH RELEASE SHAFT NO.2 1 Rp25.000
6 23265M79F00-000 BEARING, CLUTCH RELEASE 1 Rp287.000
7 23263M74L00-000 SEAL, CLUTCH RELEASE SHAFT 1 Rp22.000
8 23260M68K02-000 SHAFT, CLUTCH RELEASE 1 Rp90.500
9 09205-03019-000 .PIN (3X10) 1 Rp9.500
10 23266M66RE1-000 ARM, CLUTCH RELEASE 1 Rp117.000
11 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
