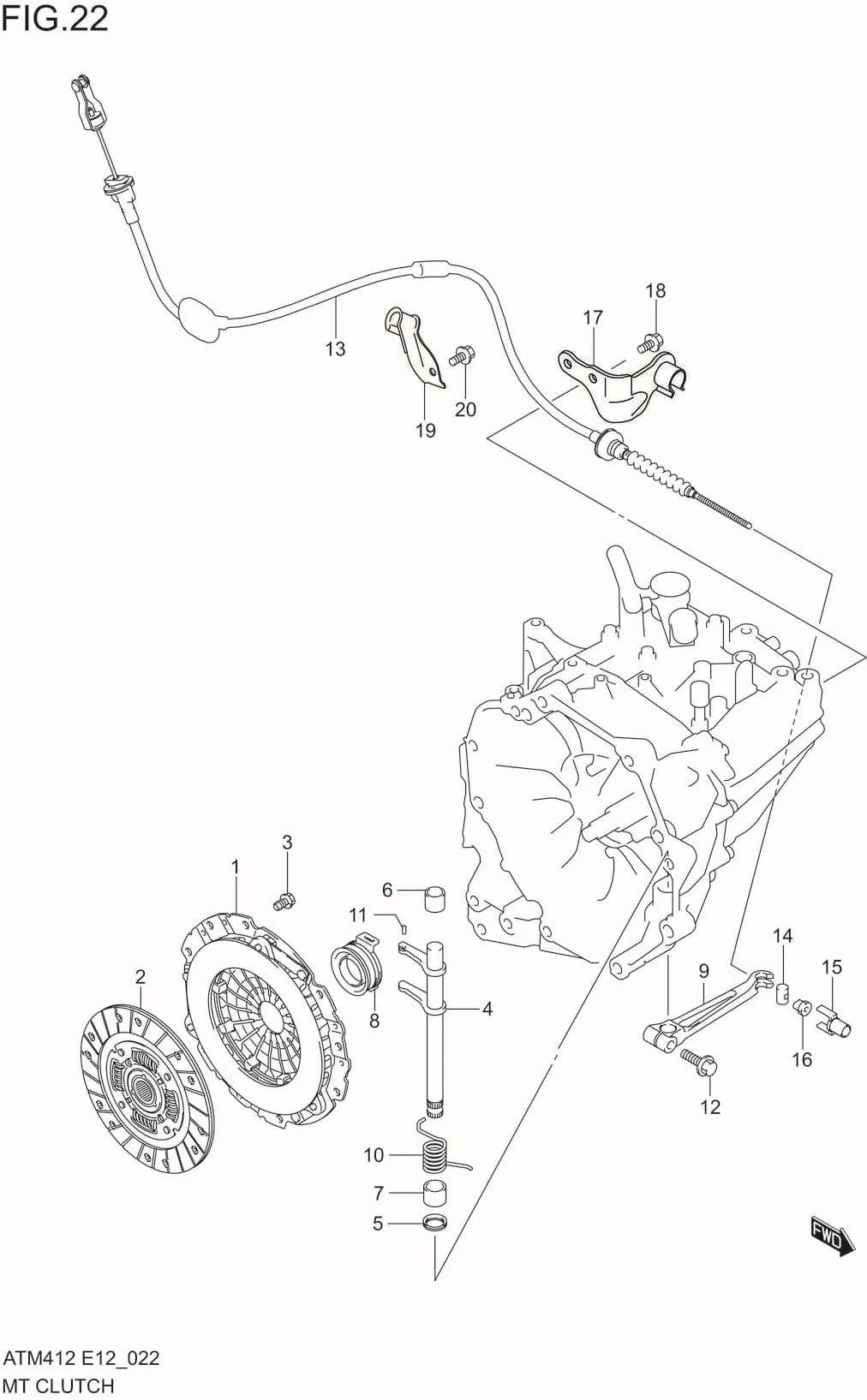

FIG.22 MT CLUTCH (5MT)

FIG.22 MT CLUTCH (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 22100M66R02-000
SUB: 22100M66R00-000		 COVER ASSY, CLUTCH 1 Rp388.000
2 22400M66R00-000 DISC, CLUTCH 1 Rp494.000
3 01550-0816A-000
SUB: 01550B0816AN000		 BOLT, CLUTCH COVER 6 Rp6.000
4 23260M68P00-000 SHAFT, CLUTCH RELEASE 1 Rp100.000
5 23263M74L00-000 SEAL, CLUTCH RELEASE SHAFT 1 Rp22.000
6-1 23264M60B00-000 BUSH, CLUTCH RELEASE SHAFT NO.1 1 Rp23.500
6-2 23264M60B00-000 BUSH, CLUTCH RELEASE SHAFT NO.1 1 Rp23.500
7-1 23264M60B20-000 BUSH, CLUTCH RELEASE SHAFT NO.2 1 Rp25.000
7-2 23264M60B20-000 BUSH, CLUTCH RELEASE SHAFT NO.2 1 Rp25.000
8-1 23265M79F00-000 BEARING, CLUTCH RELEASE 1 Rp287.000
8-2 23265M79F00-000 BEARING, CLUTCH RELEASE 1 Rp287.000
9 23266M76M30-000 ARM, CLUTCH RELEASE 1 Rp155.000
10 23269M76M00-000 SPRING, RELEASE SHAFT RETURN 1 Rp34.000
11 09205-03019-000 PIN (3X10) 1 Rp9.500
12 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000
13-1 23710M66R20-000 CABLE ASSY, CLUTCH RH 1 Rp195.000
13-2 23710M69R20-000 CABLE ASSY, CLUTCH RH 1 Rp95.500
14 23913M68K00-000 PIN, CLUTCH CABLE JOINT 1 Rp8.500
15 23922M75J00-000 CAP, CLUTCH CABLE JOINT LOCK 1 Rp5.500
16 09150-06001-000
SUB: 09150B06001N000		 NUT 1 Rp9.500
17 23910M66R00-000 BRACKET, CLUTCH CABLE 1 Rp18.000
18 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 2 Rp6.000
19-1 23915M66R20-000 CLAMP, CLUTCH CABLE 1 Rp6.500
19-2 23915M69R20-000 CLAMP, CLUTCH CABLE 1 Rp10.000
20 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
