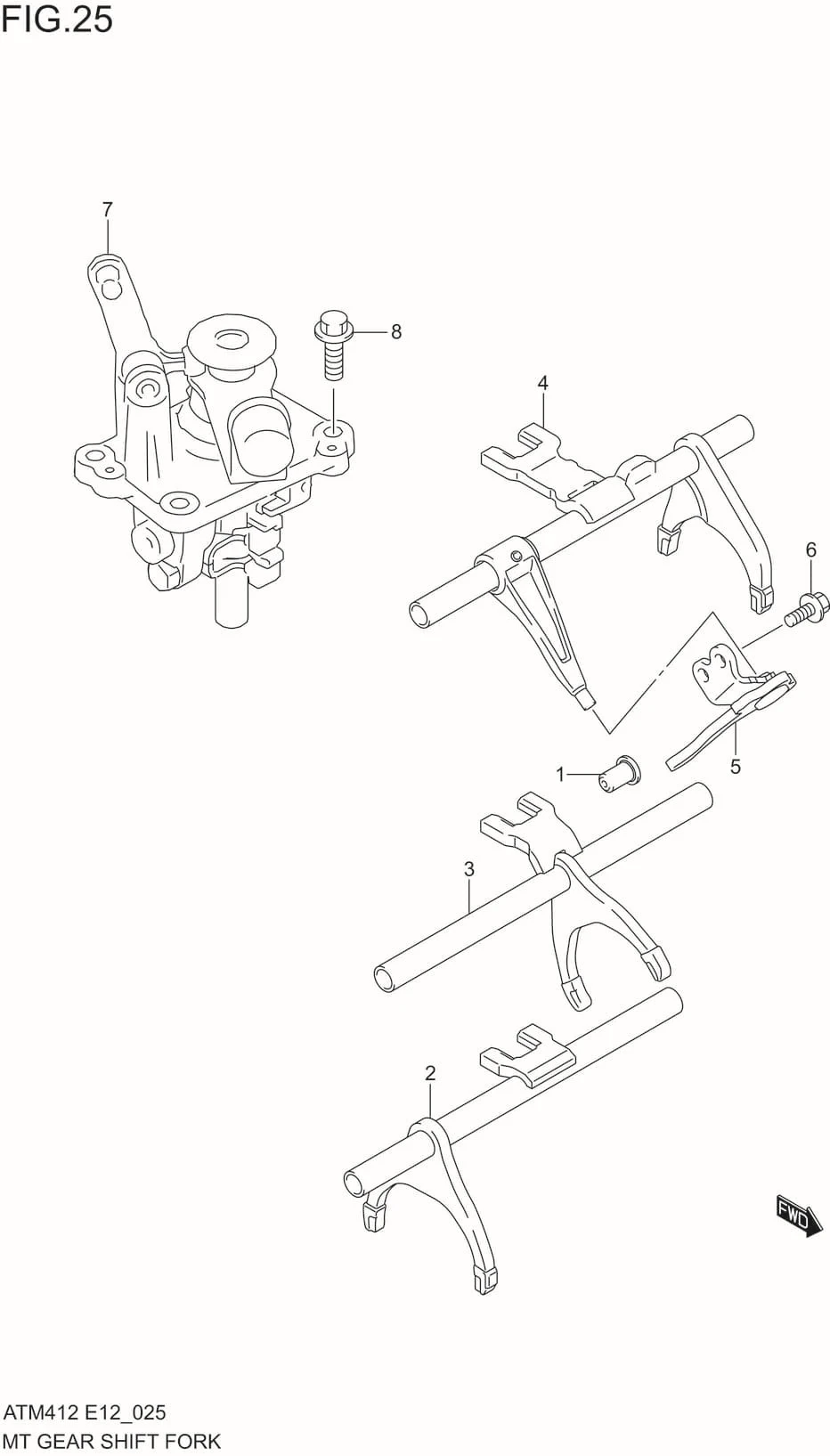

FIG.25 MT GEAR SHIFT FORK(5MT)

FIG.25 MT GEAR SHIFT FORK(5MT)
No No. Part Description Qty Price Per Pcs Remarks
1-1 25250M53M00-000 LOCATING, REV SHIFT 1 Rp11.000
1-2 25250M53M20-000 LOCATING, REV SHIFT 1 Rp20.500
2-1 25401M68P20-000 SHAFT, LOW SPEED GEAR SHF 1 Rp554.500
2-2 25401M68P20-000 SHAFT, LOW SPEED GEAR SHF 1 Rp554.500
3-1 25402M68P00-000 SHAFT, HIGH SPEED GEAR SHF 1 Rp515.000
3-2 25402M68P60-000 SHAFT, HIGH SPEED GEAR SHF 1 Rp363.500
4 25403M68PE0-000 SHAFT, 5TH & REV GR SHF 1 Rp675.000
5-1 25460M68P00-000 LEVER, REVERSE GEAR SHIFT 1 Rp61.500
5-2 25460M68P20-000 LEVER, REVERSE GEAR SHIFT 1 Rp55.000
6 09103M06317-000 BOLT(6X16) 2 Rp6.500
7 25010M68P41-000 SHAFT ASSY, GEAR SHIFT & SELECT 1 Rp1.621.500
8 01550-0825A-000 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
