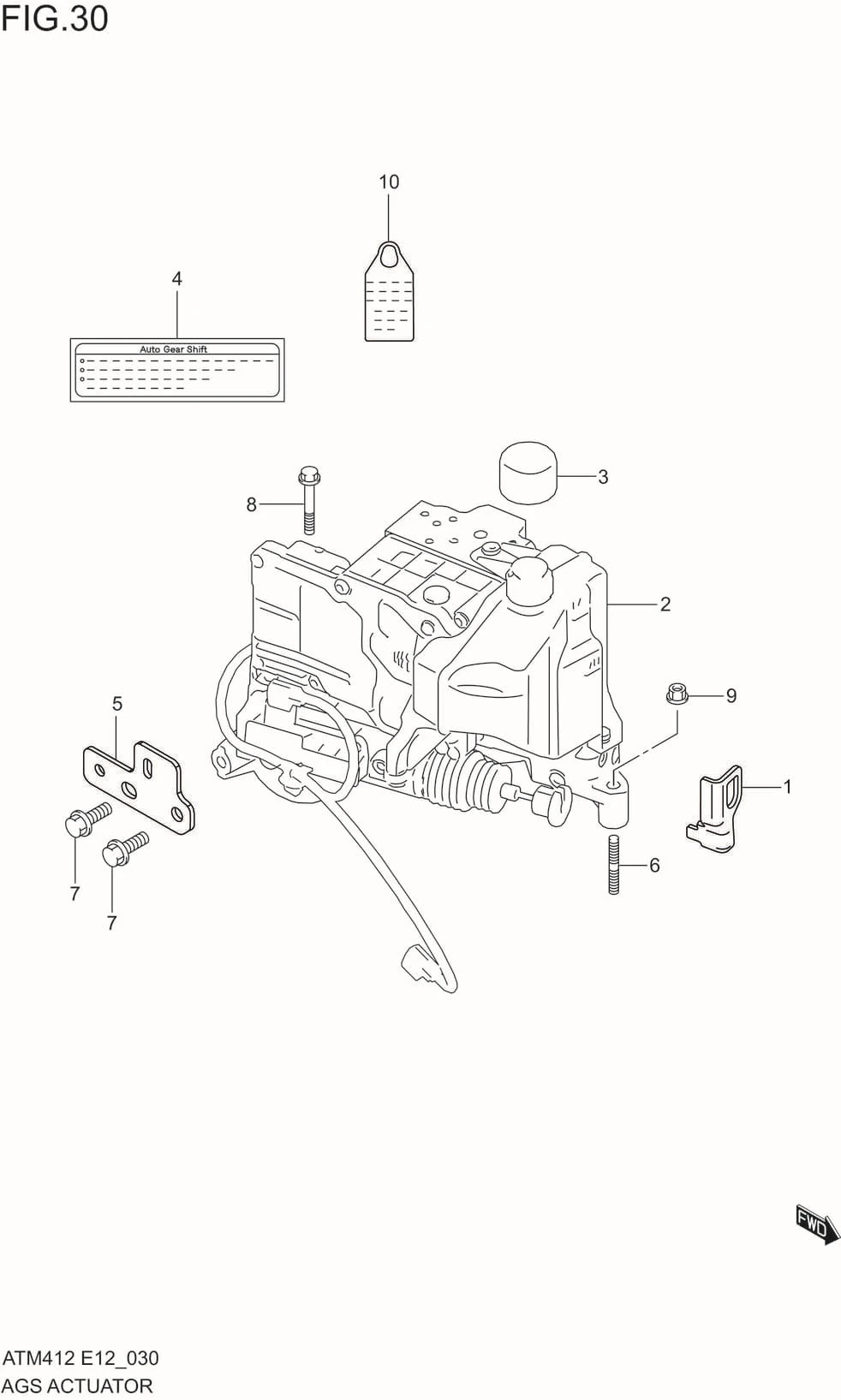

FIG.30 AGS ACTUATOR(5AGS)

FIG.30 AGS ACTUATOR(5AGS)
No No. Part Description Qty Price Per Pcs Remarks
1 24855M66RE0-000 HOOK,TRANSAXLE 1 Rp26.000
2 23100M66RF7-000
SUB: 23100M66RF5-000		 ACTUATOR ASSY 1 Rp23.271.000
3 23151M76ME0-000 COVER, BREATHER 1 Rp16.000
4 23311M76ME0-000 LABEL, AMT NOTICE 1 Rp24.000
5 24895M66RE0-000 BRACKET, ACTUATOR 1 Rp12.500
6 DISCONTINUE
SUB: 01421-0845A-000		 BOLT 2 -
7 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 2 Rp5.500
8 01550-0845A-000 BOLT 1 Rp18.000
9 08316-1008A-000 NUT 2 Rp3.500
10 23312M66RE0-000 TAG,AMT INFORMATION 1 Rp17.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
