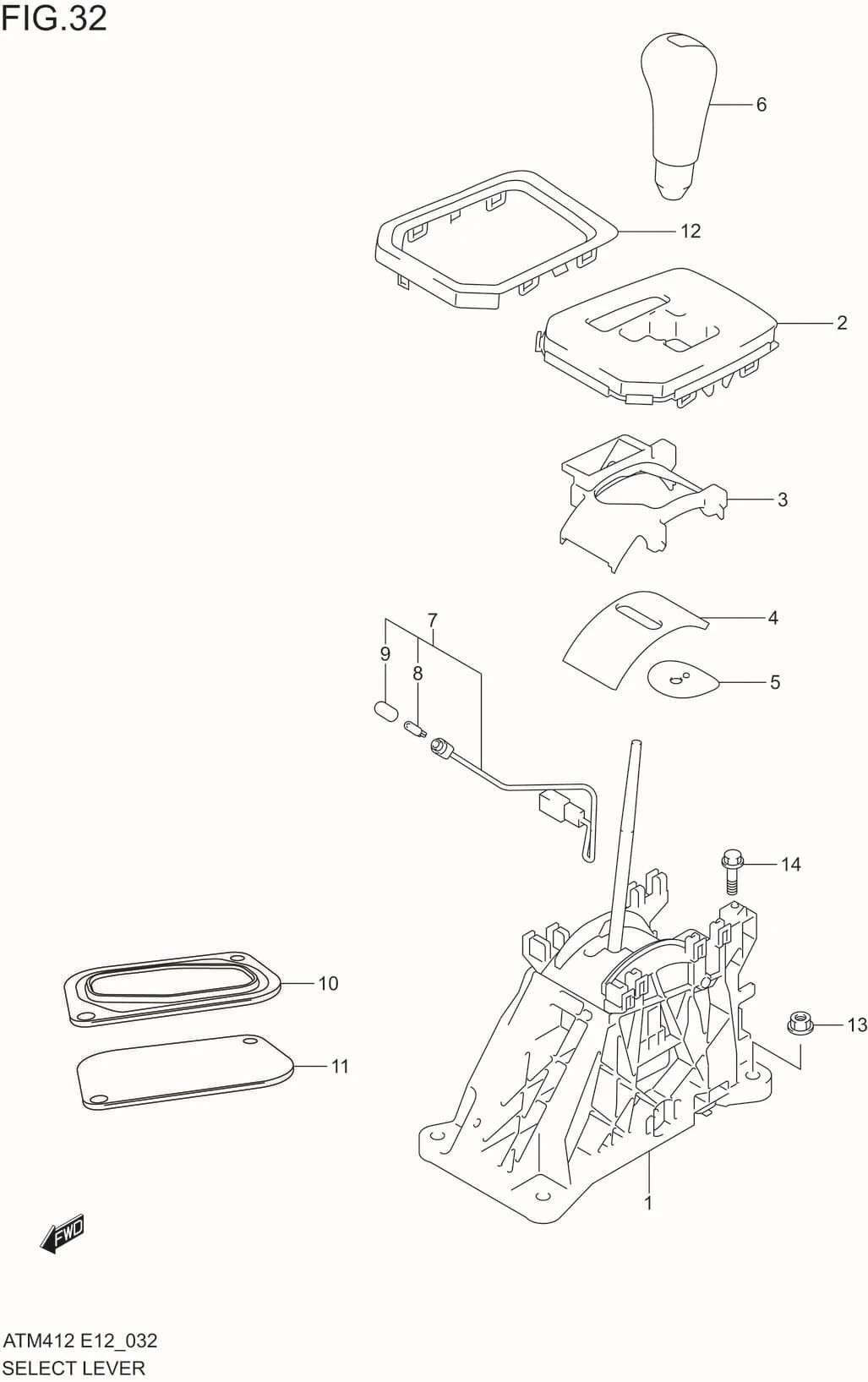

FIG.32 SELECT LEVER (5AGS)

FIG.32 SELECT LEVER (5AGS)
No No. Part Description Qty Price Per Pcs Remarks
1 28110M79JP0-000 LEVER ASSY, SELECT 1 Rp1.861.000
2 28151M62RP0-000 INDICATOR, SELECT LEVER 1 Rp78.000
3 28152M66RP0-000 PLATE, GUIDE 1 Rp206.500
4 28154M79JP0-000 COVER, UPPER 1 Rp90.500
5 28155M79JP0-000 COVER, LOWER 1 Rp60.000
6 28160M76MR1-000 KNOB ASSY, SELECT LEVER 1 Rp191.500
7 28180M62RP0-000 LAMP ASSY, ILLUM 1 Rp358.500
8 28181M81J10-000 .BULB 1 Rp31.500
9 28182M81PP0-000 .FILTER 1 Rp30.500
10 28393M66RP0-000 GROMMET, SELECT CABLE 1 Rp35.000
11 28395M66RP0-000 PLATE, SEL CABLE GROMMET 1 Rp31.500
12 75861M62R20-CF4 GARNISH, GEAR SHIFT 1 Rp510.500
13 09159-08127-000 NUT 4 Rp11.000
14 02162-0620A-000 BOLT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
