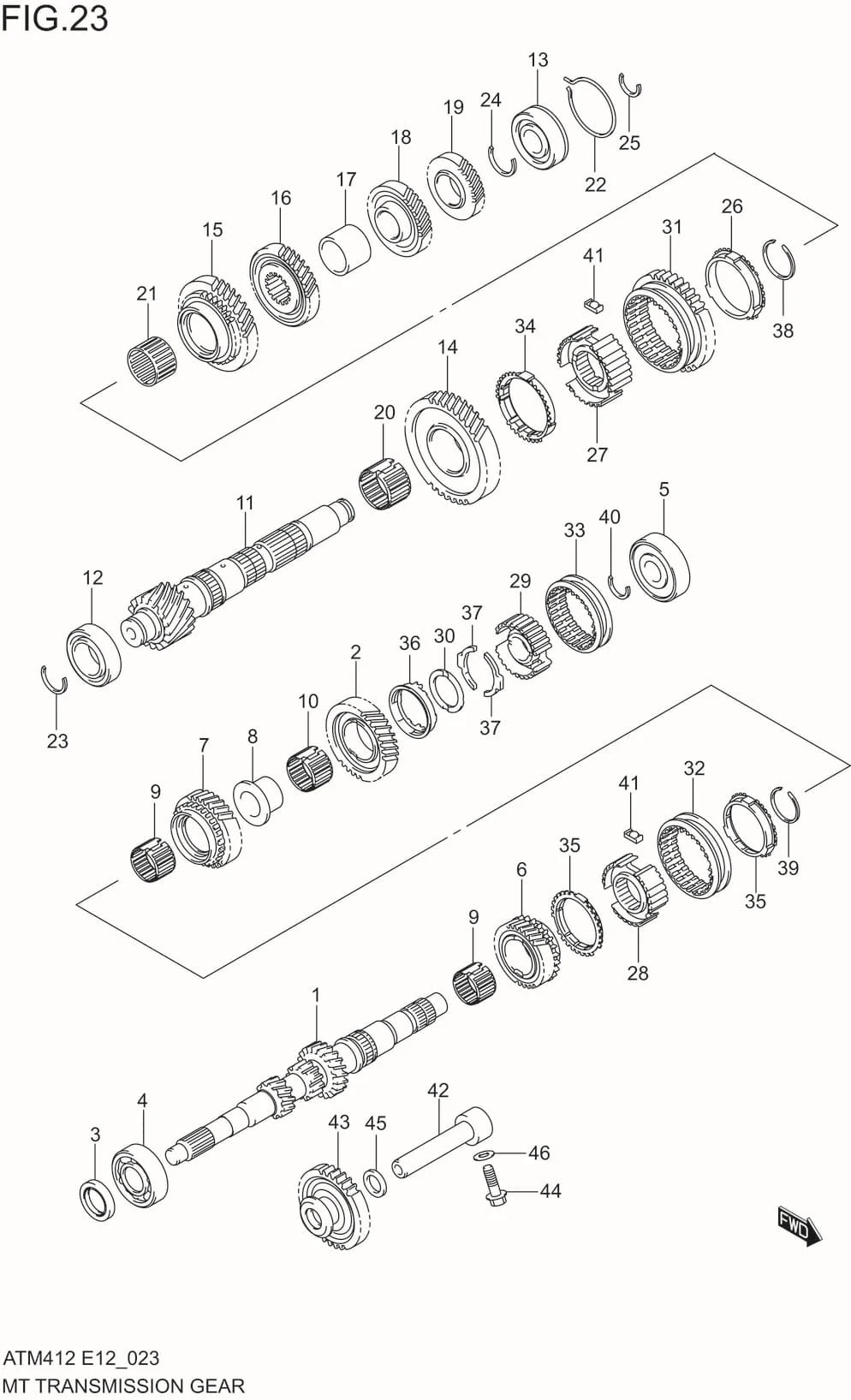

FIG.23 MT TRANSMISSION GEAR(5MT)

No	No. Part	Description	Qty	Price Per Pcs
1	24111M68P01-000 SUB: 24111M68P00-000	SHAFT, TRANSMISSION INPUT	1	Rp1.210.500
2	24114M76M60-000	GEAR, INPUT SHAFT 5TH	1	Rp685.000
3	24151M68K00-000	SEAL, INPUT SHAFT OIL	1	Rp18.000
4	24155M76M00-000	BEARING, INPUT SHAFT RH	1	Rp349.000
5	24165M76M00-000	BEARING, INPUT SHAFT LH	1	Rp210.500
6	24230M76M21-000	GEAR, INPUT SHAFT 3RD	1	Rp1.266.500
7	24240M76M21-000	GEAR, INPUT SHAFT 4TH	1	Rp1.556.500
8-1	24255M76M20-000	SPACER, INPUT SHAFT 5TH GEAR	1	Rp75.000
8-2	24255M76M20-000	SPACER, INPUT SHAFT 5TH GEAR	1	Rp75.000
9	24283M76M00-000	BEARING, 3RD & 4TH GEAR NDL	2	Rp39.500
10	24285M76M00-000	BEARING, 5TH GEAR NEEDLE	1	Rp39.500
11	24131M68P20-000	SHAFT, TRANSMISSION COUNTER	1	Rp1.265.500
12	24175M76M21-000	BEARING ASSY, COUNTERSHAFT RH	1	Rp336.000
13	24185M76M00-000	BEARING, COUNTERSHAFT LH	1	Rp336.000
14	24311M76M01-000	GEAR, COUNTERSHAFT 1ST	1	Rp780.000
15	24321M68P01-000	GEAR, COUNTERSHAFT 2ND	1	Rp695.500
16	24331M76M21-000	GEAR, COUNTERSHAFT 3RD	1	Rp428.500
17-1	24336M76M20-000	SPACER, 3RD & 4TH GEAR	1	Rp29.500
17-2	24336M76M20-000	SPACER, 3RD & 4TH GEAR	1	Rp29.500
18	24341M76M20-000	GEAR, COUNTERSHAFT 4TH	1	Rp428.500
19	24351M76M60-000	GEAR, COUNTERSHAFT 5TH	1	Rp460.000
20	24381M76M00-000	BEARING, 1ST GEAR NDL	1	Rp45.500
21	24382M76M00-000	BEARING, 2ND GEAR NDL	1	Rp45.500
22	24385M76M00-000	RING, COUNTERSHAFT BRG LH SNAP	1	Rp10.500
23-1	24391M76M20-000	CIRCLIP, COUNTERSHAFT BRG RH	1	Rp6.000
23-2	24391M76M20-000	CIRCLIP, COUNTERSHAFT BRG RH	1	Rp6.000
24-1	24392M76M00-215	CIRCLIP, CTSHFT 5TH GR (T:2.15)	0	Rp8.500
24-2	24392M76M00-220	CIRCLIP, CTSHFT 5TH GR (T:2.20)	0	Rp8.500
24-3	24392M76M00-225	CIRCLIP, CTSHFT 5TH GR (T:2.25)	0	Rp10.500
24-4	24392M76M00-230	CIRCLIP, CTSHFT 5TH GR (T:2.30)	0	Rp10.500
24-5	24392M76M00-235	CIRCLIP, CTSHFT 5TH GR (T:2.35)	0	Rp10.500
24-6	24392M76M00-240	CIRCLIP, CTSHFT 5TH GR (T:2.40)	0	Rp9.500
25-1	24393M76M00-000	CIRCLIP, COUNTERSHAFT BRG LH	1	Rp6.000
25-2	24393M76M00-000	CIRCLIP, COUNTERSHAFT BRG LH	1	Rp6.000
26	24402M76M00-000	RING, 2ND GEAR SYNC	1	Rp305.500
27	24411M67P00-000	HUB, LOW SPEED SYNC	1	Rp149.500
28-1	24412M76M00-000	HUB, HIGH SPEED SYNC	1	Rp149.000
28-2	24412M76M00-000	HUB, HIGH SPEED SYNC	1	Rp149.000
29	24413M68P00-000	HUB, 5TH SPEED SYNC	1	Rp194.500
30	24417M68P00-000	WASHER, 5TH SYNC HUB	1	Rp24.000
31	24421M76M00-000	SLEEVE, LOW SPEED SYNC	1	Rp691.500
32	24422M76M00-000	SLEEVE, HIGH SPEED SYNC	1	Rp531.500
33	24423M68P01-000	SLEEVE, 5TH SPEED SYNC	1	Rp520.000
34	24431M76M00-000	RING, 1ST GEAR SYNC	1	Rp176.000
35	24433M76M00-000	RING, HIGH SPEED GEAR SYNC	2	Rp133.500
36	24435M68P00-000	RING, 5TH GEAR SYNC	1	Rp184.000
37	24438M68P00-000	LEVER, 5TH SPEED SYNC	2	Rp138.000
38-2	24451M76M20-000	CIRCLIP, LOW SPEED SYNC HUB	1	Rp8.500
38-1	24451M76M00-000	CIRCLIP, LOW SPEED SYNC HUB	1	Rp8.000
39-1	24452M76M00-000	CIRCLIP, HIGH SPEED SYNC HUB	1	Rp7.000
39-2	24452M76M20-000	CIRCLIP, HIGH SPEED SYNC HUB	1	Rp8.000
40-1	24453M76M00-200	CIRCLIP, 5TH SYNC HUB (T2.00)	0	Rp6.000
40-2	24453M76M00-205	CIRCLIP, 5TH SYNC HUB (T:2.05)	0	Rp8.000
40-3	24453M76M00-210	CIRCLIP, 5TH SYNC HUB (T:2.10)	0	Rp8.000
40-4	24453M76M00-215	CIRCLIP, 5TH SYNC HUB (T:2.15)	0	Rp8.000
40-5	24453M76M00-220	CIRCLIP, 5TH SYNC HUB (T:2.20)	0	Rp8.000
40-6	24453M76M00-225	CIRCLIP, 5TH SYNC HUB (T:2.25)	0	Rp6.000
41	24471M76M00-000	KEY, SYNCHRONIZER	6	Rp61.500
42-1	24550M76M00-000	SHAFT, T/M REV GEAR	1	Rp67.500
42-2	24550M76M00-000	SHAFT, T/M REV GEAR	1	Rp67.500
43	24560-76MD2-000	GEAR, REVERSE IDLER	1	Rp834.000
44	24565M53M00-000	BOLT, REVERSE SHAFT	1	Rp9.500
45	09161M16012-000	WASHER (16X24X3)	1	Rp6.500
46	09168M08030-000	GASKET (8.2X17X1)	1	Rp6.500
