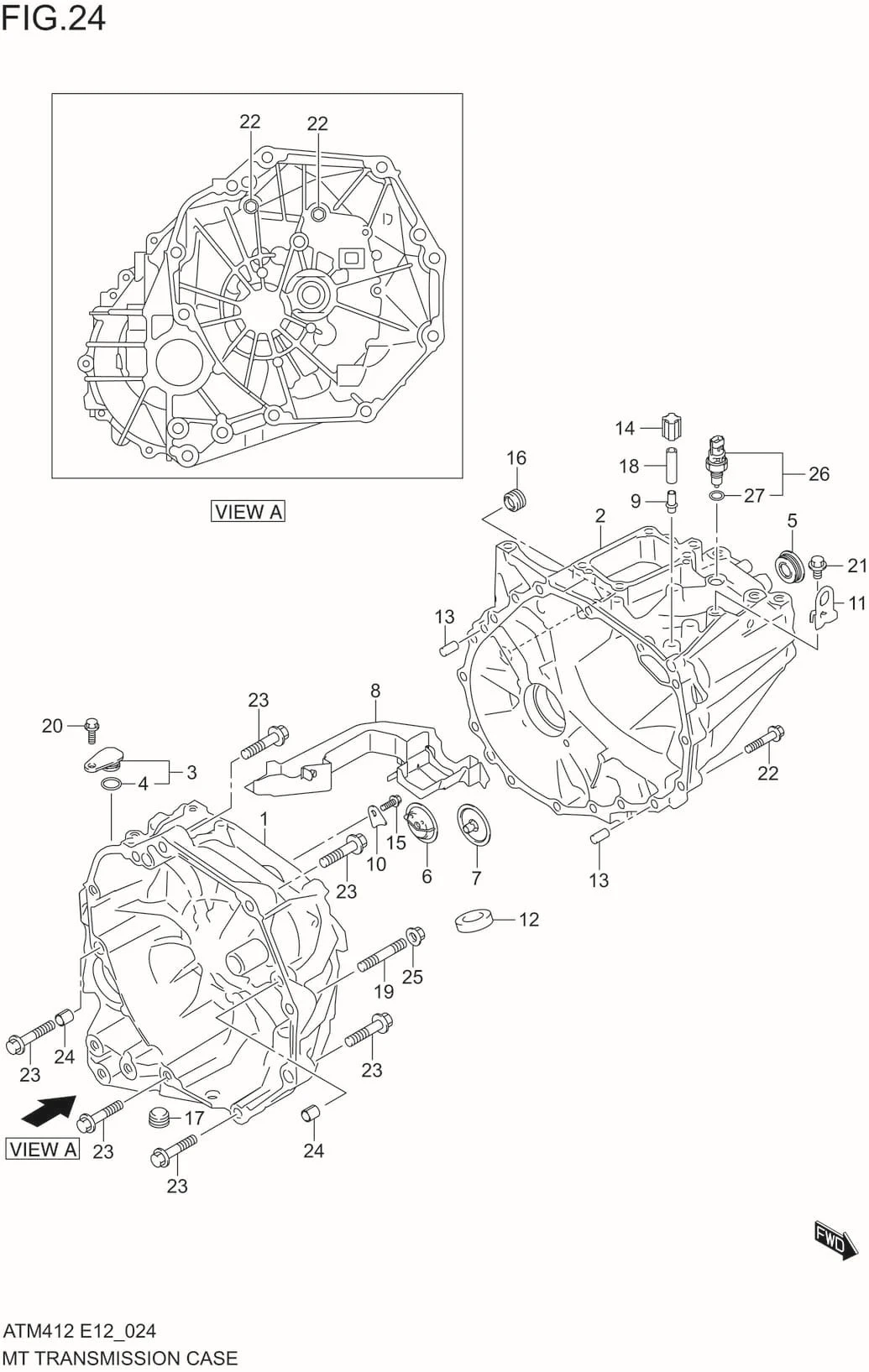

FIG.24 MT TRANSMISSION CASE(5MT)

FIG.24 MT TRANSMISSION CASE(5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 24711M66R20-000 CASE, TRANSAXLE RIGHT 1 Rp3.896.500
2 24721M66R01-000 CASE, TRANSAXLE LEFT 1 Rp4.107.500
3 24723M68K20-000 CAP, SPEEDOMETER SENSOR 1 Rp164.000
4 09280-15018-000 .O-RING, SPEED SENSOR 1 Rp40.000
5 24726M76M00-000 PLUG, TRANSAXLE CASE 1 Rp32.000
6-1 24733M76M00-000 CHANNEL, OIL COUNTERSHAFT 1 Rp11.500
6-2 24733M76M00-000 CHANNEL, OIL COUNTERSHAFT 1 Rp11.500
7 24734M76M00-000 CHANNEL, OIL INPUT SHAFT 1 Rp13.000
8-1 24811M76M00-000 GUTTER, INPUT OIL 1 Rp65.500
8-2 24811M76M00-000 GUTTER, INPUT OIL 1 Rp65.500
9 24821M79F00-000 UNION, BREATHER 1 Rp88.500
10-1 24852M76M01-000 PLATE, COUNTERSHAFT RH BRG 1 Rp7.000
10-2 24852M76M21-000 PLATE, COUNTERSHAFT RH BRG 1 Rp8.000
11 24855M68P00-000 HOOK, TRANSMISSION 1 Rp15.000
12 24861M76M00-000 MAGNET, OIL CLEANER 1 Rp31.000
13 11519M67L00-000 PIN, BLOCK & T/M CASE 2 Rp6.000
14 27991M79G00-000 PLUG, BREATHER 1 Rp35.000
15 09103M06317-000 BOLT 1 Rp6.500
16 09246M16009-000 PLUG, T/M OIL FILLER 1 Rp14.500
17 09246M16017-000 PLUG, T/M OIL DRAIN 1 Rp24.500
18-1 09352M70114-040 HOSE, BREATHER 1 Rp5.500
18-2 09352M70114-040 HOSE, BREATHER 1 Rp5.500
19 01421-1045A-000 BOLT 1 Rp29.500
20 01550-0616A-000 BOLT 1 Rp3.500
21 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000
22 01550-0840A-000
SUB: 01550B0840AN000		 BOLT 16 Rp3.500
23 01550-1050A-000 BOLT 6 Rp6.000
24 04211M13189-000 PIN 2 Rp9.000
25 08316-1010A-000 NUT 1 Rp3.500
26 37610M68K00-000 SWITCH ASSY, BACK UP LAMP 1 Rp141.000
27 09280-11002-000 .O RING (D:1.9,ID:11.4) 1 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
