New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (4AT)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

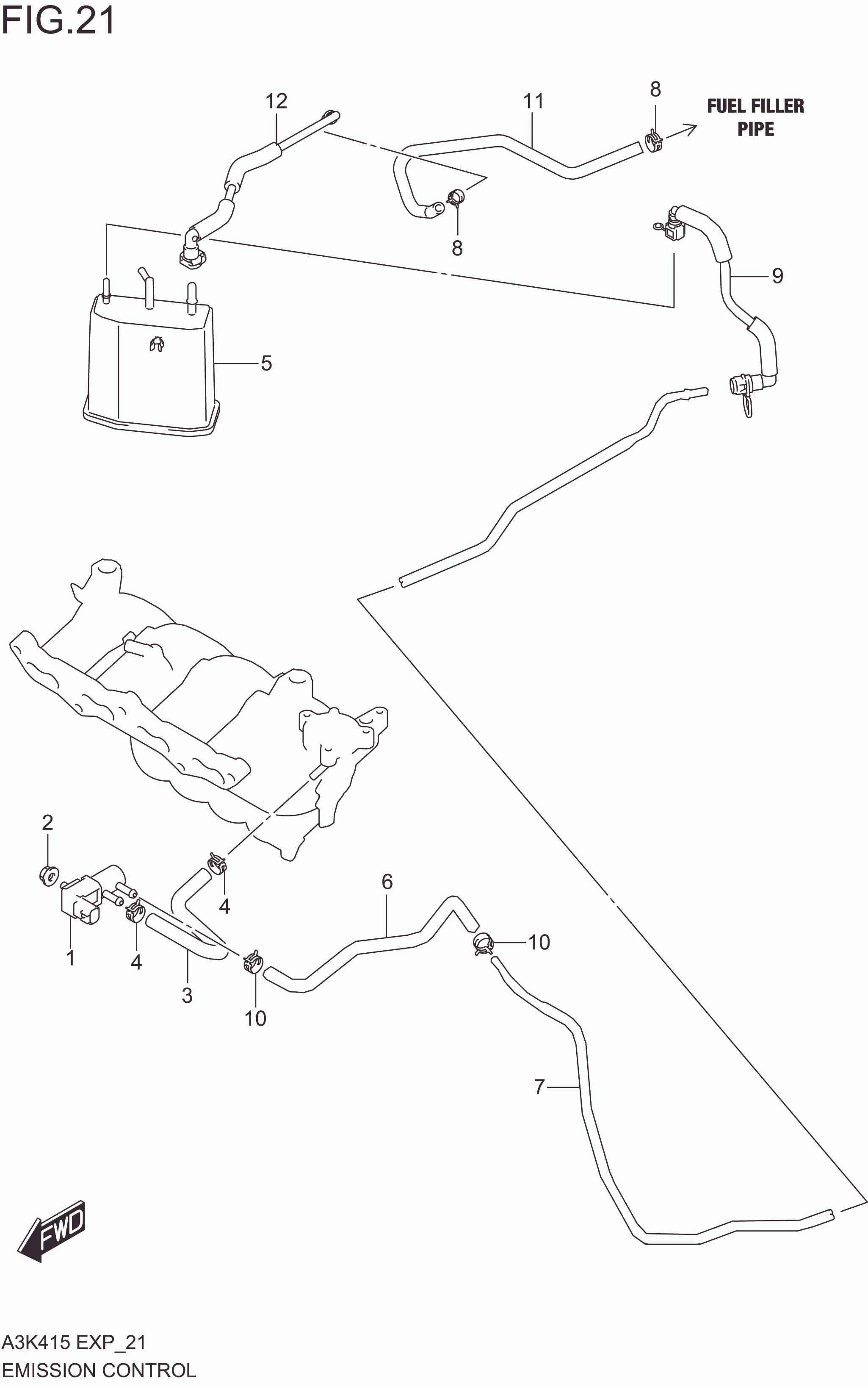

EMISSION CONTROL

EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18114M76M00-000 VALVE ASSY, DUTY FOR PURGE 1 Rp322.500
2 08316-1006A-000 NUT 1 Rp2.000
3 18564M66R00-000 HOSE, PURGE (VSV TO INMF) 1 Rp53.000
4 09401M11432-000 CLIP 2 Rp6.000
5 18560M68P00-000 CANISTER 1 Rp385.000
6 18561M55R00-000 HOSE, PURGE (PIPE TO VSV) 1 Rp45.500
7 18351M68P00-000 PIPE, PURGE (RH) 1 Rp233.000
8 09401M11432-000 CLIP 2 Rp6.000
9 18352M68P00-000 PIPE, PURGE (CSTR TO PIPE) 1 Rp265.500
10 09401M11432-000 CLIP 4 Rp6.000
11 18567M68P01-000 HOSE, CANISTER AIR SUCTION 1 Rp18.500
12 18569M68P02-000 PIPE, CSTR AIR SUCTION 1 Rp117.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
