New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (4AT)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

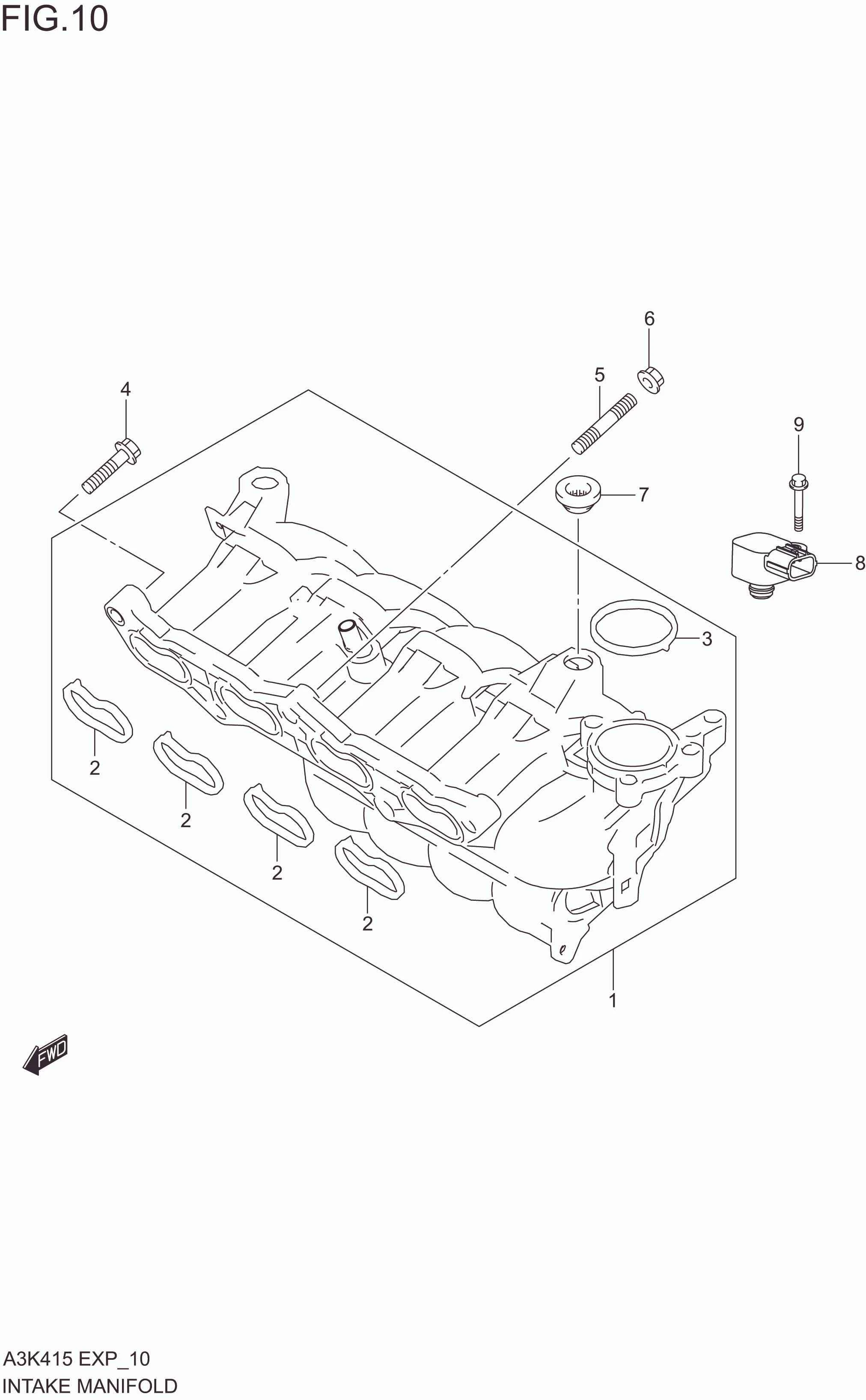

INTAKE MANIFOLD

INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110M72R00-000 MANIFOLD, INTK 1 Rp841.000
2 13118M68P00-000 .GASKET, INTAKE MANIFOLD 4 Rp25.000
3 13421M68P00-000 .GASKET, THROTTLE BODY 1 Rp45.000
4 01550-0835A-000 BOLT 3 Rp3.500
5 01421-0830A-000 STUD BOLT 2 Rp16.500
6 08316-1008A-000 NUT 2 Rp3.500
7 13723M84MB0-000 GROMMET, AIR CLEANER 2 Rp6.500
8 18590M72R00-000 SENSOR ASSY, PRESSURE 1 Rp310.000
9 09132-05066-000 SCREW 1 Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
