New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (4AT)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

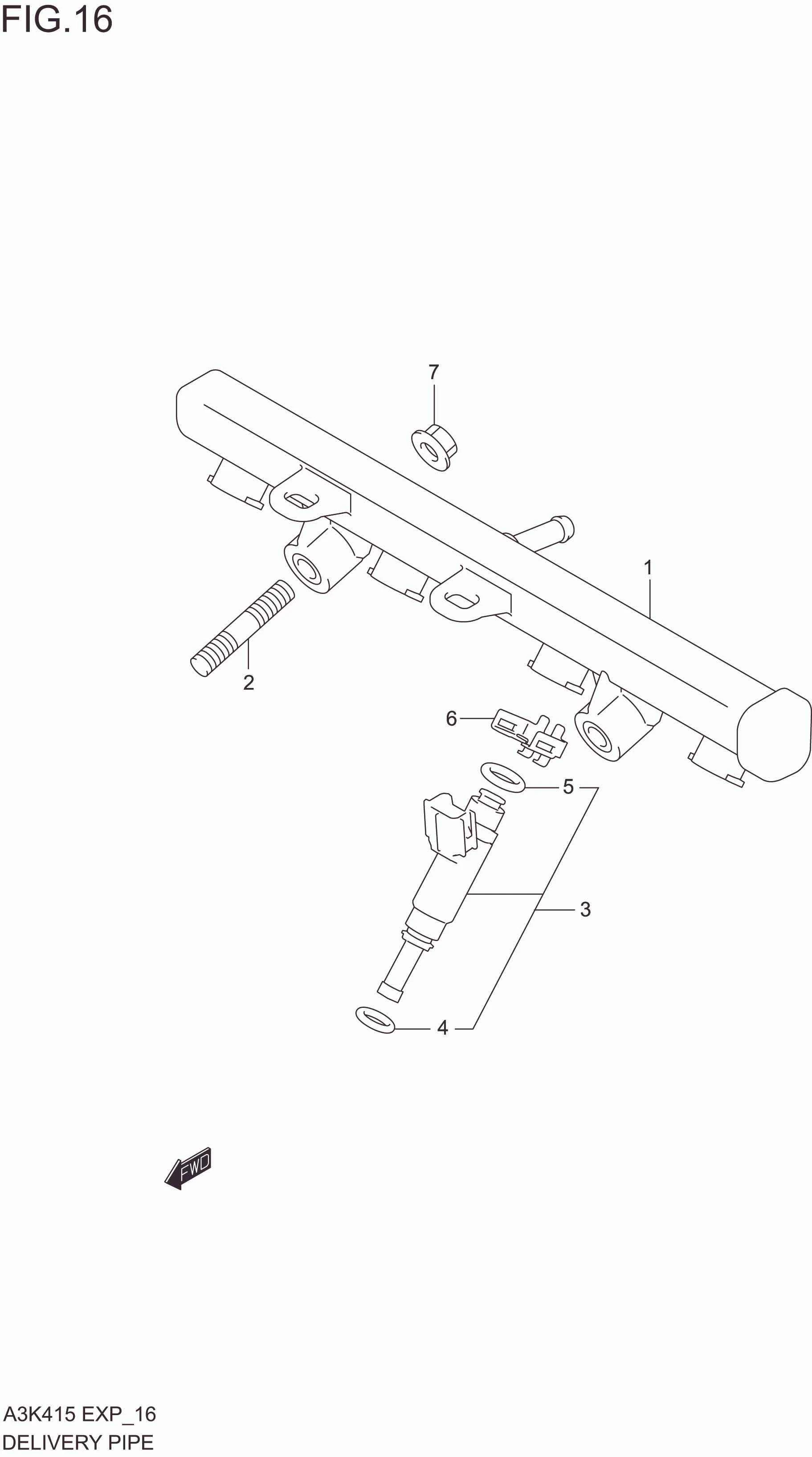

DELIVERY PIPE

DELIVERY PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 15730M68P00-000 PIPE, FUEL DELIVERY 1 Rp224.500
2 01421-0830A-000 BOLT 2 Rp16.500
3 15710M68P02-000
SUB: 15710M68P01-000		 INJECTOR ASSY, FUEL 4 Rp529.500
4 15716-68P01-000 .O RING 4 Rp48.000
5 15717M68P00-000 .O RING 4 Rp18.500
6 15715-82M00-000 CLIP, FUEL INJECTOR 4 Rp30.500
7 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
