New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (4AT)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

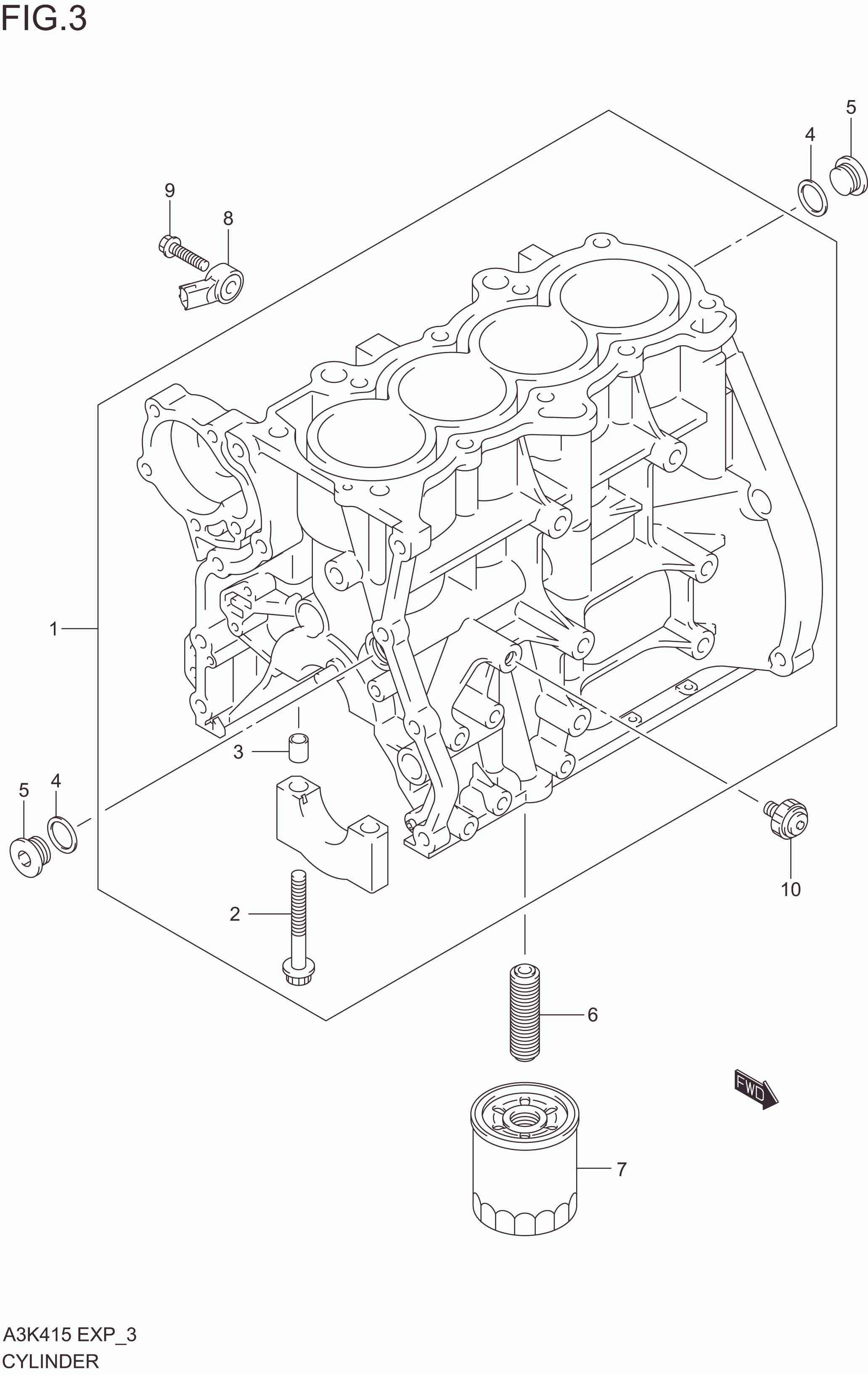

CYLINDER

CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11200M72R00-000 BLOCK ASSY, CYLINDER 1 Rp8.732.000
2 11261M58M01-000 .BOLT, CRANK BEARING CAP 10 Rp17.000
3 04211M13189-000
SUB: 04211-13189-000		 .PIN 10 Rp9.000
4 11216M68K10-000 GASKET, M18 PLUG 2 Rp8.000
5 09248-18011-000 PLUG 2 Rp38.000
6 11241-68K00-000 STAND, OIL FILTER 1 Rp15.000
7 16510-61J00-000
SUB: 16510M68K00-000		 FILTER ASSY, OIL 1 Rp37.000
8 18640M72R00-000 SENSOR ASSY, KNOCK 1 Rp157.500
9 01550-0835A-000 BOLT 1 Rp3.500
10 37820M68K00-000 SWITCH ASSY, OIL PRESSURE 1 Rp199.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
