New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (4AT)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

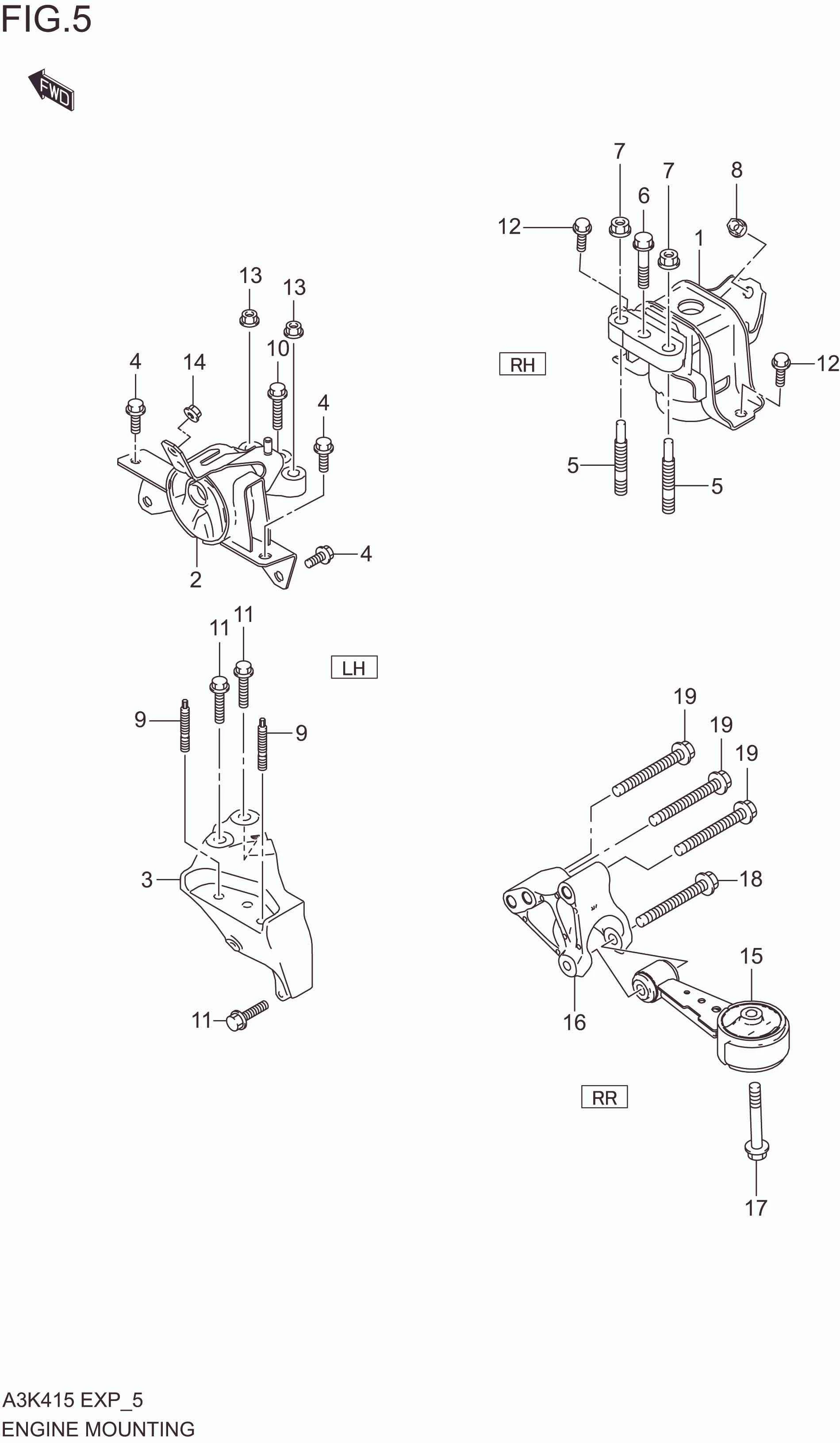

ENGINE MOUNTING (5MT)

ENGINE MOUNTING (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 11610M72R00-000 MOUNTING,ENG RH 1 Rp836.000
2 11620M72R00-000 MOUNTING,ENG LH 1 Rp624.000
3 11651M72R00-000 BRACKET,ENG LH MTG 1 Rp377.000
4 01551-1025A-000 BOLT 4 Rp29.000
5 09108-12020-000 BOLT 2 Rp14.000
6 09103-12134-000 BOLT 1 Rp30.500
7 11645-68M00-000 NUT 2 Rp25.500
8 08316-1010A-000 NUT 1 Rp3.500
9 09108-10165-000 BOLT 2 Rp32.500
10 01550-1040A-000 BOLT 1 Rp7.000
11 01550-1040A-000 BOLT 3 Rp7.000
12 01551-1025A-000 BOLT 2 Rp29.000
13 08316-1010A-000 NUT 2 Rp3.500
14 08316-1010A-000 NUT 1 Rp3.500
15 11910M72R00-000 ROD, ENG RR TRQ 1 Rp351.000
16 11941M72R00-000 BRACKET, ENG RR TRQ ROD 1 Rp360.500
17 09113-12009-000 BOLT 1 Rp51.500
18 09103-12138-000 BOLT 1 Rp34.500
19 01550-1280C-000 BOLT 3 Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
