New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE GASKETSCYLINDER HEADCYLINDEROIL PANENGINE MOUNTING (5MT)ENGINE MOUNTING (4AT)CRANK SHAFTCAM SHAFT/VALVECAM CHAININTAKE MANIFOLDTHROTTLE BODYAIR CLEANEREXHAUST MANIFOLDMUFFLERFUEL PUMPDELIVERY PIPEOIL PUMPWATER PUMPRADIATORWATER HOSEEMISSION CONTROLLABEL

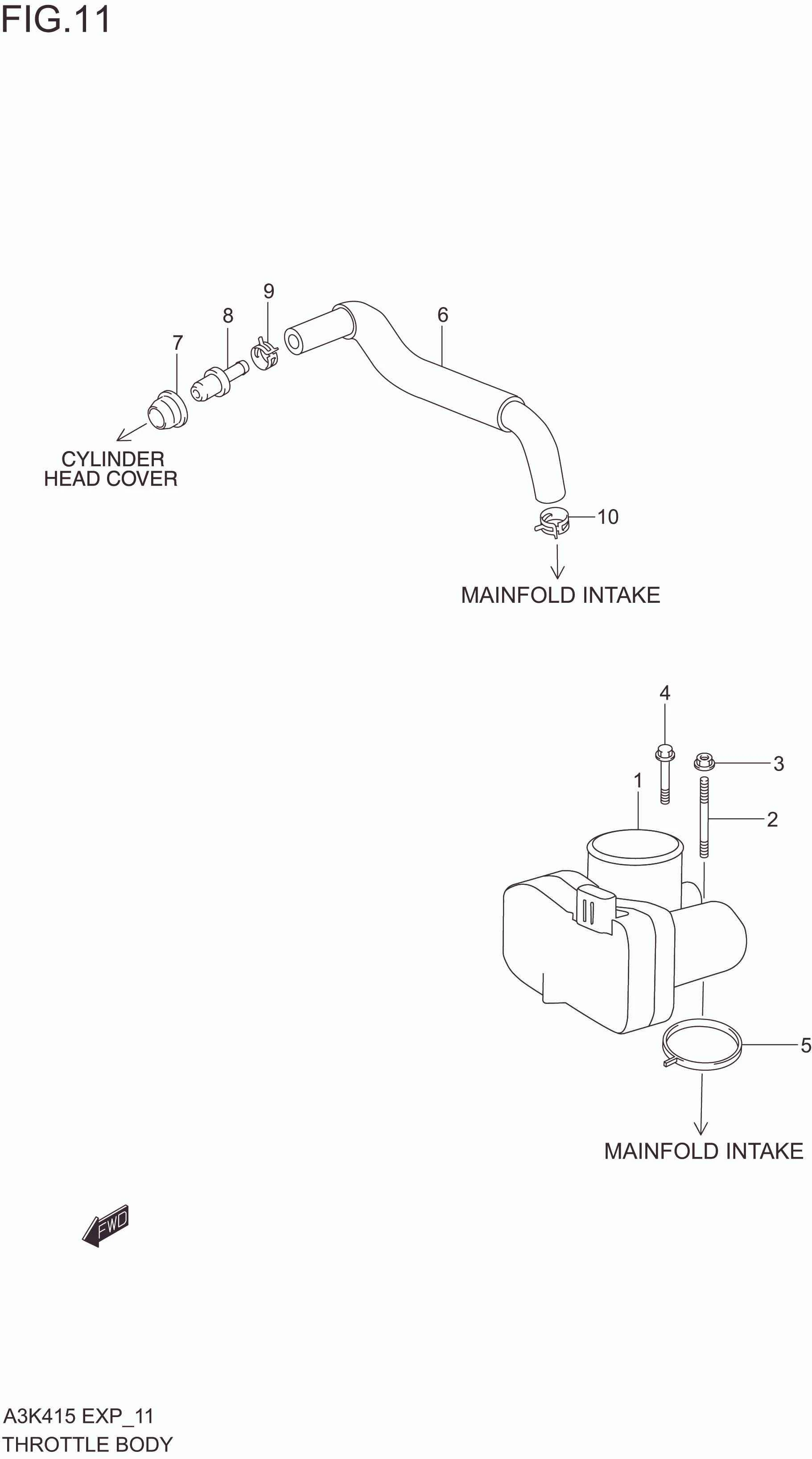

THROTTLE BODY

THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400M72R00-000 BODY ASSY,THROTTLE 1 Rp1.746.500
2 01421-0620A-000 STUD BOLT 2 Rp3.500
3 08316-1006A-000 NUT 3 Rp2.000
4 01550-0645A-000 BOLT 1 Rp13.000
5 13421M68P00-000 GASKET,THROTTLE BODY 1 Rp45.000
6 11193M72R00-000 HOSE, PCV 1 Rp23.500
7 11198M79F00-000 SEAL, PCV VALVE 1 Rp16.500
8 18118-60M00-000 VALVE, PCV 1 Rp177.000
9 09401M13L04-000 CLIP 1 Rp6.000
10 09401M15418-000 CLIP 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
