Preview Engine Transmission Electrical Suspension Body

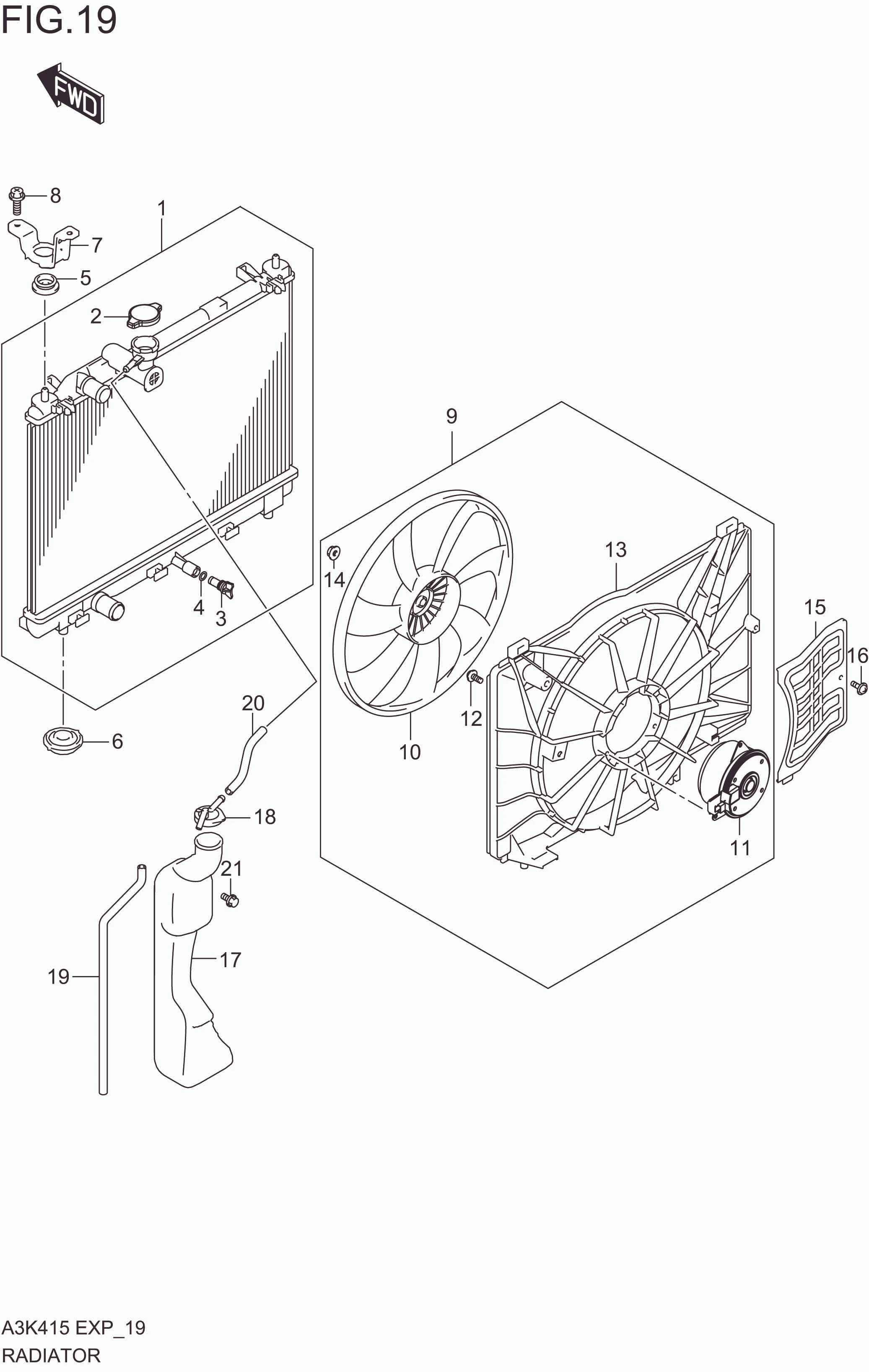

No	No. Part	Description	Qty	Price Per Pcs
1-2	17700M68P20-000	RADIATOR ASSY	1	Rp2.175.000
1-1	17700M68P00-000	RADIATOR ASSY	1	Rp1.615.500
2	17920M76M00-000	.CAP, RADIATOR	1	Rp335.000
3	17751-61A00-000	.PLUG, DRAIN	1	Rp13.000
4	17759-82K00-000	.O-RING	1	Rp7.500
5	17879M76M00-000	MOUNT,RADIATOR SUPPORT UPPER	2	Rp18.500
6	17878M68P00-000	MOUNT,RADIATOR SUPPORT LOWER	2	Rp17.000
7	17861M68P00-000	BRACKET,RDTR SUPPORT UPPER	2	Rp22.000
8	09122-76003-000	BOLT	4	Rp15.000
9	17100M54T00-000	FAN ASSY, ENG COOLING	1	Rp2.391.500
10	17111M68P00-000	.FAN COOLING	1	Rp178.000
11	17120M54T00-000	.MOTOR ASSY, FAN	1	Rp1.789.500
12	17129-56F00-000	.SCREW	3	Rp24.000
13	17760M54T00-000	.SHROUD FAN	1	Rp307.500
14	08316M26056-000	.NUT	1	Rp14.500
15	17191M54T00-000	PLATE, HEAT SHIELD	1	Rp118.500
16	17129-50F10-000	SCREW (M4)	1	Rp21.500
17	17931-68P00-000	TANK,WATER RESERVE	1	Rp62.000
18	17932-76G00-000	CAP,WTR RSVR TANK	1	Rp5.500
19	17934M68P00-000	HOSE,RSV TANK	1	Rp25.000
20	09352M70L03-120	HOSE,RDTR TO RSV TANK	1	Rp8.500
21	01550-0612A-000	BOLT	2	Rp3.500
