Preview Engine Transmission Electrical Suspension Body

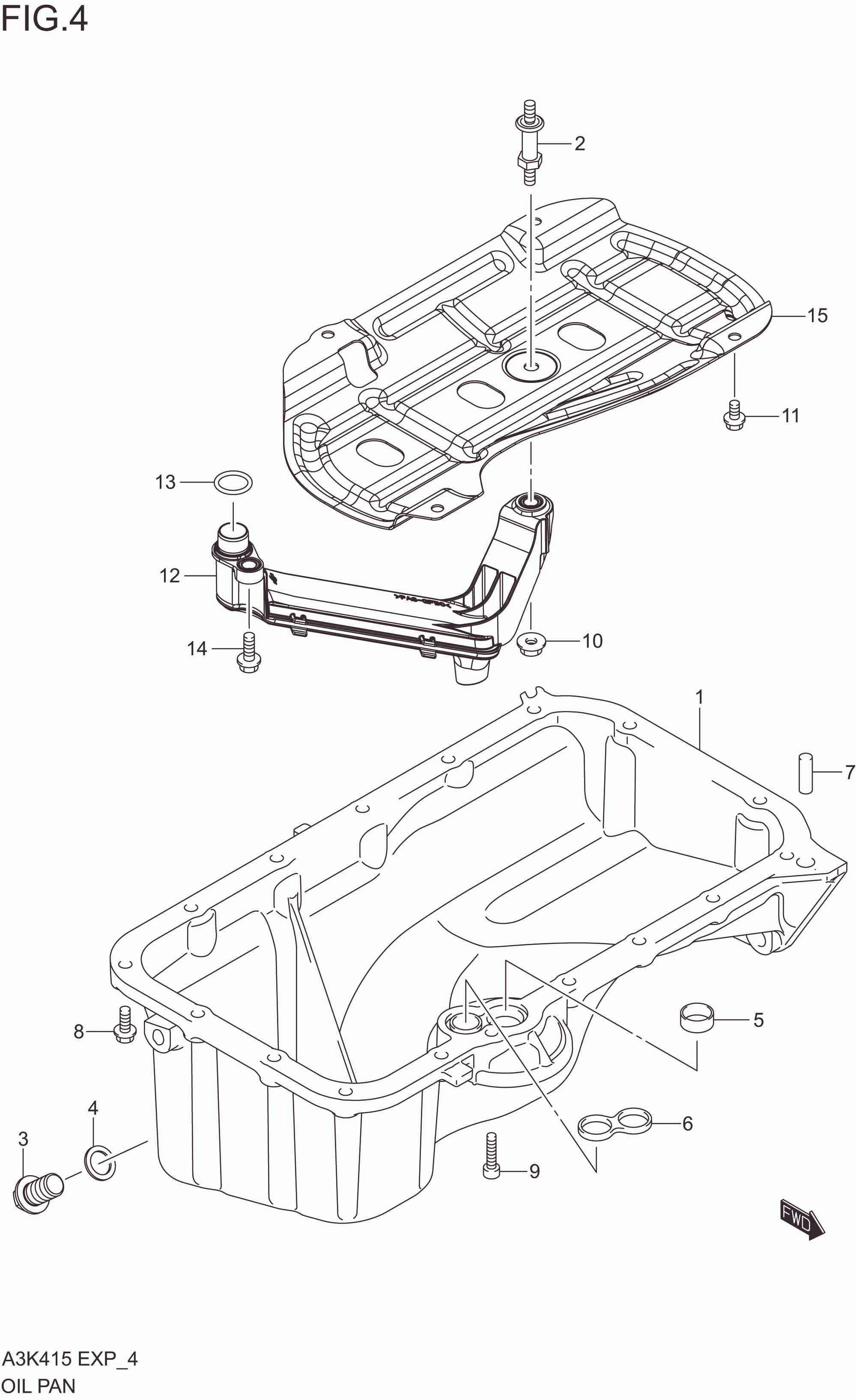

No	No. Part	Description	Qty	Price Per Pcs
1	11511M72R00-000	PAN, OIL	1	Rp1.093.000
2	11515-51K03-000	STUD BOLT	1	Rp54.000
3	11518-63J20-000 SUB: 11518M63J30-000	PLUG, OIL DRAIN	1	Rp29.500
4	09168-14015-000	GASKET(14X20X1.5)	1	Rp7.500
5	16114M69J00-000 SUB: 16114-69J00-000	PIN, OIL PAN DOWEL	1	Rp14.500
6	11518M68K00-000	O RING	1	Rp6.500
7	11519M67L00-000	PIN	1	Rp6.000
8	DISCONTINUE SUB: 01550-0625A-000	BOLT	16	-
9	07130-0625A-000	BOLT, OIL PAN NO.2	1	Rp3.500
10	08316-1006A-000	NUT	1	Rp2.000
11	01550-0612A-000	BOLT	4	Rp3.500
12	16520M68P00-000	STRAINER, OIL PUMP	1	Rp134.000
13	16119M68K00-000	O RING(D:2.5,ID:16.6)	1	Rp7.000
14	07120-0620A-000	BOLT	1	Rp22.000
15	11541M73K00-000 SUB: 11541-73K10-000	PLATE, OIL PAN BAFFLE	1	Rp86.500
