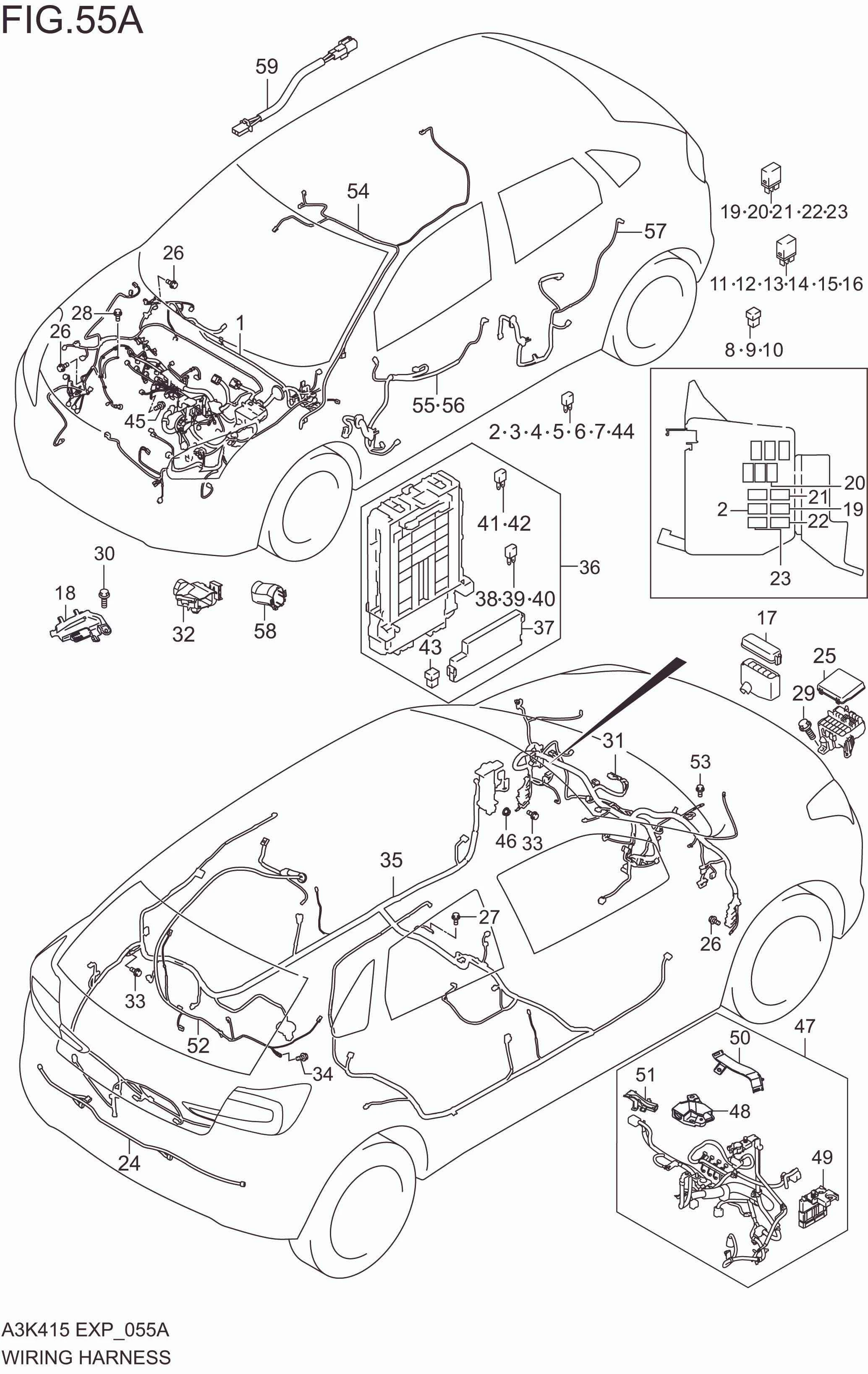

| 1-2 |
36610M55TC0-000 |
HARNESS ASSY, MAIN 4AT:W/TUNER |
1 |
Rp8.626.000 |
| |
| 1-1 |
36610M55TB0-000 |
HARNESS ASSY, MAIN 5MT:W/TUNER |
1 |
Rp7.467.500 |
| |
| 1-4 |
36610M55TK0-000 |
HARNESS ASSY, MAIN 4AT:N/TUNER |
1 |
Rp9.283.000 |
| |
| 1-3 |
36610M55TJ0-000 |
HARNESS ASSY, MAIN 5MT:N/TUNER |
1 |
Rp8.009.000 |
| |
| 2 |
09481-05501-000 |
.FUSE (5A) |
0 |
Rp17.000 |
| |
| 3 |
09481-10504-000 |
.FUSE (10A) |
0 |
Rp12.500 |
| |
| 4 |
09481-15504-000 |
.FUSE (15A) |
0 |
Rp13.000 |
| |
| 5 |
09481-20504-000 |
.FUSE (20A) |
0 |
Rp14.500 |
| |
| 6 |
09481-25504-000 |
.FUSE (25A) |
0 |
Rp17.500 |
| |
| 7 |
09481-30504-000 |
.FUSE (30A) |
0 |
Rp15.000 |
| |
| 8 |
09481-30403-000 |
.FUSE (30A) |
0 |
Rp41.000 |
| |
| 9 |
09481M40403-000 |
.FUSE (40A) |
0 |
Rp22.500 |
| |
| 10 |
09481-50403-000 |
.FUSE (50A) |
0 |
Rp51.000 |
| |
| 11 |
38860M76M00-000 |
.RELAY ASSY, RDTR |
3 |
Rp58.500 |
| |
| 12 |
38860M76M00-000 |
.RELAY ASSY, HORN |
1 |
Rp58.500 |
| |
| 13 |
38860M76M00-000 |
.RELAY, HTR |
1 |
Rp58.500 |
| |
| 14 |
38860M76M00-000 |
.RELAY ASSY, ST |
1 |
Rp58.500 |
| |
| 15 |
38860M76M00-000 |
.RELAY, HEAD LAMP |
2 |
Rp58.500 |
| |
| 16 |
38860M76M00-000 |
.RELAY, HEAD LAMP |
1 |
Rp58.500 |
| |
| 17 |
36717M68P11-000 |
.COVER, SUB RELAY BOX |
1 |
Rp82.500 |
| |
| 18 |
36677M68P10-000 |
PROTECTOR, MAIN HARN |
1 |
Rp63.500 |
| |
| 19 |
38860M76M00-000 |
RELAY ASSY, STARTER 2 |
1 |
Rp58.500 |
| |
| 20-1 |
38860M76M00-000 |
RELAY ASSY, MAIN VENDOR-1 |
1 |
Rp58.500 |
| |
| 20-2 |
38860M76M00-000
SUB: 38860M79F01-000 |
RELAY ASSY, MAIN VENDOR-2 |
1 |
Rp58.500 |
| |
| 21-1 |
38860M76M00-000 |
RELAY, A/C VENDOR-1 |
1 |
Rp58.500 |
| |
| 21-2 |
38860M76M00-000
SUB: 38860M79F01-000 |
RELAY, A/C VENDOR-2 |
1 |
Rp58.500 |
| |
| 22-1 |
38860M76M00-000 |
RELAY ASSY, FUEL PUMP VENDOR-1 |
1 |
Rp58.500 |
| |
| 22-2 |
38860M76M00-000
SUB: 38860M79F01-000 |
RELAY ASSY, FUEL PUMP VENDOR-2 |
1 |
Rp58.500 |
| |
| 23-1 |
38860M76M00-000 |
RELAY, FR FOG VENDOR-1:W/FRONT FOG LAMP |
1 |
Rp58.500 |
| |
| 23-2 |
38860M76M00-000
SUB: 38860M79F01-000 |
RELAY, FR FOG VENDOR-2:W/FRONT FOG LAMP |
1 |
Rp58.500 |
| |
| 24 |
36843M55T10-000 |
WIRE, RR BUMPER W/KLS_ST |
1 |
Rp622.000 |
| |
| 25 |
36717M55T01-000
SUB: 36717M55T00-000 |
COVER, RELAY BOX |
1 |
Rp82.500 |
| |
| 26 |
09115-06005-000 |
BOLT |
4 |
Rp14.000 |
| |
| 27 |
01550M0612A-000 |
BOLT |
1 |
Rp5.000 |
| |
| 28 |
09115-06005-000 |
BOLT |
1 |
Rp14.000 |
| |
| 29 |
01551-0616C-000 |
BOLT |
2 |
Rp14.500 |
| |
| 30 |
01551-0616C-000 |
BOLT |
1 |
Rp14.500 |
| |
| 31-2 |
36620M55T60-000 |
HARNESS ASSY, I/P GLX:W/TUNER |
1 |
Rp6.663.000 |
| |
| 31-1 |
36620M55TB0-000 |
HARNESS ASSY, I/P GLX:N/TUNER |
1 |
Rp7.120.000 |
| |
| 32 |
36677M55T20-000 |
.PROTECTOR, INSTPN HARN |
1 |
Rp35.000 |
| |
| 33 |
09115-06005-000 |
BOLT |
2 |
Rp14.000 |
| |
| 34 |
02162-0612A-000 |
BOLT |
1 |
Rp11.000 |
| |
| 35 |
36630M55T40-000 |
HARNESS ASSY, FLOOR |
1 |
Rp4.768.000 |
| |
| 36 |
36710M55T00-000 |
BOX ASSY, JUNCTION |
1 |
Rp2.404.000 |
| |
| 37 |
36699M55T00-000 |
.COVER, FUSE |
1 |
Rp22.000 |
| |
| 38 |
09481-05501-000 |
.FUSE (5A) |
0 |
Rp17.000 |
| |
| 39 |
09481-10504-000 |
.FUSE (10A) |
0 |
Rp12.500 |
| |
| 40 |
09481-15504-000 |
.FUSE (15A) |
0 |
Rp13.000 |
| |
| 41 |
09481-20504-000 |
.FUSE (20A) |
0 |
Rp14.500 |
| |
| 42 |
09481-25504-000 |
.FUSE (25A) |
0 |
Rp17.500 |
| |
| 43 |
09481-30403-000 |
.FUSE (30A) |
0 |
Rp41.000 |
| |
| 44 |
38860M76M00-000 |
RELAY ASSY, DEF MIRROR |
1 |
Rp58.500 |
| |
| 45 |
09115-06005-000 |
BOLT |
2 |
Rp14.000 |
| |
| 46 |
09159-08127-000
SUB: 09159M08153-000 |
NUT |
2 |
Rp11.000 |
| |
| 47-1 |
36650M55T50-000 |
HARNESS ASSY, ENG 5MT |
1 |
Rp4.590.500 |
| |
| 47-2 |
36650M55T60-000 |
HARNESS ASSY, ENG 4AT |
1 |
Rp5.054.500 |
| |
| 48 |
36677M68P50-000 |
.PROTECTOR, ENG HARN |
1 |
Rp60.500 |
| |
| 49 |
36739M66R00-000 |
.FUSE, BATTERY |
1 |
Rp338.500 |
| |
| 50 |
36677M68P20-000 |
.PROTECTOR, ENG HARN MT 5MT |
1 |
Rp97.000 |
| |
| 51 |
36677M68P40-000 |
.PROTECTOR, ENG HARN |
1 |
Rp84.000 |
| |
| 52-1 |
36680M55T10-000 |
HARNESS ASSY, BACK DOOR N/CAMERA |
1 |
Rp524.000 |
| |
| 52-2 |
36680M55T30-000 |
HARNESS ASSY, BACK DOOR W/ALL DIRECTIONAL CAM |
1 |
Rp722.000 |
| |
| 53 |
09115-06005-000 |
BOLT (6X16) |
1 |
Rp14.000 |
| |
| 54-1 |
36820M55T50-000 |
WIRE, ROOF GLX:N/TUNER |
1 |
Rp406.000 |
| |
| 54-2 |
36820M55T60-000 |
WIRE, ROOF GLX:W/TUNER |
1 |
Rp401.000 |
| |
| 55-1 |
36756M55T50-000 |
WIRE, DR DOOR GLX:N/TUNER |
1 |
Rp1.425.000 |
| |
| 55-2 |
36756M55T30-000 |
WIRE, DR DOOR GLX:W/TUNER |
1 |
Rp1.584.500 |
| |
| 56-1 |
36757M55T20-000 |
WIRE, SUB DOOR GLX:N/TUNER |
1 |
Rp898.000 |
| |
| 56-2 |
36757M55T30-000 |
WIRE, SUB DOOR GLX:W/TUNER |
1 |
Rp1.089.500 |
| |
| 57 |
36751M55T10-000 |
WIRE, REAR DOOR |
2 |
Rp425.000 |
| |
| 58 |
36759M55T00-000 |
PROTECTOR, DOOR HARN |
2 |
Rp56.000 |
| |
| 59 |
36691M55T00-000 |
WIRE, A/B |
1 |
Rp284.500 |
| |
