New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETER(N/SEGMENTED LCD DISPLAY)HEADLAMP(W/LED)FRONT FOG LAMPREAR LAMPROOM LAMPENGINE HARNESS BRACKETWIRING HARNESSELECTRICAL CONTROLLOCK SETFRONT WINDOW WIPER WINDOW WASHERREAR WINDOW WIPERAUDIOWIRING HARNESS (SOP 2023)AUDIO(W/DISPLAY AUDIO:9 INCH) SOP 2023

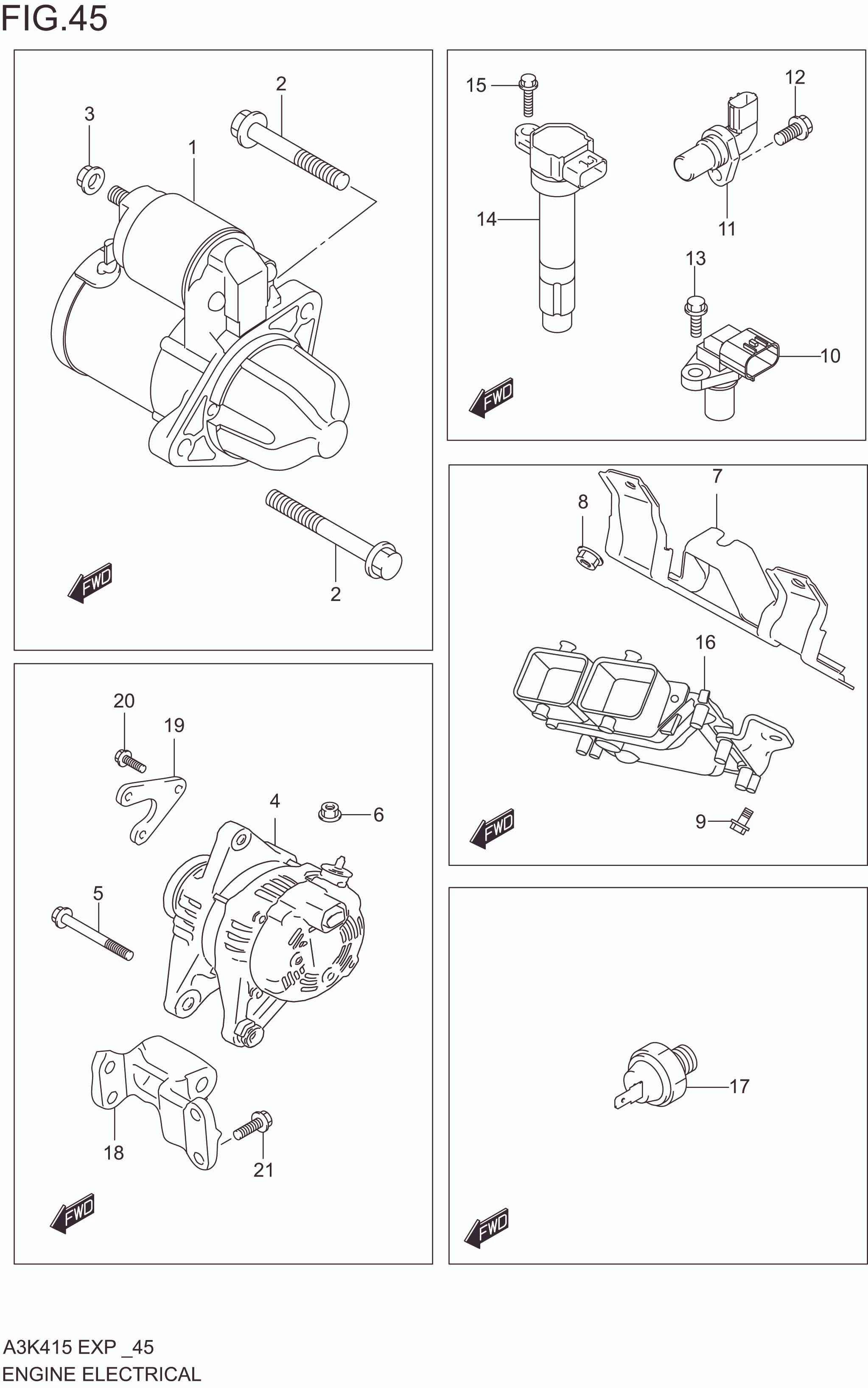

ENGINE ELECTRICAL

ENGINE ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31100M72R00-000 MOTOR ASSY, STARTING 1 Rp3.197.500
2 01550-1060A-000 BOLT 2 Rp5.500
3 08316-1008A-000 NUT 1 Rp3.500
4 31400M72R02-000
SUB: 31400M72R01-000		 GENERATOR ASSY 1 Rp6.894.000
5 01550-1085A-000 BOLT 1 Rp7.000
6 08316-1008A-000 NUT 1 Rp3.500
7 33924M68P00-000 BRACKET, EPI CONT 1 Rp47.500
8 09159M06112-000 NUT 3 Rp6.500
9 02162-0612A-000 BOLT 2 Rp11.000
10 33220M53M00-000 SENSOR ASSY, CAM POSITION 1 Rp883.500
11 33220M68P00-000 SENSOR ASSY, CRANK POSITION 1 Rp505.500
12 09103M06317-000 BOLT 1 Rp6.500
13 01550-0616A-000 BOLT 1 Rp3.500
14 33400M68P12-000
SUB: 33400M68P11-000		 COIL ASSY, IGNITION 4 Rp675.000
15 01560-0625B-000 BOLT 4 Rp23.000
16-1 33920M55TA0-000 CONTROLLER ASSY, EPI 1 Rp3.398.000
16-2 33920M55TB0-000 CONTROLLER ASSY, EPI 1 Rp3.388.000
17 37820M68K00-000 SWITCH ASSY, OIL PRESSURE 1 Rp199.500
18 11551M66R00-000 BRACKET, GENERATOR 1 Rp228.000
19 11561M68PA0-000 ARM, GENERATOR 1 Rp28.500
20 11564-68P00-000 BOLT 1 Rp23.500
21 01550-0825A-000 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
