New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETER(N/SEGMENTED LCD DISPLAY)HEADLAMP(W/LED)FRONT FOG LAMPREAR LAMPROOM LAMPENGINE HARNESS BRACKETWIRING HARNESSELECTRICAL CONTROLLOCK SETFRONT WINDOW WIPER WINDOW WASHERREAR WINDOW WIPERAUDIOWIRING HARNESS (SOP 2023)AUDIO(W/DISPLAY AUDIO:9 INCH) SOP 2023

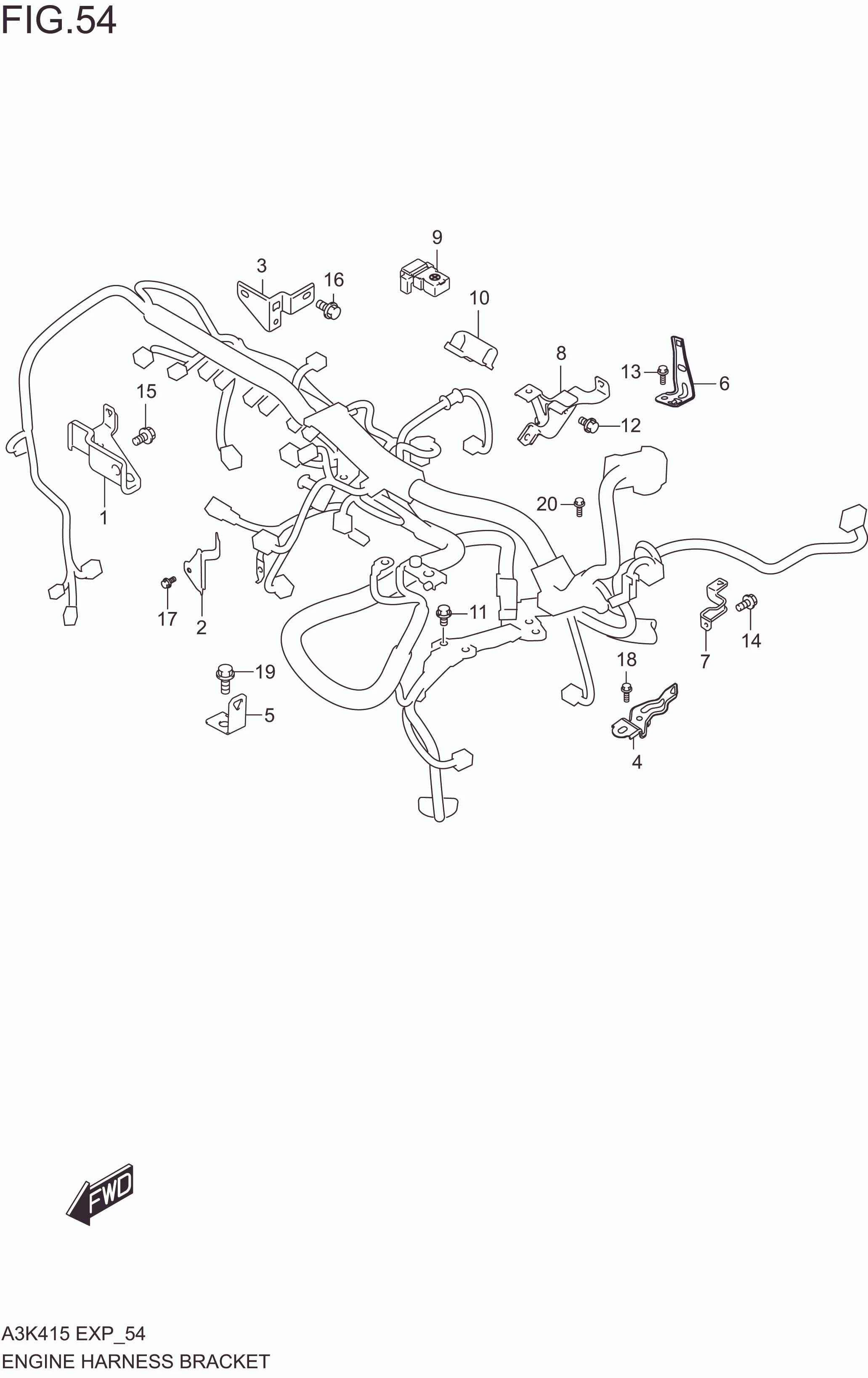

ENGINE HARNESS BRACKET

ENGINE HARNESS BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 36651-51K00-000 BRACKET, ENG HARN T/M 1 Rp15.000
2 36651M72R80-000 BRACKET, ENG HARN MT 1 Rp12.000
3 36651M61MB0-000 BRACKET, ENG HARN 1 Rp12.500
4 36651-72R10-000 BRACKET, ENG HARN MT 1 Rp16.000
5 36651M68K00-000 BRACKET, ENG HARN AT 1 Rp10.000
6 36652M68P00-000 BRACKET, ENG HARN BODY 1 Rp9.500
7 36653M68P80-000 BRACKET, ENG HARN 1 Rp8.500
8 36653M62R00-000 BRACKET, ENG HARN PROTECTOR 1 Rp40.000
9 36694-68K10-000 COVER, BTRY TERMINAL 1 Rp98.000
10 36997M68P00-000 COVER, TERMINAL 1 Rp9.500
11 01550-0612A-000 BOLT 1 Rp3.500
12 01550-0616A-000 BOLT 1 Rp3.500
13 01550-0616A-000 BOLT 1 Rp3.500
14 01550-0612A-000 BOLT 1 Rp3.500
15 01550-0612A-000 BOLT 1 Rp3.500
16 01550-0612A-000 BOLT 1 Rp3.500
17 01550-0612A-000 BOLT 1 Rp3.500
18 01550-0612A-000 BOLT 1 Rp3.500
19 01550-0816A-000 BOLT 1 Rp6.000
20 02162-0612A-000 BOLT 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
