New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETER(N/SEGMENTED LCD DISPLAY)HEADLAMP(W/LED)FRONT FOG LAMPREAR LAMPROOM LAMPENGINE HARNESS BRACKETWIRING HARNESSELECTRICAL CONTROLLOCK SETFRONT WINDOW WIPER WINDOW WASHERREAR WINDOW WIPERAUDIOWIRING HARNESS (SOP 2023)AUDIO(W/DISPLAY AUDIO:9 INCH) SOP 2023

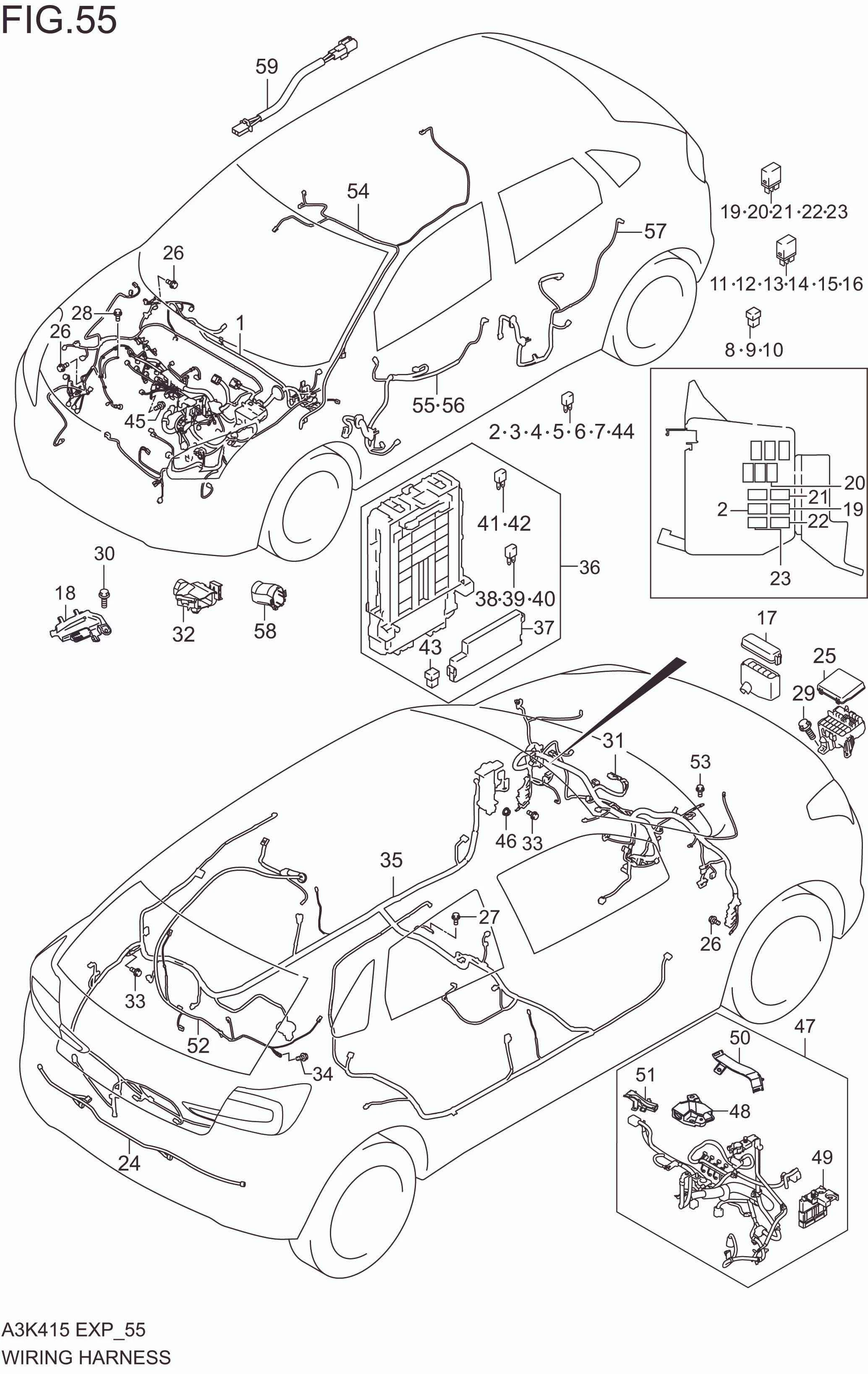

WIRING HARNESS

WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1-2 36610M55TK0-000 HARNESS ASSY, MAIN 4AT 1 Rp9.283.000
1-1 36610M55TJ0-000 HARNESS ASSY, MAIN 5MT 1 Rp8.009.000
2 09481-05501-000 .FUSE (5A) 0 Rp17.000
3 09481-10504-000 .FUSE (10A) 0 Rp12.500
4 09481-15504-000 .FUSE (15A) 0 Rp13.000
5 09481-20504-000 .FUSE (20A) 0 Rp14.500
6 09481-25504-000 .FUSE (25A) 0 Rp17.500
7 09481-30504-000 .FUSE (30A) 0 Rp15.000
8 09481-30403-000 .FUSE (30A) 0 Rp41.000
9 09481-40403-000 .FUSE (40A) 0 Rp51.500
10 09481-50403-000 .FUSE (50A) 0 Rp51.000
11 38860M76M00-000 .RELAY ASSY, RDTR 3 Rp58.500
12 38860M76M00-000 .RELAY ASSY, HORN 1 Rp58.500
13 38860M76M00-000 .RELAY, HTR 1 Rp58.500
14 38860M76M00-000 .RELAY ASSY, ST 1 Rp58.500
15 38860M76M00-000 .RELAY, HEAD LAMP 2 Rp58.500
16 38860M76M00-000 .RELAY, HEAD LAMP 1 Rp58.500
17 36717M68P11-000 .COVER, SUB RELAY BOX 1 Rp82.500
18 36677M68P10-000 PROTECTOR, MAIN HARN 1 Rp63.500
19 38860M76M00-000 RELAY ASSY, STARTER 2 1 Rp58.500
20-1 38860M76M00-000 RELAY ASSY, MAIN 1 Rp58.500
20-2 38860M76M00-000
SUB: 38860M79F01-000		 RELAY ASSY, MAIN 1 Rp58.500
21-1 38860M76M00-000 RELAY, A/C 1 Rp58.500
21-2 38860M76M00-000
SUB: 38860M79F01-000		 RELAY, A/C 1 Rp58.500
22-1 38860M76M00-000 RELAY ASSY, FUEL PUMP 1 Rp58.500
22-2 38860M76M00-000
SUB: 38860M79F01-000		 RELAY ASSY, FUEL PUMP 1 Rp58.500
23-1 38860M76M00-000 RELAY, FR FOG 1 Rp58.500
23-2 38860M76M00-000
SUB: 38860M79F01-000		 RELAY, FR FOG 1 Rp58.500
24 36843M55T10-000 WIRE, RR BUMPER 1 Rp622.000
25 36717M55T01-000
SUB: 36717M55T00-000		 COVER, RELAY BOX 1 Rp82.500
26 09115-06005-000 BOLT 4 Rp14.000
27 01550-0612A-000 BOLT 1 Rp3.500
28 09115-06005-000 BOLT 1 Rp14.000
29 01551-0616C-000 BOLT 2 Rp14.500
30 01551-0616C-000 BOLT 1 Rp14.500
31 36620M55TB0-000 HARNESS ASSY, I/P 1 Rp7.120.000
32 36677M55T20-000 .PROTECTOR, INSTPN HARN 1 Rp35.000
33 09115-06005-000 BOLT 2 Rp14.000
34 02162-0612A-000 BOLT 1 Rp11.000
35 36630M55T40-000 HARNESS ASSY, FLOOR 1 Rp4.768.000
36 36710M55T00-000 BOX ASSY, JUNCTION 1 Rp2.404.000
37 36699M55T00-000 .COVER, FUSE 1 Rp22.000
38 09481-05501-000 .FUSE (5A) 0 Rp17.000
39 09481-10504-000 .FUSE (10A) 0 Rp12.500
40 09481-15504-000 .FUSE (15A) 0 Rp13.000
41 09481-20504-000 .FUSE (20A) 0 Rp14.500
42 09481-25504-000 .FUSE (25A) 0 Rp17.500
43 09481-30403-000 .FUSE (30A) 0 Rp41.000
44 38860M76M00-000 RELAY ASSY, DEF MIRROR 1 Rp58.500
45 09115-06005-000 BOLT 2 Rp14.000
46 09159-08127-000
SUB: 09159M08153-000		 NUT 2 Rp11.000
47-1 36650M55T50-000 HARNESS ASSY, ENG 1 Rp4.590.500
47-2 36650M55T60-000 HARNESS ASSY, ENG 1 Rp5.054.500
48 36677M68P50-000 .PROTECTOR, ENG HARN 1 Rp60.500
49 36739M66R00-000 .FUSE, BATTERY 1 Rp338.500
50 36677M68P20-000 .PROTECTOR, ENG HARN MT 1 Rp97.000
51 36677M68P40-000 .PROTECTOR, ENG HARN 1 Rp84.000
52 36680M55T10-000 HARNESS ASSY, BACK DOOR 1 Rp524.000
53 09115-06005-000 BOLT (6X16) 1 Rp14.000
54 36820M55T50-000 WIRE, ROOF 1 Rp406.000
55 36756M55T50-000 WIRE, DR DOOR 1 Rp1.425.000
56 36757M55T20-000 WIRE, SUB DOOR 1 Rp898.000
57 36751M55T10-000 WIRE, REAR DOOR 2 Rp425.000
58 36759M55T00-000 PROTECTOR, DOOR HARN 2 Rp56.000
59 36691M55T00-000 WIRE, A/B 1 Rp284.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
