New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETER(N/SEGMENTED LCD DISPLAY)HEADLAMP(W/LED)FRONT FOG LAMPREAR LAMPROOM LAMPENGINE HARNESS BRACKETWIRING HARNESSELECTRICAL CONTROLLOCK SETFRONT WINDOW WIPER WINDOW WASHERREAR WINDOW WIPERAUDIOWIRING HARNESS (SOP 2023)AUDIO(W/DISPLAY AUDIO:9 INCH) SOP 2023

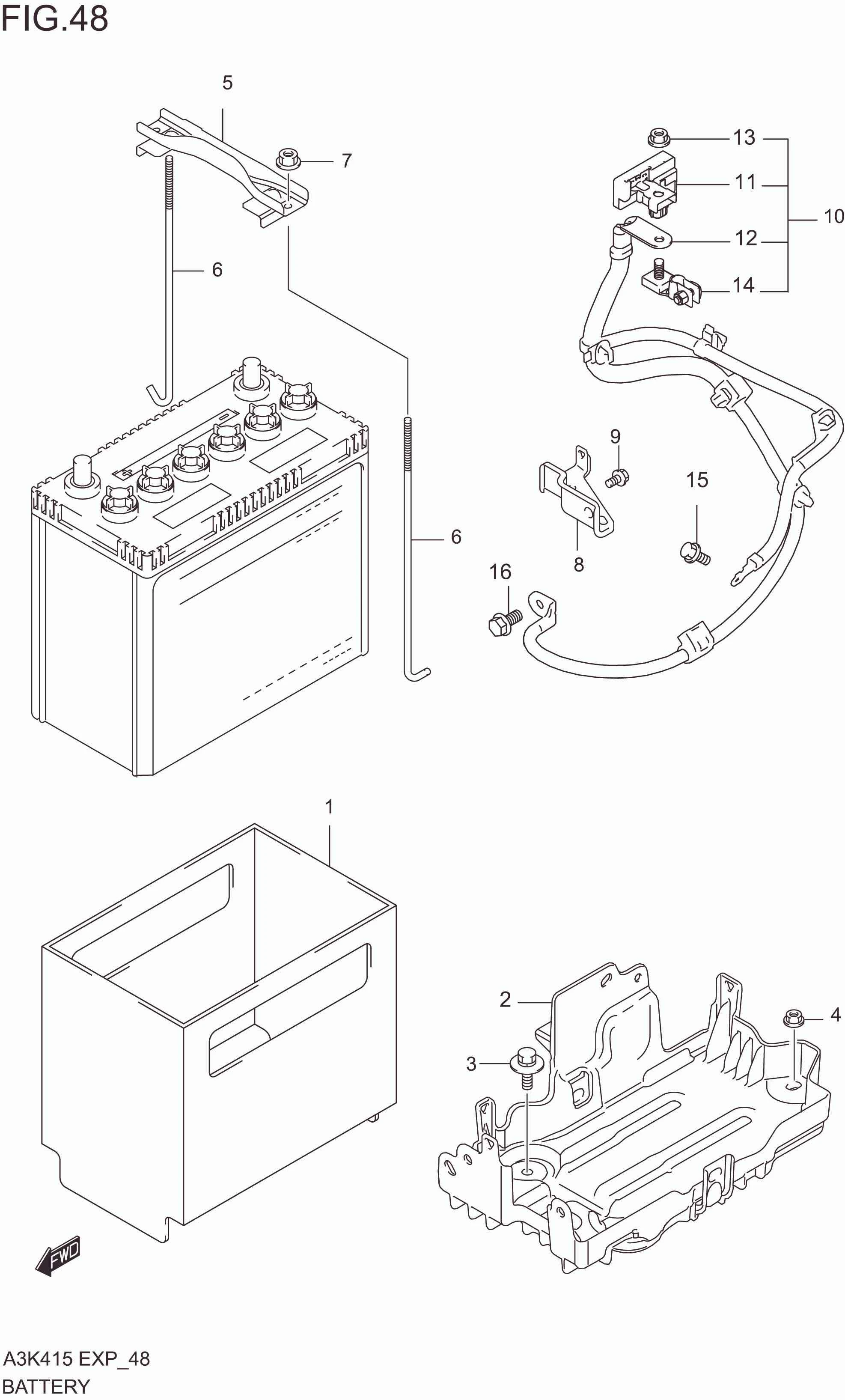

BATTERY

BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 33690M60M00-000 COVER, BATTERY 1 Rp43.500
2 72520M55R10-000 TRAY, BATTERY 1 Rp192.500
3 09118-08166-000 BOLT 2 Rp30.500
4 09159M08152-000 NUT 1 Rp14.000
5 72510M59S00-000 BAND, BATTERY 1 Rp37.000
6 72531M55T00-000 BOLT, BATTERY 2 Rp22.500
7 08316-1006A-000 NUT 2 Rp2.000
8 36651-51K00-000 BRACKET, ENG HARN T/M 1 Rp15.000
9 01550-0816A-000 BOLT 1 Rp6.000
10-1 33880M55T10-000 CABLE SET, BTRY GND 1 Rp657.500
10-2 33880M55T20-000 CABLE SET, BTRY GND 1 Rp657.500
11 32810M68P00-000 .SENSOR ASSY, CURRENT 1 Rp464.000
12-1 33850M55T10-000 .CABLE, BTRY GND 1 Rp686.500
12-2 33850M55T20-000 .CABLE, BTRY GND 1 Rp686.500
13 33887-71L00-000 .NUT 1 Rp23.500
14 33886-71L00-000 .TERMINAL 1 Rp97.000 9 COLOR:A8D
15 09115-06005-000 BOLT 1 Rp14.000 9 COLOR:CC7
16 01550-0816A-000 BOLT 1 Rp6.000 9 COLOR:CC8

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
