New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETER(N/SEGMENTED LCD DISPLAY)HEADLAMP(W/LED)FRONT FOG LAMPREAR LAMPROOM LAMPENGINE HARNESS BRACKETWIRING HARNESSELECTRICAL CONTROLLOCK SETFRONT WINDOW WIPER WINDOW WASHERREAR WINDOW WIPERAUDIOWIRING HARNESS (SOP 2023)AUDIO(W/DISPLAY AUDIO:9 INCH) SOP 2023

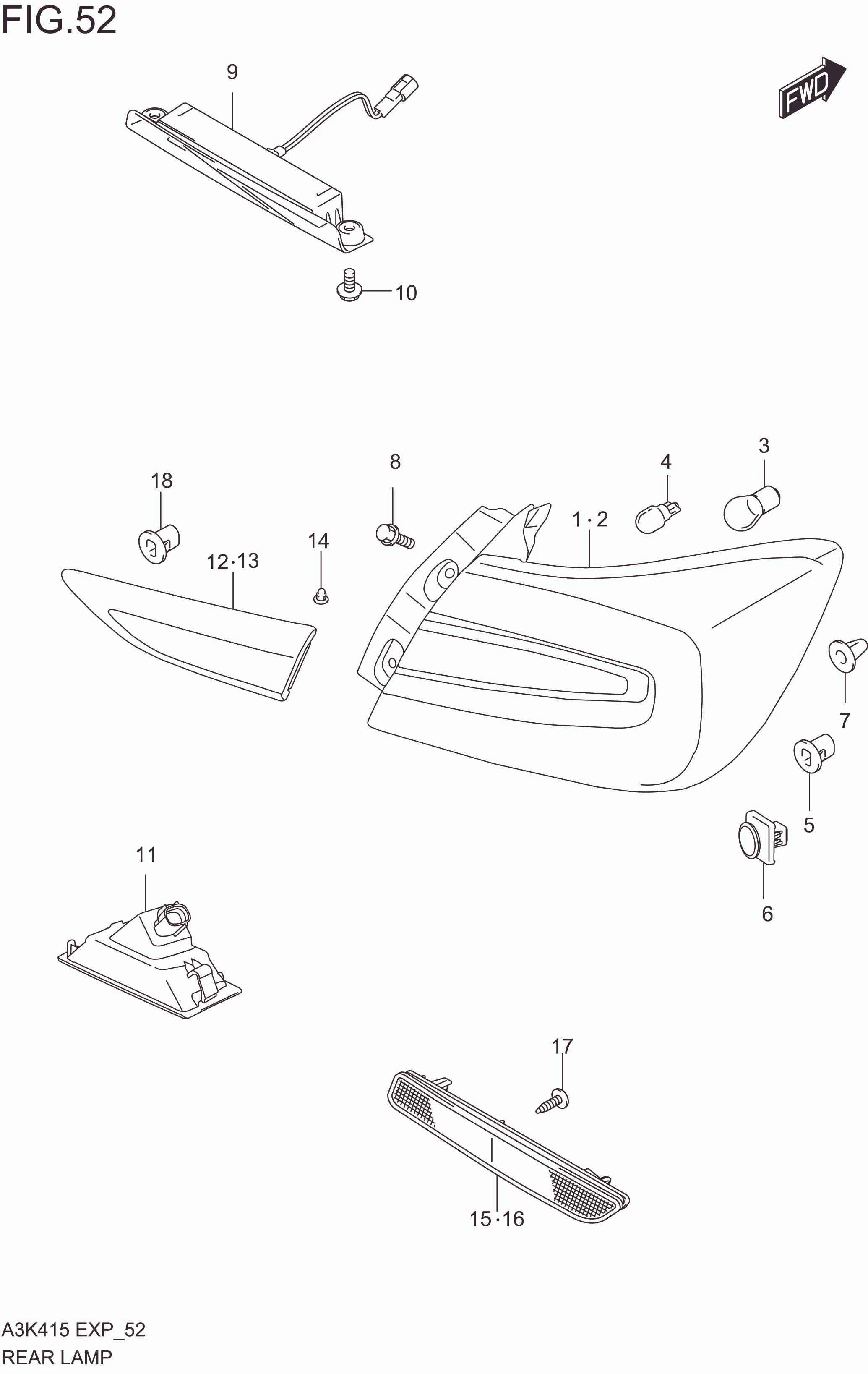

REAR LAMP

REAR LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35650M55T10-000 UNIT LAMP, REAR COMB RH 1 Rp1.835.500
2 35750M55T10-000 UNIT LAMP, REAR COMB LH 1 Rp1.835.500
3 09471-12186-000 BULB (12V-21W) 2 Rp22.000
4 09471-12146-000 BULB (12V-16W) 2 Rp39.500
5 35153M55T00-000 GROMMET, REAR COMB LAMP 2 Rp4.000
6 35153M55T10-000 GROMMET, REAR COMB LAMP 2 Rp4.500
7 35153M59K20-000 GROMMET, REAR COMB LAMP UPPER 2 Rp8.000
8 01551-0616C-000 SCREW 4 Rp14.500
9 35810M68P11-000
SUB: 35810M68P10-000		 LAMP ASSY, HIGH MOUNT STOP 1 Rp608.000
10 02112-1520D-000 SCREW 2 Rp25.500
11 35910M55T00-000 LAMP ASSY, LICENSE 2 Rp56.000
12 35661M55T10-000 GARNISH ASSY, BACK DOOR RH 1 Rp160.000
13 35681M55T10-000 GARNISH ASSY, BACK DOOR LH 1 Rp160.000
14 09159-06111-000 NUT 2 Rp42.500
15 35950M55K01-000 REFLECTOR ASSY,REAR,RH 1 Rp54.000
16 35970M55K01-000 REFLECTOR ASSY,REAR,LH 1 Rp54.000
17 03541-0516A-000 SCREW,REAR REFLECTOR 2 Rp3.500
18 35153M55T00-000 GROMMET, BACK DOOR GARNISH 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
