New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETER(N/SEGMENTED LCD DISPLAY)HEADLAMP(W/LED)FRONT FOG LAMPREAR LAMPROOM LAMPENGINE HARNESS BRACKETWIRING HARNESSELECTRICAL CONTROLLOCK SETFRONT WINDOW WIPER WINDOW WASHERREAR WINDOW WIPERAUDIOWIRING HARNESS (SOP 2023)AUDIO(W/DISPLAY AUDIO:9 INCH) SOP 2023

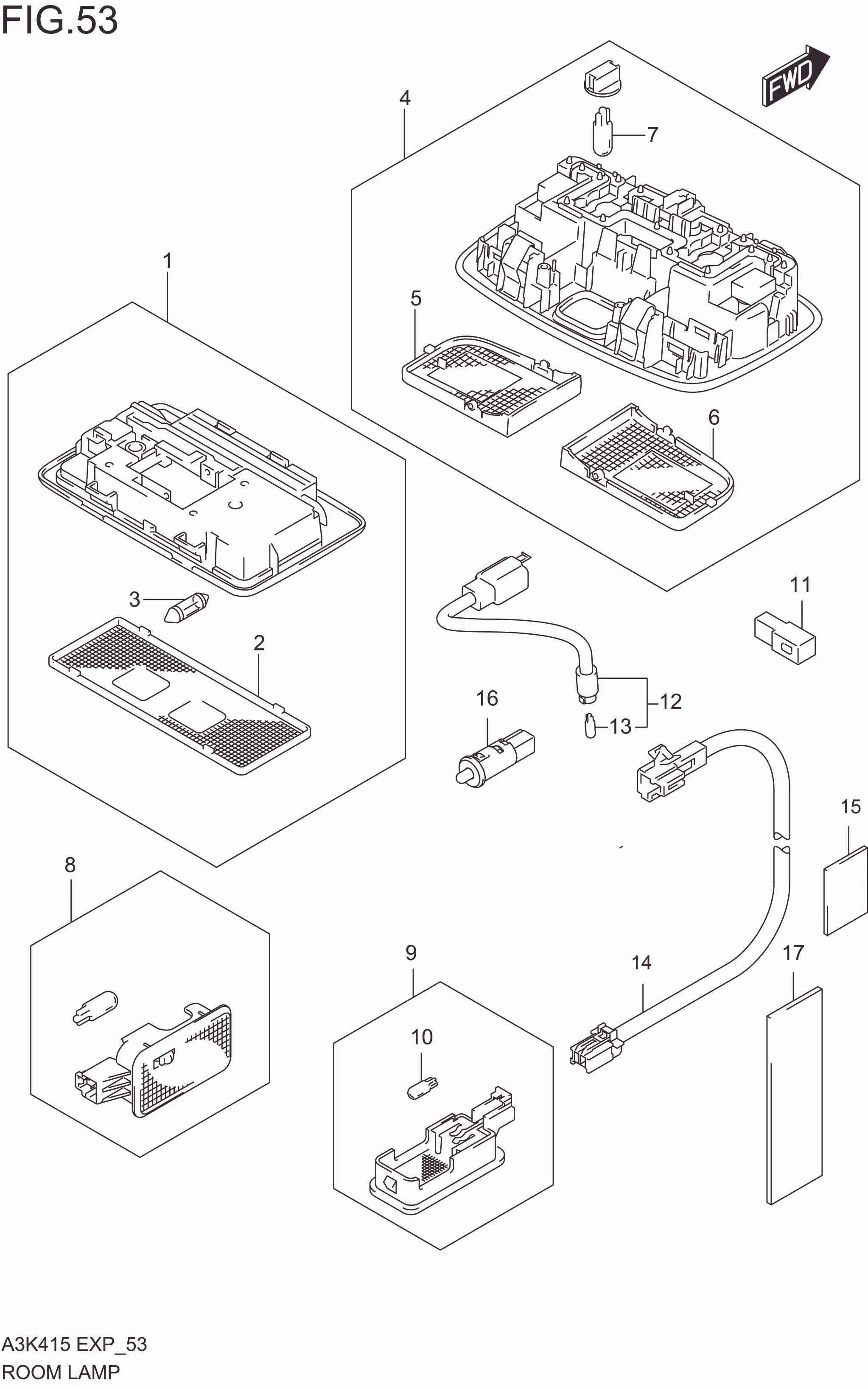

ROOM LAMP

ROOM LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 36210M55K01-6GS LAMP ASSY, ROOM (GRAY) 1 Rp90.000
2 36214M55K00-000 .LENS 1 Rp23.500
3 09471M12181-000
SUB: 09471-12181-000		 .BULB (12V10W) 1 Rp52.500
4 36230M55T10-6GS LAMP ASSY, SPOT (GRAY) 1 Rp338.500
5 36212M79M00-000 .LENS LH 1 Rp31.000
6 36213M79M00-000 .LENS RH 1 Rp31.000
7 09471-12216-000 .BULB (12V5W) 2 Rp15.000
8 36210M75JA0-000 LAMP ASSY, LUGGAGE ROOM 1 Rp62.500
9 36210M50S00-000 LAMP ASSY, DOOR ILLUMINATION 2 Rp54.000
10 09471-12081-000 .BULB (12V W5W LL) 2 Rp11.000
11 36550M64M00-000 LAMP ASSY, FLOOR 2 Rp71.000
12 36550M65M00-000 LAMP ASSY, GLOVE BOX ILLUM 1 Rp100.000
13 09471-12055-000 .BULB (14V1.4W,T5) 1 Rp32.000
14 36826M68P00-000 WIRE, DOOR LAMP 2 Rp90.000
15 DISCONTINUE
SUB: 36930M59K00-000		 COVER, HARNESS 2 -
16 37690M64M00-000 SWITCH ASSY, GLOVE BOX 1 Rp61.500
17 36930M70F10-000 COVER, HARNESS 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
