New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETER(N/SEGMENTED LCD DISPLAY)HEADLAMP(W/LED)FRONT FOG LAMPREAR LAMPROOM LAMPENGINE HARNESS BRACKETWIRING HARNESSELECTRICAL CONTROLLOCK SETFRONT WINDOW WIPER WINDOW WASHERREAR WINDOW WIPERAUDIOWIRING HARNESS (SOP 2023)AUDIO(W/DISPLAY AUDIO:9 INCH) SOP 2023

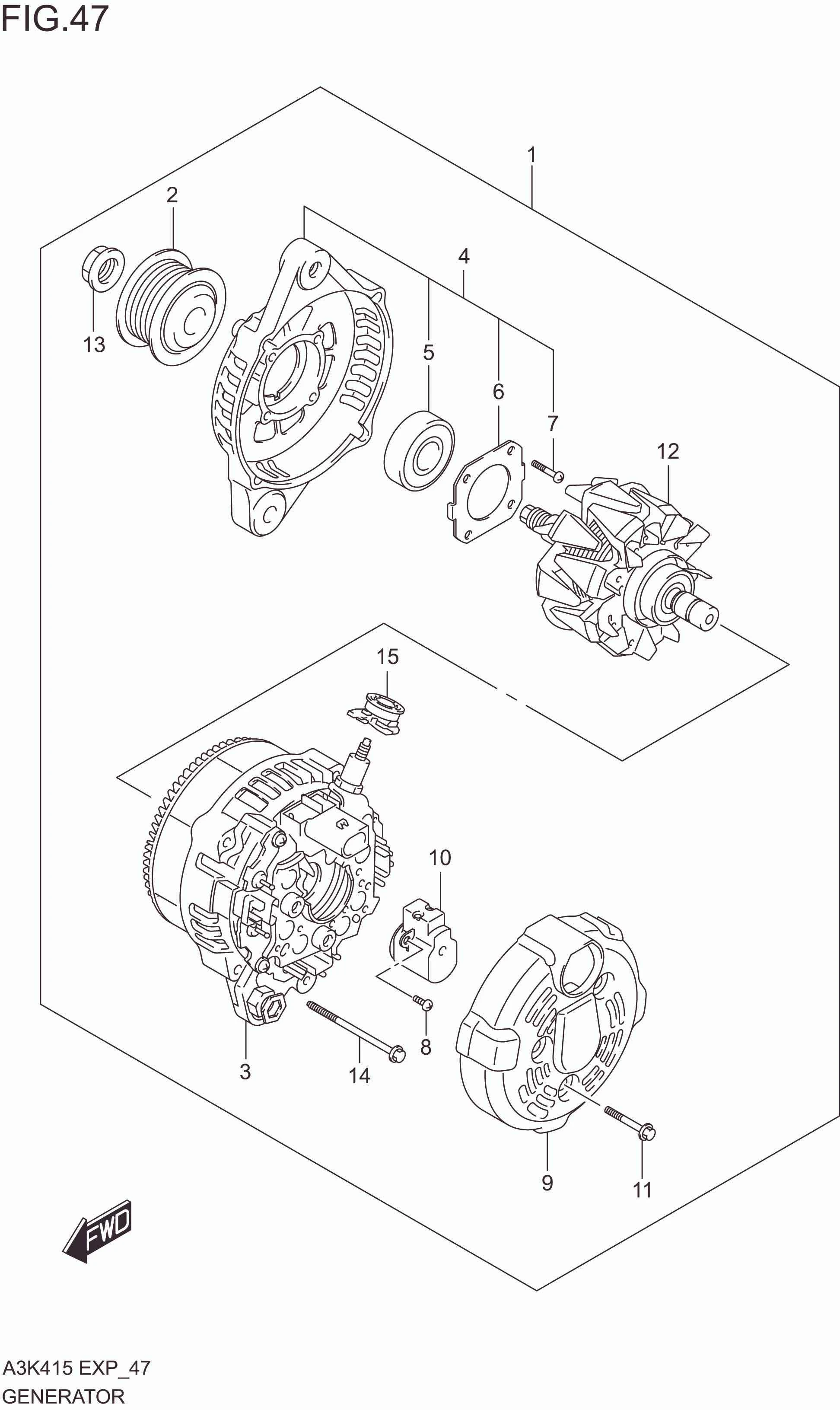

GENERATOR

GENERATOR
No No. Part Description Qty Price Per Pcs Remarks
1 31400M72R02-000
SUB: 31400M72R01-000		 GENERATOR ASSY 1 Rp6.894.000
2 31771-72R00-000 .PULLEY 1 Rp141.000
3 31401M72R00-000 .COIL ASSY, ALTERNATOR 1 Rp3.556.500
4 31580M72R00-000 .FRAME ASSY, DRIVE END 1 Rp1.030.500
5 31582M72R00-000 ..BEARING, BALL 1 Rp215.500
6 DISCONTINUE
SUB: 31585M79G00-000		 ..RETAINER, BEARING 1 -
7 DISCONTINUE
SUB: 31588M79G00-000		 ..SCREW 4 -
8 31586M86J10-000 .SCREW 3 Rp11.500
9 31614M68P10-000 .COVER, END RR 1 Rp171.500
10 31656M79M10-000 .HOLDER SUB-ASSY, BRUSH 1 Rp276.000
11 31692M79M10-000 .BOLT 3 Rp35.000
12 31710M68P10-000 .ROTOR ASSY 1 Rp1.781.000
13 DISCONTINUE
SUB: 31775M79G00-000		 .NUT 1 -
14 31778M68P10-000 .BOLT, THROUGH 4 Rp625.000
15 32514M68P10-000 .INSULATION BUSH, TERMINAL 1 Rp34.500 BLACK

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
