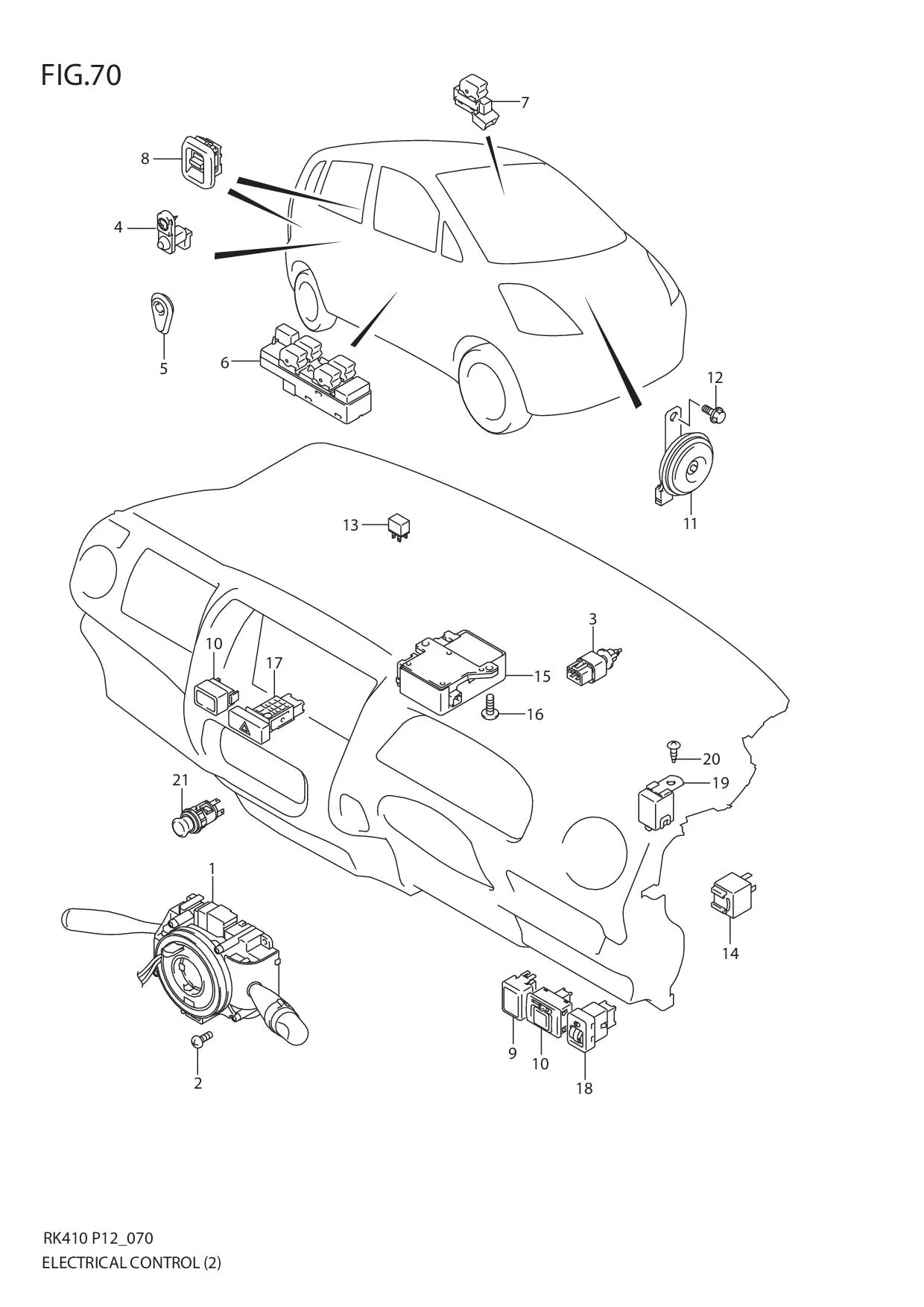

FIG.70 ELECTRICAL CONTROL (2)

FIG.70 ELECTRICAL CONTROL (2)
No No. Part Description Qty Price Per Pcs Remarks
1 37400M67K51-000
SUB: 37400M67K50-000		 SWITCH ASSY, COMBINATION 1 Rp1.131.000
2 02112-0512A-000
SUB: 02112B05123N000		 SCREW 3 Rp2.500
3 37740M76G00-000
SUB: 37740M79G00-000		 SWITCH ASSY, STOP LAMP 1 Rp105.500
4 37670M55K00-000 SWITCH ASSY, DOOR 2 Rp81.000
5 DISCONTINUE
SUB: 37671B75J00N000		 CAP, DOOR SWITCH HOLE 2 -
6 37990M59K30-000 SWITCH ASSY, P/W MAIN 1 Rp1.090.000
7 37995M75J00-000 SWITCH ASSY, P/W SUB 1 Rp178.000
8 37995M60G00-U1G SWITCH ASSY, P/W RR 2 Rp339.000
9 37950M67K00-000 SWITCH ASSY, MIRROR 1 Rp274.500
10 37285-75J00-000
SUB: 37285B75J00N000		 CAP, OPTION SWITCH HOLE 0 Rp11.000
11 38500M65L01-000
SUB: 38500M65L00-000		 HORN ASSY 1 Rp184.500
12 09115-08001-000 BOLT (8X18) 1 Rp21.500
13 38860-76F01-000
SUB: 38860M79F00-000		 RELAY ASSY, FUEL INJECTION 2 Rp47.000
14 38610M76G40-000
SUB: 38610M76G00-000		 RELAY ASSY, TURN SIGNAL 1 Rp144.000
15 DISCONTINUE
SUB: 38720M65L00-000		 CONTROLLER ASSY, POWER STEERING 1 -
16 02142-0516A-000
SUB: 02142B0516AN000		 SCREW 2 Rp3.500
17 37430M59K00-5PK SWITCH ASSY, HAZARD WARNING (BLACK) 1 Rp226.500
18 35180M65L00-000 SWITCH ASSY, HEADLAMP LEVELING 1 Rp217.500
19 38700M59K00-000 CONTROLLER ASSY, D/L 1 Rp506.000
20 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 1 Rp3.500
21 DISCONTINUE
SUB: 39400-54G00-000		 LIGHTER ASSY, CIGARETTE 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
