KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.54 ENGINE ELECTRICAL (1)FIG.55 ENGINE ELECTRICAL (2)FIG.56 STARTING MOTOR (1)FIG.57 STARTING MOTOR (2)FIG.58 STARTING MOTOR (3)FIG.59 GENERATOR (1)FIG.60 GENERATOR (2)FIG.61 BATTERYFIG.62 SPEEDOMETER (1)FIG.63 SPEEDOMETER (2)FIG.64 HEADLAMP (1)FIG.65 HEADLAMP (2)FIG.66 REAR LAMPFIG.67 WIRING HARNESS (1)FIG.68 WIRING HARNESS (2)FIG.69 ELECTRICAL CONTROL (1)FIG.70 ELECTRICAL CONTROL (2)FIG.71 LOCK SET (1)FIG.72 LOCK SET (2)FIG.73 FRONT WINDOR WIPERFIG.74 WINDOW WASHER (1)FIG.75 WINDOW WASHER (2)FIG.76 RADIO

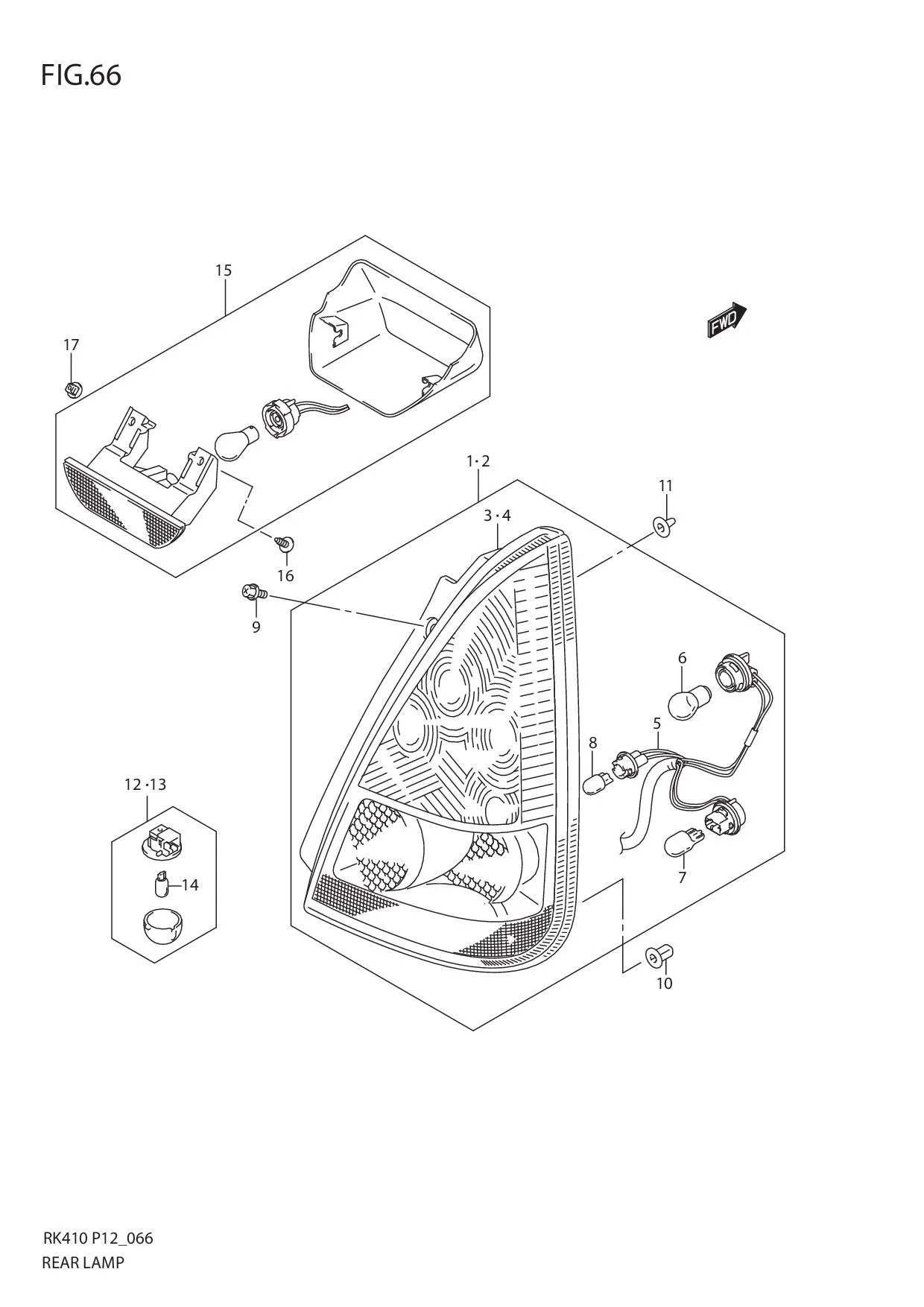

FIG.66 REAR LAMP

FIG.66 REAR LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35651M59K00-000
SUB: 35603M59K00-000		 LAMP ASSY, RR COMB RH 1 Rp711.500
2 35671M59K00-000
SUB: 35604M59K00-000		 LAMP ASSY, RR COMB LH 1 Rp711.500
3 35651M59K00-000 •LAMP UNIT, RR COMB RH 1 Rp711.500
4 35671M59K00-000 •LAMP UNIT, RR COMB LH 1 Rp711.500
5 35658M59K00-000 •SOCKET & CORD ASSY 2 Rp200.500
6 09471-12046-000
SUB: 09471B12046N000		 •BULB (12V21/5W) 2 Rp21.500
7 09471M121A0-000 •BULB 2 Rp107.000
8 09471-12146-000
SUB: 09471B12146N000		 •BULB (12V16W) 2 Rp39.500
9 02162-0616B-000 SCREW 2 Rp15.500
10 35153M59K10-000 GROMMET, REAR COMB LAMP LOWER 2 Rp8.000
11 35153M59K20-000 GROMMET, REAR COMB LAMP UPPER 2 Rp8.000
12 35910M75J11-000
SUB: 35910M75J10-000		 LAMP ASSY, LICENSE (BLACK) 1 Rp51.000
13 35910M75J40-000 LAMP ASSY, LICENSE (GRAY) 1 Rp51.500
14 09471-12216-000
SUB: 09471M12076-000		 •BULB (12V5W) 2 Rp15.000
15 35810M59K00-000 LAMP ASSY, HIGH MT STOP 1 Rp190.000
16 03541-0616A-000
SUB: 03541M06163-000		 SCREW 2 Rp13.500
17 71851M70F00-000
SUB: 09148M06007-000		 NUT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
