KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.54 ENGINE ELECTRICAL (1)FIG.55 ENGINE ELECTRICAL (2)FIG.56 STARTING MOTOR (1)FIG.57 STARTING MOTOR (2)FIG.58 STARTING MOTOR (3)FIG.59 GENERATOR (1)FIG.60 GENERATOR (2)FIG.61 BATTERYFIG.62 SPEEDOMETER (1)FIG.63 SPEEDOMETER (2)FIG.64 HEADLAMP (1)FIG.65 HEADLAMP (2)FIG.66 REAR LAMPFIG.67 WIRING HARNESS (1)FIG.68 WIRING HARNESS (2)FIG.69 ELECTRICAL CONTROL (1)FIG.70 ELECTRICAL CONTROL (2)FIG.71 LOCK SET (1)FIG.72 LOCK SET (2)FIG.73 FRONT WINDOR WIPERFIG.74 WINDOW WASHER (1)FIG.75 WINDOW WASHER (2)FIG.76 RADIO

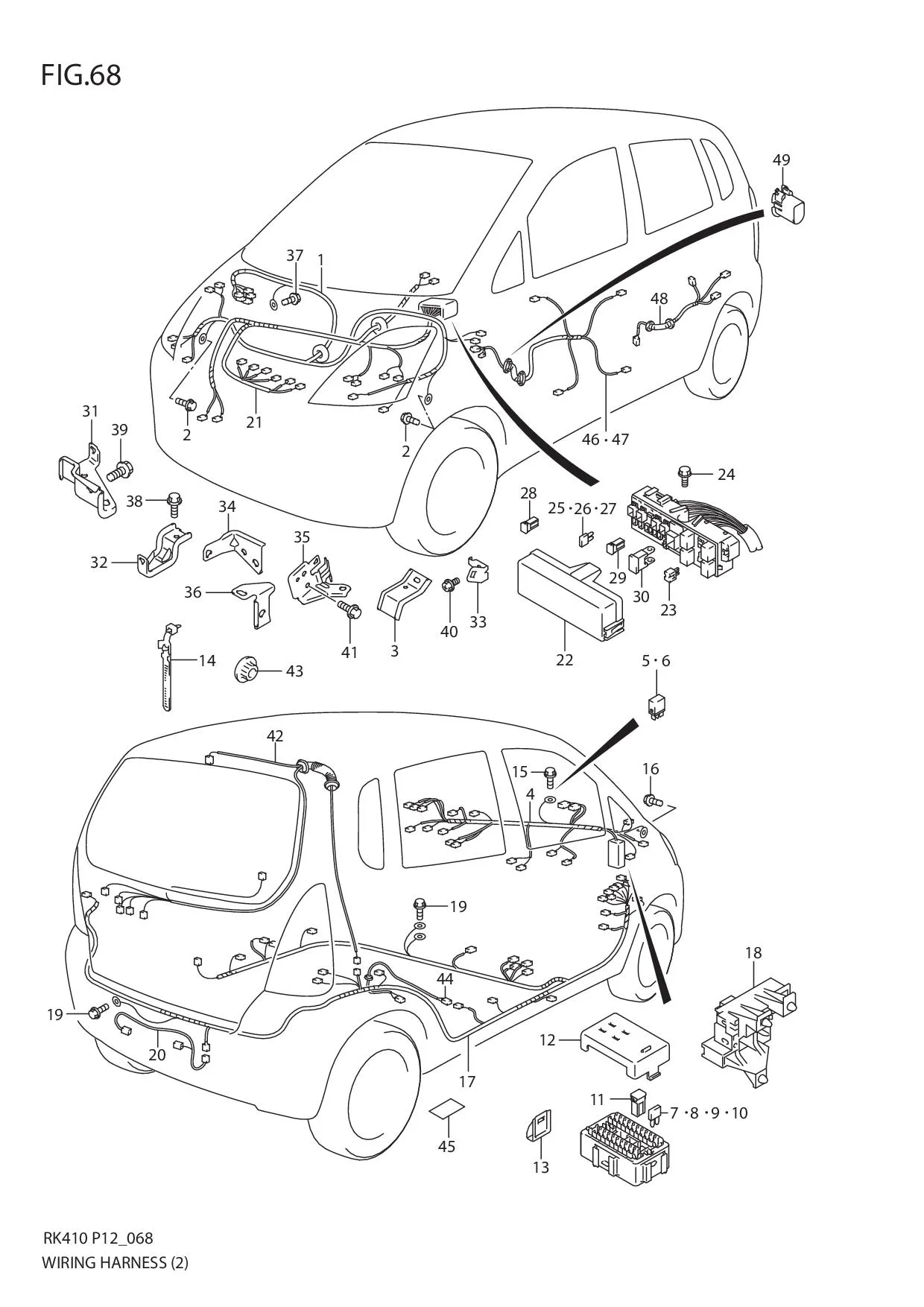

FIG.68 WIRING HARNESS (2)

FIG.68 WIRING HARNESS (2)
No No. Part Description Qty Price Per Pcs Remarks
1 36610M65L00-000 HARNESS ASSY, MAIN 1 Rp2.368.000
2 09115-06005-000 BOLT (6X16) 2 Rp14.000
3 DISCONTINUE
SUB: 36614M65L00-000		 BRACKET, CONNECTOR 1 -
4 36620M65L40-000 HARNESS ASSY, INSTRUMENT PANEL 1 Rp2.705.500
5 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY ASSY, STARTER 1 Rp47.000
6 38860-76F01-000
SUB: 38860M79F00-000		 •RELAY ASSY, HEATER 1 Rp47.000
7 09481-10501-000
SUB: 09481M10501-000		 •FUSE (10A) 7 Rp12.000
8 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 7 Rp12.000
9 09481-20501-000 •FUSE (20A) 1 Rp14.500
10 09481-30501-000
SUB: 09481M30501-000		 •FUSE (30A) 3 Rp13.000
11 09481-30401-000 •FUSE (30A) 1 Rp42.000
12 36717M65L00-000 •COVER, FUSE BOX 1 Rp59.000
13 DISCONTINUE
SUB: 33941M83B00-000		 BRACKET, CLAMP 1 -
14 DISCONTINUE
SUB: 09407-25401L000		 CLAMP 1 -
15 02162-0612A-000 BOLT 1 Rp11.000
16 09115-06005-000 BOLT (6X16) 1 Rp14.000
17 DISCONTINUE
SUB: 36630M65L40-000		 HARNESS ASSY, FLOOR 1 -
18 DISCONTINUE
SUB: 36631M59K00-000		 •HOLDER, HARNESS CONNECTOR 1 -
19 09115-06005-000 BOLT (6X16) 2 Rp14.000
20 DISCONTINUE
SUB: 36843M65L00-000		 WIRE, LICENSE LAMP 1 -
21 36650M65L00-000 HARNESS ASSY, ENGINE 1 Rp4.541.500
22 36738M65L00-000 •COVER, FUSE BOX 1 Rp54.000
23 38860-76F01-000
SUB: 38860M79F00-000		 •RELAY ASSY, RADIATOR 1 Rp47.000
24 DISCONTINUE
SUB: 09138-06040-000		 •BOLT, MAIN FUSE BOX 2 -
25 09481-10501-000
SUB: 09481M10501-000		 •FUSE ASSY (10A) 1 Rp12.000
26 09481-15501-000
SUB: 09481M15501-000		 •FUSE ASSY (15A) 3 Rp12.000
27 09481-20501-000 •FUSE ASSY (20A) 1 Rp14.500
28 09481-30501-000
SUB: 09481M30501-000		 •FUSE ASSY (30A) 1 Rp13.000
29 09481M60401-000 •FUSE ASSY (60A) 2 Rp66.000
30 09481-80301-000
SUB: 09481M80301-000		 •FUSE ASSY (80A) 1 Rp74.000
31 36651-51K00-000
SUB: 36651B51K00N000		 BRACKET, ENGINE HARNESS T/M 1 Rp15.000
32 DISCONTINUE
SUB: 36651M68K40-000		 BRACKET, ENGINE HARNESS MT 1 -
33 DISCONTINUE
SUB: 36651M73H00-000		 BRACKET, ENGINE HARNESS APRON 1 -
34 DISCONTINUE
SUB: 36653M51K00-000		 BRACKET, ENGINE HARNESS THERM 1 -
35 36653-68K00-000
SUB: 36653B68K00N000		 BRACKET, ENGINE HARNESS EGR 1 Rp12.000
36 36654-65L00-000
SUB: 36654B65L00N000		 BRACKET, ENGINE HARNESS HOOK 1 Rp9.500
37 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
38 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
39 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 1 Rp3.500
40 02162-0612A-000 BOLT 1 Rp11.000
41 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
42 DISCONTINUE
SUB: 36680M65L10-000		 HARNESS ASSY, BACK DOOR 1 -
43 DISCONTINUE
SUB: 09308M25002-000		 PROTECTOR, BACK DOOR OUT HANDLE 1 -
44 36840M66L00-000 WIRE, FUEL PUMP 1 Rp159.000
45 36930M82000-000
SUB: 36930M82010-000		 COVER, FUEL LEAD WIRE 1 Rp6.500
46 DISCONTINUE
SUB: 36756M65L00-000		 WIRE, P/W MAIN 1 -
47 DISCONTINUE
SUB: 36757M59K20-000		 WIRE, P/W SUB 1 -
48 DISCONTINUE
SUB: 36751M59K20-000		 WIRE, P/W RR 2 -
49 DISCONTINUE
SUB: 36759M76G00-000		 PROTECTOR, DOOR HARNESS 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
