KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.54 ENGINE ELECTRICAL (1)FIG.55 ENGINE ELECTRICAL (2)FIG.56 STARTING MOTOR (1)FIG.57 STARTING MOTOR (2)FIG.58 STARTING MOTOR (3)FIG.59 GENERATOR (1)FIG.60 GENERATOR (2)FIG.61 BATTERYFIG.62 SPEEDOMETER (1)FIG.63 SPEEDOMETER (2)FIG.64 HEADLAMP (1)FIG.65 HEADLAMP (2)FIG.66 REAR LAMPFIG.67 WIRING HARNESS (1)FIG.68 WIRING HARNESS (2)FIG.69 ELECTRICAL CONTROL (1)FIG.70 ELECTRICAL CONTROL (2)FIG.71 LOCK SET (1)FIG.72 LOCK SET (2)FIG.73 FRONT WINDOR WIPERFIG.74 WINDOW WASHER (1)FIG.75 WINDOW WASHER (2)FIG.76 RADIO

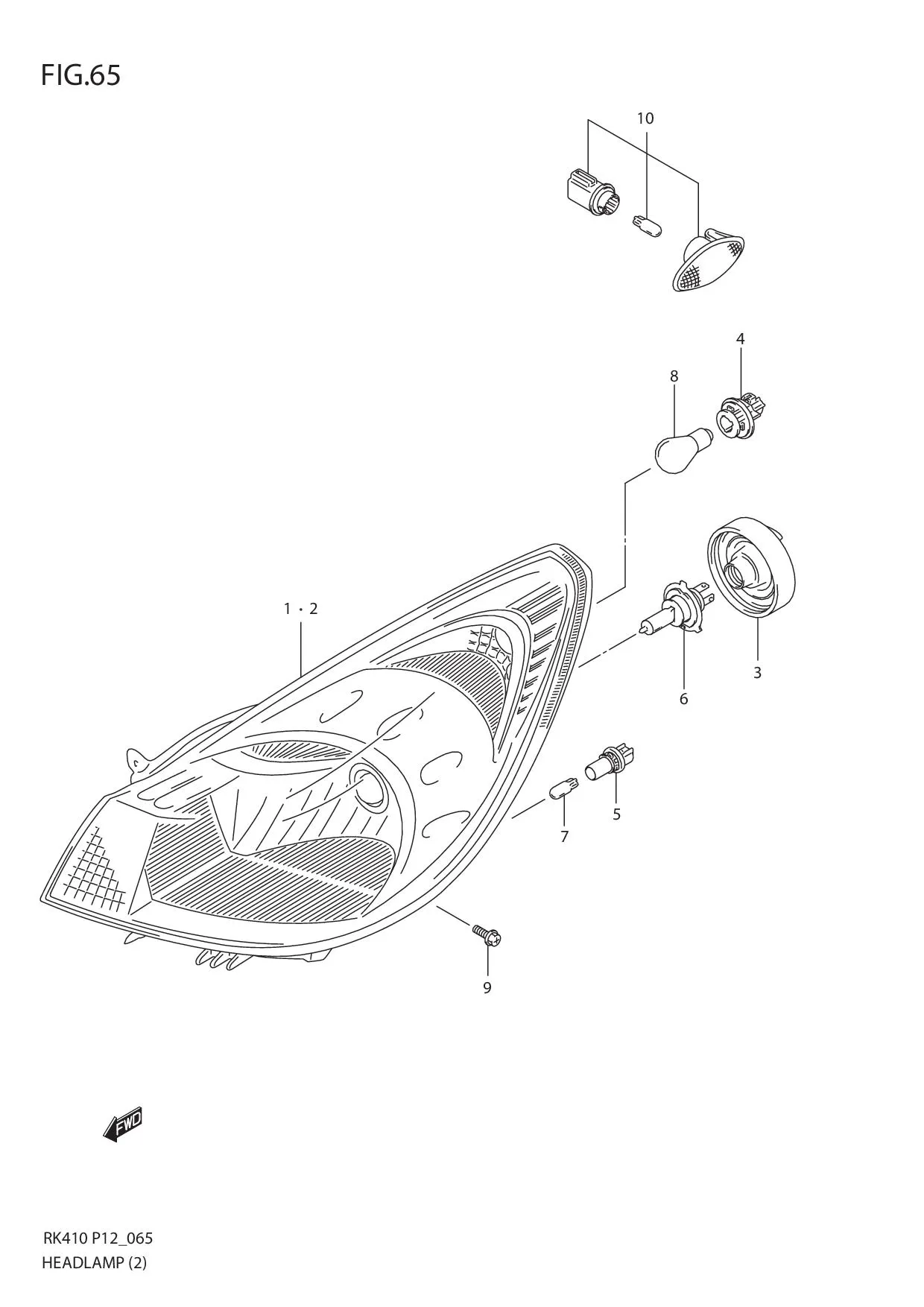

FIG.65 HEADLAMP (2)

FIG.65 HEADLAMP (2)
No No. Part Description Qty Price Per Pcs Remarks
1 35121M65L00-000 UNIT, HEADLAMP RH 1 Rp2.410.500
2 35321M65L00-000 UNIT, HEADLAMP LH 1 Rp2.410.500
3 35125M79F00-000 COVER, SOCKET 2 Rp51.500
4 35618M55K00-000 SOCKET, TURN LAMP 2 Rp105.000
5 DISCONTINUE
SUB: 36118M79F00-000		 SOCKET, POSITION LAMP 2 -
6 09471-12060-000
SUB: 09471M12060-000		 BULB (12V60/55W,H4) 2 Rp882.000
7 09471-12216-000
SUB: 09471M12076-000		 BULB (12V5W) 2 Rp15.000
8 09471-12245-000
SUB: 09471B12245N000		 BULB (12V21W,PY21W)(AMBER) 2 Rp30.500
9 09122-76006-000 SCREW (6X16) 8 Rp13.000
10 36410M67K10-000 LAMP ASSY, SIDE TURN SIGNAL 2 Rp97.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
