KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.54 ENGINE ELECTRICAL (1)FIG.55 ENGINE ELECTRICAL (2)FIG.56 STARTING MOTOR (1)FIG.57 STARTING MOTOR (2)FIG.58 STARTING MOTOR (3)FIG.59 GENERATOR (1)FIG.60 GENERATOR (2)FIG.61 BATTERYFIG.62 SPEEDOMETER (1)FIG.63 SPEEDOMETER (2)FIG.64 HEADLAMP (1)FIG.65 HEADLAMP (2)FIG.66 REAR LAMPFIG.67 WIRING HARNESS (1)FIG.68 WIRING HARNESS (2)FIG.69 ELECTRICAL CONTROL (1)FIG.70 ELECTRICAL CONTROL (2)FIG.71 LOCK SET (1)FIG.72 LOCK SET (2)FIG.73 FRONT WINDOR WIPERFIG.74 WINDOW WASHER (1)FIG.75 WINDOW WASHER (2)FIG.76 RADIO

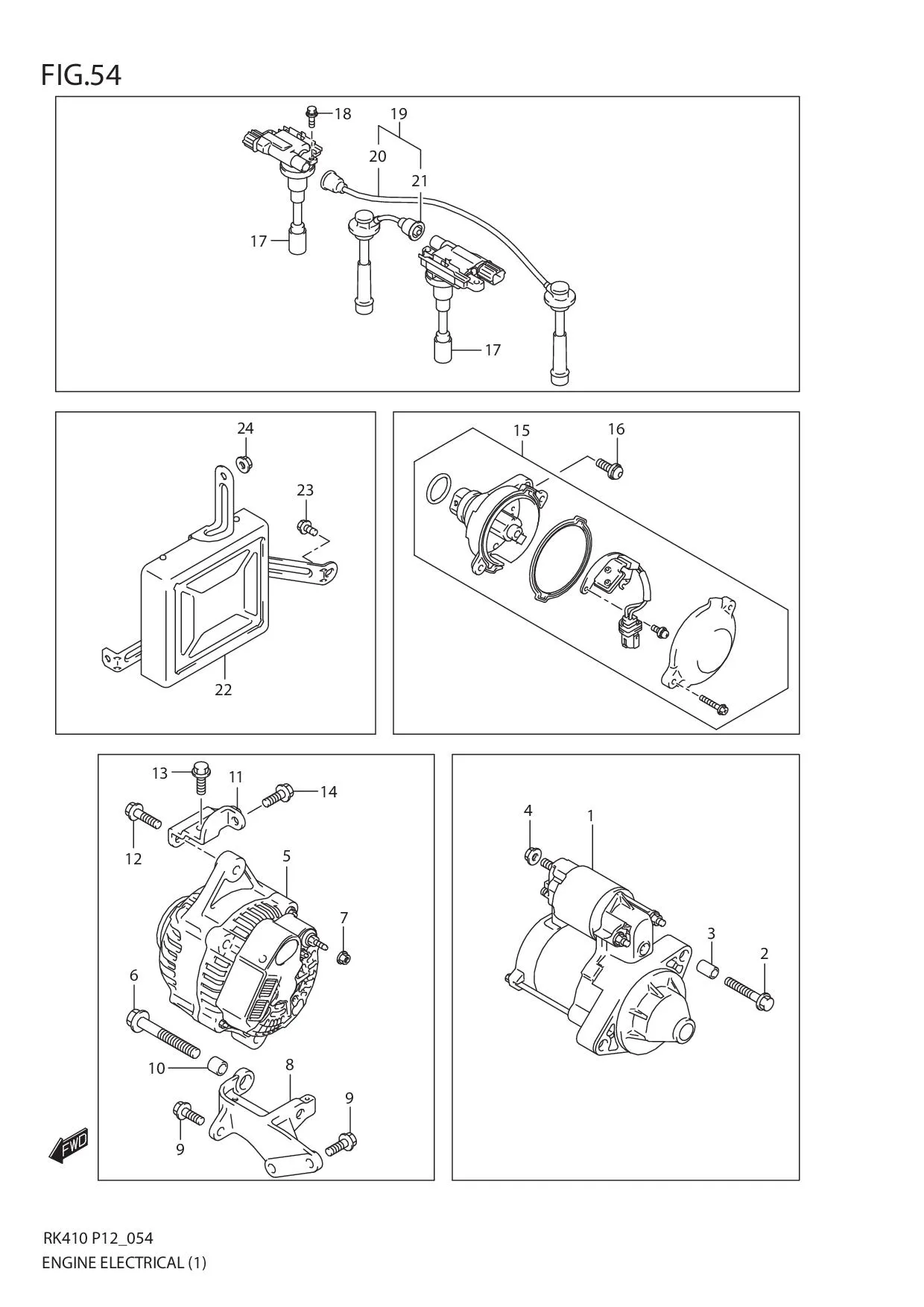

FIG.54 ENGINE ELECTRICAL (1)

FIG.54 ENGINE ELECTRICAL (1)
No No. Part Description Qty Price Per Pcs Remarks
1-2 31100M59K00-000 MOTOR ASSY, STARTING 1 Rp2.560.000 FROM 2008-4
1-1 31100M59K00-000
SUB: 31100M70F10-000		 MOTOR ASSY, STARTING 1 Rp2.560.000 TO 2008-3
2 01550-0855A-000 BOLT 2 Rp3.500
3 04211-11129-000
SUB: 04211B11129N000		 PIN 2 Rp2.000
4 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
5 31400M79F00-000 GENERATOR ASSY 1 Rp4.410.000
6 01550-1085A-000 BOLT 1 Rp7.000
7 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
8 DISCONTINUE
SUB: 11565M79F02-000		 BRACKET, GENERATOR 1 -
9 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 3 Rp5.500
10 11555M60G00-000 BUSH, GENERATOR MOUNTING 1 Rp6.500
11 DISCONTINUE
SUB: 11561M79F00-000		 ARM, GENERATOR ADJUSTING 1 -
12 09118M08174-000
SUB: 09118-08107-000		 BOLT (8X25) 1 Rp19.500
13 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 2 Rp5.500
14 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 1 Rp3.500
15-1 DISCONTINUE
SUB: 33220M59K00-000		 SENSOR ASSY, CAM POSITION 1 -
15-2 DISCONTINUE
SUB: 33220M59K00-000		 SENSOR ASSY, CAM POSITION 1 - FROM 2008-4
16 09138-08003-000 BOLT (8X30) 1 Rp31.000
17 33400-62J00-000
SUB: 33400M79F00-000		 COIL ASSY, IGNITION 2 Rp631.000
18 DISCONTINUE
SUB: 01580-0620A-000		 BOLT 4 -
19 33705M79F00-000 CORD SET, HIGH TENSION 1 Rp484.000
20 33730M79F00-000 •CORD, HIGH TENSION NO.2 1 Rp251.000 L:245
21 33740M79F00-000 •CORD, HIGH TENSION NO.3 1 Rp230.500 L:80
22 33920M59K20-000 CONTROLLER, FUEL INJECTION 1 Rp10.443.500
23 02162-0612A-000 SCREW 1 Rp11.000
24 09159-06076-000 NUT 2 Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
