  5. FIG.67 WIRING HARNESS (1)

KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.54 ENGINE ELECTRICAL (1)FIG.55 ENGINE ELECTRICAL (2)FIG.56 STARTING MOTOR (1)FIG.57 STARTING MOTOR (2)FIG.58 STARTING MOTOR (3)FIG.59 GENERATOR (1)FIG.60 GENERATOR (2)FIG.61 BATTERYFIG.62 SPEEDOMETER (1)FIG.63 SPEEDOMETER (2)FIG.64 HEADLAMP (1)FIG.65 HEADLAMP (2)FIG.66 REAR LAMPFIG.67 WIRING HARNESS (1)FIG.68 WIRING HARNESS (2)FIG.69 ELECTRICAL CONTROL (1)FIG.70 ELECTRICAL CONTROL (2)FIG.71 LOCK SET (1)FIG.72 LOCK SET (2)FIG.73 FRONT WINDOR WIPERFIG.74 WINDOW WASHER (1)FIG.75 WINDOW WASHER (2)FIG.76 RADIO

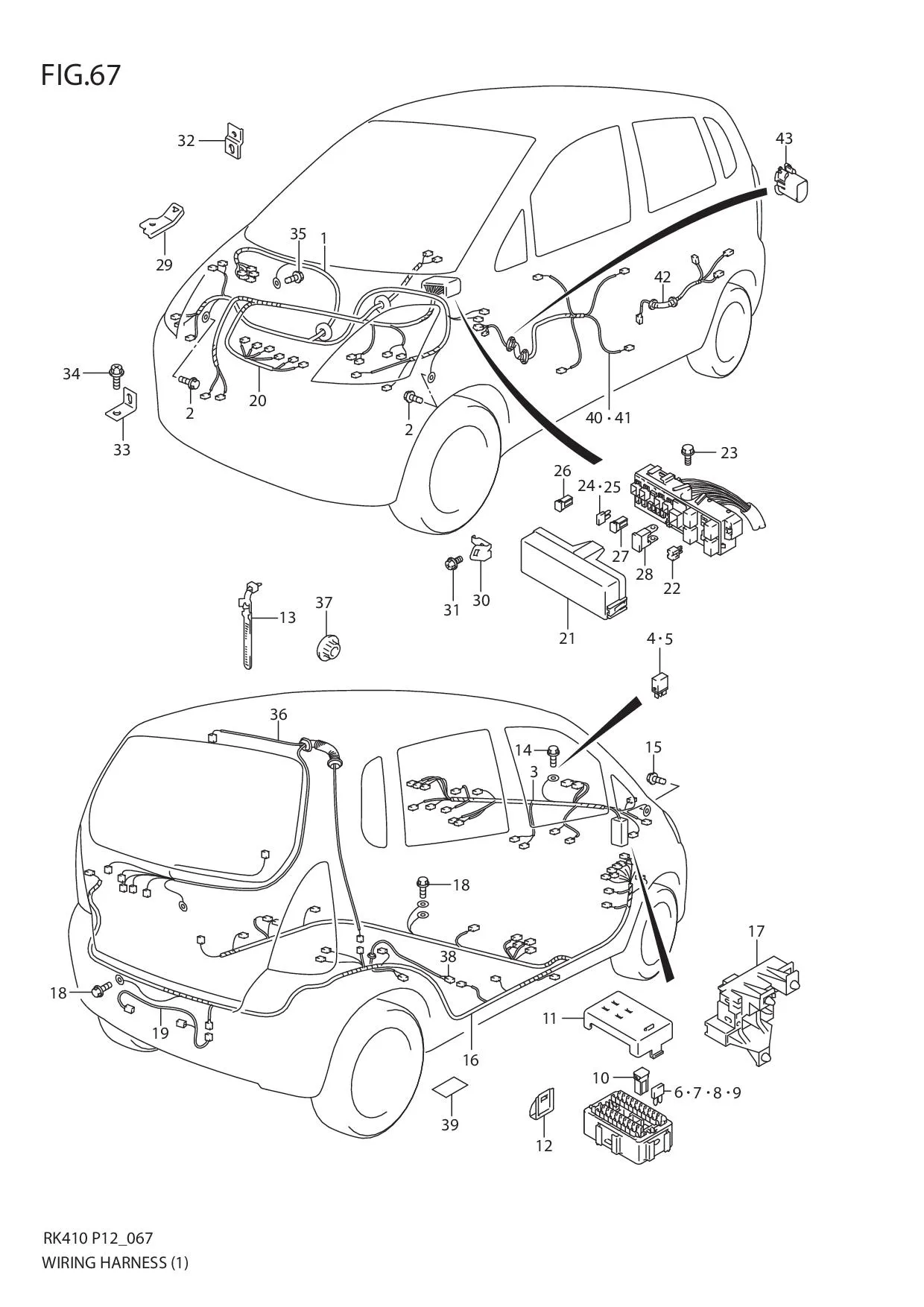

FIG.67 WIRING HARNESS (1)

FIG.67 WIRING HARNESS (1)
No No. Part Description Qty Price Per Pcs Remarks
1 36610M59K00-000 HARNESS ASSY, MAIN 1 Rp2.027.500
2 09115-06005-000 BOLT (6X16) 2 Rp14.000
3 36620M59K80-000 HARNESS ASSY, INSTRUMENT PANEL 1 Rp3.438.500
4 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY ASSY, STARTER 1 Rp47.000
5 38860-76F01-000
SUB: 38860M79F00-000		 •RELAY ASSY, HEATER 1 Rp47.000
6 09481-10501-000
SUB: 09481M10501-000		 •FUSE (10A) 0 Rp12.000
7 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 0 Rp12.000
8 09481-20501-000 •FUSE (20A) 0 Rp14.500
9 09481-30501-000
SUB: 09481M30501-000		 •FUSE (30A) 0 Rp13.000
10 09481-30401-000 •FUSE (30A) 1 Rp42.000
11 DISCONTINUE
SUB: 36717M59K00-000		 •COVER, FUSE BOX 1 -
12 DISCONTINUE
SUB: 33941M83B00-000		 BLACKET, CLAMP 1 -
13 DISCONTINUE
SUB: 09407-25401L000		 CLAMP 1 -
14 02162-0612A-000 SCREW 1 Rp11.000
15 09115-06005-000 BOLT (6X16) 1 Rp14.000
16 DISCONTINUE
SUB: 36630M59K90-000		 HARNESS ASSY, FLOOR 1 -
17 DISCONTINUE
SUB: 36631M59K00-000		 •HOLDER, HARNESS CONNECTOR 1 -
18 09115-06005-000 BOLT (6X16) 2 Rp14.000
19 DISCONTINUE
SUB: 36843M59K00-000		 WIRE, LICENSE LAMP 1 -
20 DISCONTINUE
SUB: 36650M59K00-000		 HARNESS ASSY, ENGINE 1 -
21 36738-76G00-000 •COVER, FUSE BOX 1 Rp79.500
22 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY ASSY, RADIATOR 1 Rp47.000
23 DISCONTINUE
SUB: 09138-06040-000		 •BOLT (6X10) 2 -
24 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 5 Rp12.000
25 09481-30501-000
SUB: 09481M30501-000		 •FUSE (30A) 1 Rp13.000
26 09481-50401-000
SUB: 09481M50401-000		 •FUSE (50A) 1 Rp50.500
27 09481M60401-000 •FUSE (60A) 2 Rp66.000
28 09481-80301-000
SUB: 09481M80301-000		 •FUSE (80A) 1 Rp74.000
29 DISCONTINUE
SUB: 36651M59K00-000		 BRACKET, ENGINE HARN 1 -
30 DISCONTINUE
SUB: 36651M73H00-000		 BRACKET, ENG HARN APRON 1 -
31 02162-0612A-000 SCREW 1 Rp11.000
32 DISCONTINUE
SUB: 36651M79F00-000		 BRACKET, ENG HARN 2 -
33 DISCONTINUE
SUB: 36652M79F00-000		 BRACKET, ENG HARN 1 -
34 02162-0612A-000 BOLT 1 Rp11.000
35 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 1 Rp3.500
36 DISCONTINUE
SUB: 36680M59K10-000		 HARNESS ASSY, BACK DOOR 1 -
37 DISCONTINUE
SUB: 09308M25002-000		 GROMMET 1 -
38 DISCONTINUE
SUB: 36840M79F00-000		 WIRE, FUEL PUMP 1 -
39 36930M82000-000
SUB: 36930M82010-000		 COVER, HARNESS 1 Rp6.500
40 DISCONTINUE
SUB: 36756M59K30-000		 WIRE, P/W MAIN 1 -
41 DISCONTINUE
SUB: 36757M59K10-000		 WIRE, P/W SUB 1 -
42 DISCONTINUE
SUB: 36751M59K20-000		 WIRE, P/W RR 2 -
43 DISCONTINUE
SUB: 36759M76G00-000		 PROTECTOR, DOOR HARN 2 -
