KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.54 ENGINE ELECTRICAL (1)FIG.55 ENGINE ELECTRICAL (2)FIG.56 STARTING MOTOR (1)FIG.57 STARTING MOTOR (2)FIG.58 STARTING MOTOR (3)FIG.59 GENERATOR (1)FIG.60 GENERATOR (2)FIG.61 BATTERYFIG.62 SPEEDOMETER (1)FIG.63 SPEEDOMETER (2)FIG.64 HEADLAMP (1)FIG.65 HEADLAMP (2)FIG.66 REAR LAMPFIG.67 WIRING HARNESS (1)FIG.68 WIRING HARNESS (2)FIG.69 ELECTRICAL CONTROL (1)FIG.70 ELECTRICAL CONTROL (2)FIG.71 LOCK SET (1)FIG.72 LOCK SET (2)FIG.73 FRONT WINDOR WIPERFIG.74 WINDOW WASHER (1)FIG.75 WINDOW WASHER (2)FIG.76 RADIO

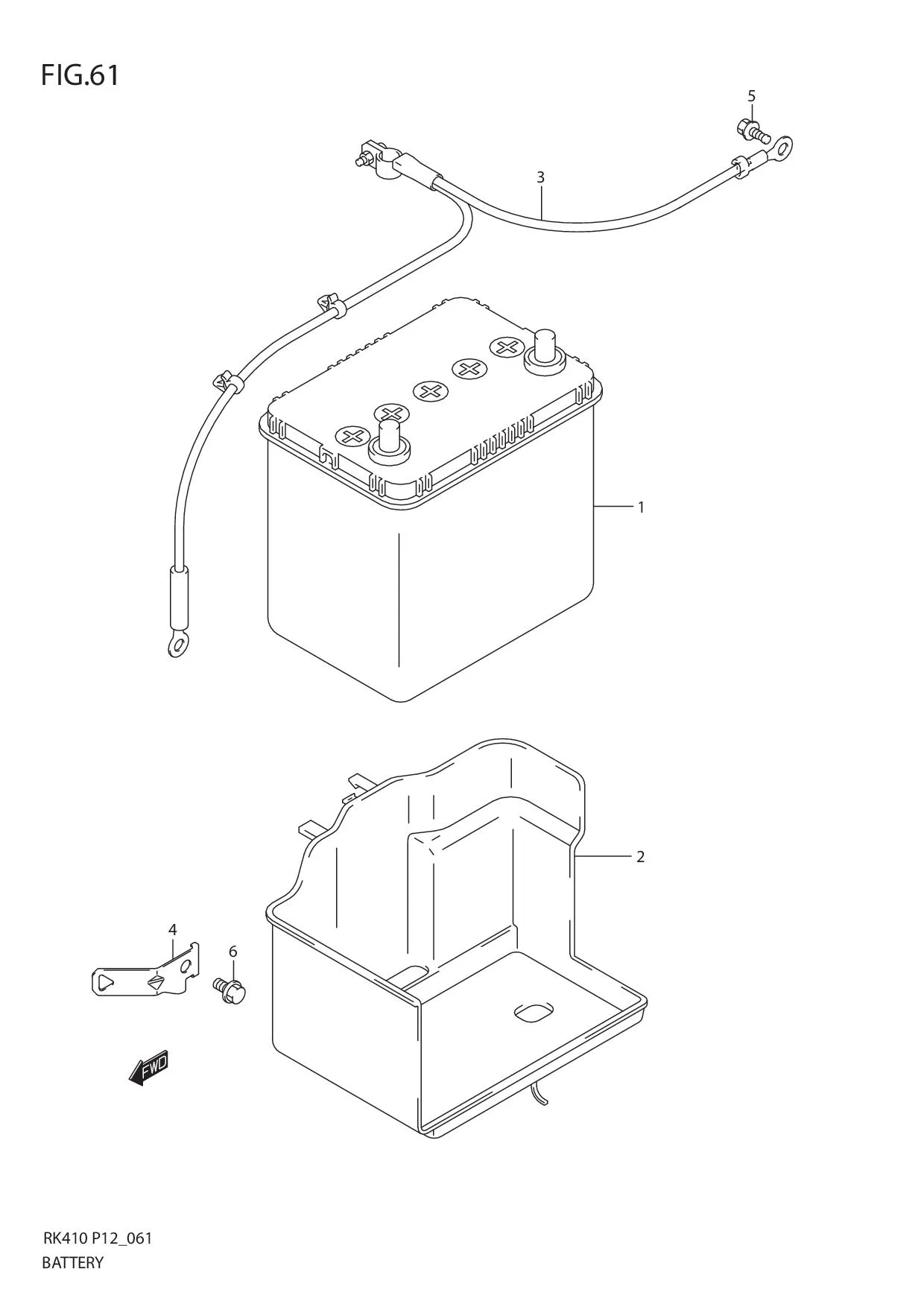

FIG.61 BATTERY

FIG.61 BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 36610B79F10N000 BATTERY 1 - SEE NOTE
2 33660M76G00-000 TRAY, BATTERY 1 Rp53.500
3-1 33850M59K00-000 CABLE, BATTERY GROUND 1 Rp194.500 EXC/EURO 2
3-2 DISCONTINUE
SUB: 33850M65L00-000		 CABLE, BATTERY GROUND 1 - EURO 2
4 33801-67L00-000
SUB: 33801B67L00N000		 BRACKET 1 Rp8.500 EURO 2
5 09115-06005-000 BOLT (6X16) 1 Rp14.000
6 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
