KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.54 ENGINE ELECTRICAL (1)FIG.55 ENGINE ELECTRICAL (2)FIG.56 STARTING MOTOR (1)FIG.57 STARTING MOTOR (2)FIG.58 STARTING MOTOR (3)FIG.59 GENERATOR (1)FIG.60 GENERATOR (2)FIG.61 BATTERYFIG.62 SPEEDOMETER (1)FIG.63 SPEEDOMETER (2)FIG.64 HEADLAMP (1)FIG.65 HEADLAMP (2)FIG.66 REAR LAMPFIG.67 WIRING HARNESS (1)FIG.68 WIRING HARNESS (2)FIG.69 ELECTRICAL CONTROL (1)FIG.70 ELECTRICAL CONTROL (2)FIG.71 LOCK SET (1)FIG.72 LOCK SET (2)FIG.73 FRONT WINDOR WIPERFIG.74 WINDOW WASHER (1)FIG.75 WINDOW WASHER (2)FIG.76 RADIO

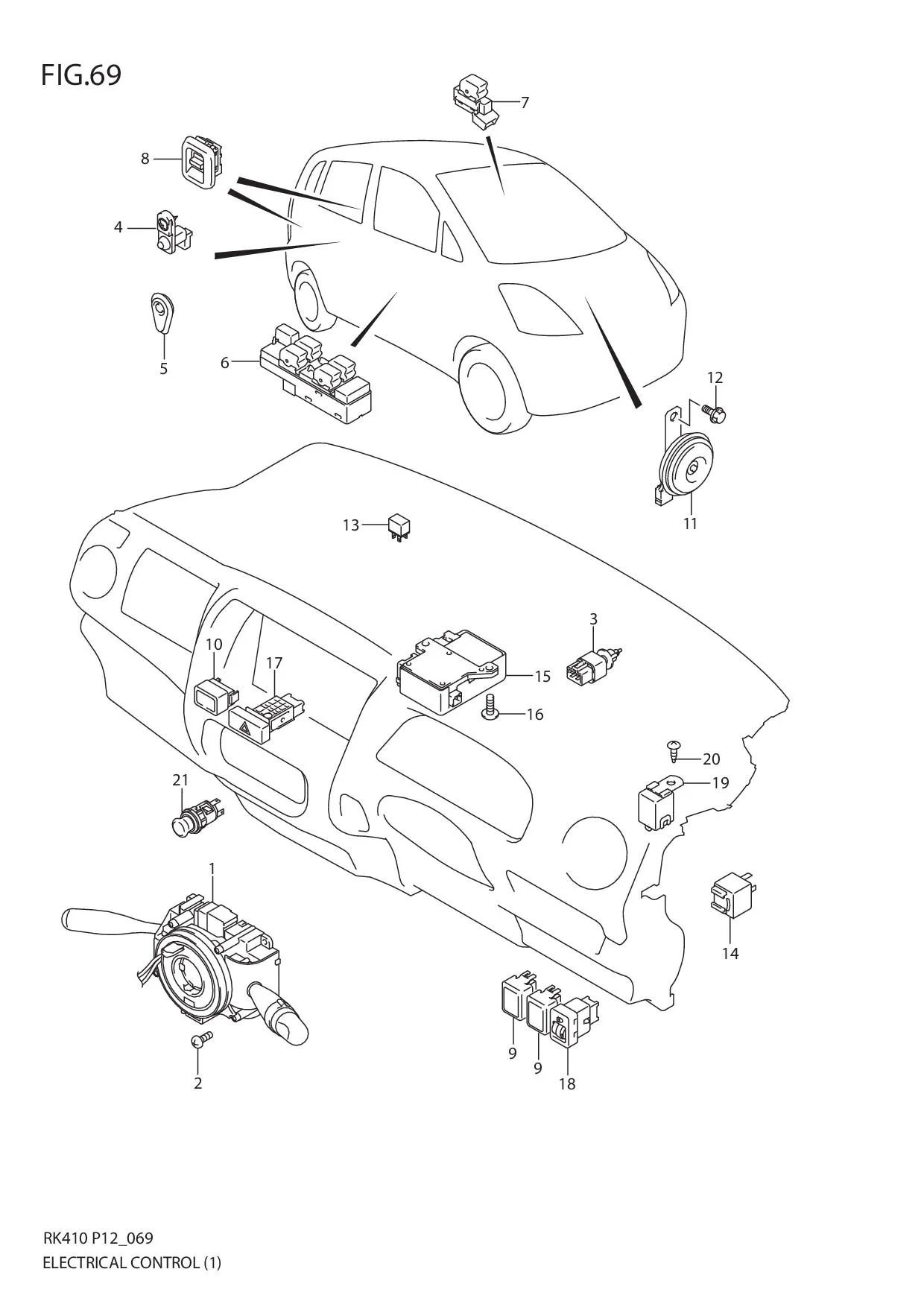

FIG.69 ELECTRICAL CONTROL (1)

FIG.69 ELECTRICAL CONTROL (1)
No No. Part Description Qty Price Per Pcs Remarks
1 37400M67K51-000
SUB: 37400M67K50-000		 SWITCH ASSY, COMBINATION 1 Rp1.131.000
2 02112-0512A-000
SUB: 02112B0512AN000		 SCREW 3 Rp2.500
3 37740M76G00-000
SUB: 37740M79G00-000		 SWITCH ASSY, STOP LAMP 1 Rp105.500
4 37670M79G00-000 SWITCH ASSY, DOOR 2 Rp28.500
5 DISCONTINUE
SUB: 37671B75J00N000		 CAP, DOOR SW HOLE 2 -
6 37990M59K30-000 SWITCH ASSY, P/W MAIN 1 Rp1.090.000
7 37995M75J00-000 SWITCH ASSY, P/W SUB 1 Rp178.000
8 DISCONTINUE
SUB: 37995M60G00-P4Z		 SWITCH ASSY, P/W RR 2 -
9 37285-75J00-000
SUB: 37285B75J00N000		 CAP, OPTION SW HOLE 0 Rp11.000
10 37285M79G10-000
SUB: 37285M75F20-000		 CAP, OPTION SW HOLE 1 Rp7.500
11 DISCONTINUE
SUB: 38500M59K00-000		 HORN ASSY 1 -
12 09115-08001-000 BOLT (8X18) 1 Rp21.500
13 38860-76F01-000
SUB: 38860M79F00-000		 RELAY ASSY, FUEL, INJECTION 2 Rp47.000
14 38610M76G40-000
SUB: 38610M76G00-000		 RELAY, TURN SIGNAL 1 Rp144.000
15 38720M79G00-000 CONTROLLER ASSY, EPS 1 Rp5.119.500
16 02142-0516A-000
SUB: 02142B0516AN000		 SCREW 2 Rp3.500
17 37430M59K00-5PK SWITCH ASSY, HAZARD WARNING 1 Rp226.500
18 DISCONTINUE
SUB: 35180M75J00-000		 SWITCH ASSY, HEAD LAMP LEVELING 1 -
19 38700M59K00-000 CONTROLLER ASSY, DOOR LOCK 1 Rp506.000
20 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 1 Rp3.500
21 DISCONTINUE
SUB: 39400-54G00-000		 LIGHTER ASSY, CIGARETTE 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
