GRAND VITARA (JB420_424)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.77 ENGINE ELECTRICAL (JB420W)FIG.78 ENGINE ELECTRICAL (JB424W)FIG.79 STARTING MOTOR (JB420W)FIG.80 STARTING MOTOR (JB424W)FIG.81 GENERATOR (JB420W)FIG.82 GENERATOR (JB424W)FIG.83 BATTERYFIG.84 SPEEDOMETER (JB420W)FIG.85 HEADLAMP (JB420W)FIG.86 HEADLAMP (JB424W)FIG.87 FOG LAMPFIG.88 ROOM LAMPFIG.89 REAR LAMPFIG.90 WIRING HARNESS (JB420W)FIG.91 WIRING HARNESS (JB424W)FIG.92 ELECTRICAL CONTROLFIG.93 LOCK SETFIG.94 FRONT WINDOW WIPERFIG.95 WINDOW WASHER (TYPE 3)FIG.96 WINDOW WASHER (TYPE 4)FIG.97 REAR WINDOW WIPER FIG.98 RADIO

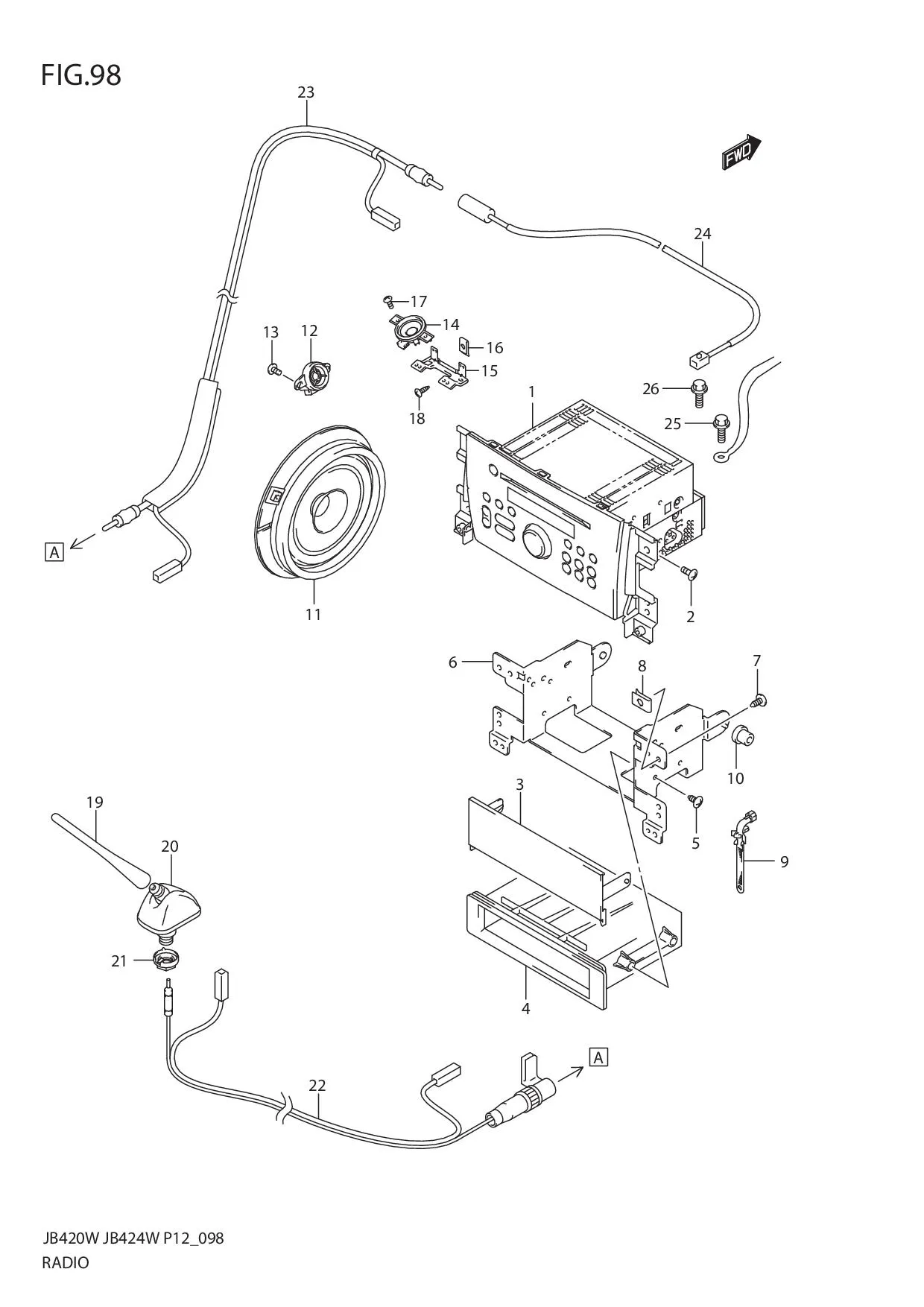

FIG.98 RADIO

FIG.98 RADIO
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 39101-76KE0-ZCA		 TUNER ASSY (AM/FM,6CD,9KHZ) (BLACK) 1 - TYPE 4:W/TUNER
1-1 DISCONTINUE
SUB: 39101-65JR1-ZS1		 TUNER ASSY (AM/FM,6CD,9KHZ) (BROWN) 1 - TYPE 3:W/TUNER
1-3 DISCONTINUE
SUB: 39101-76KE0-ZS1		 TUNER ASSY (AM/FM,6CD,9KHZ) (BROWN) 1 - TYPE 4:W/TUNER
2 02142-0508A-000
SUB: 02142-0506A-000		 SCREW 6 Rp3.500
3-1 DISCONTINUE
SUB: 39161-74G00-000		 COVER, RADIO HOLE 1 - N/TUNER
3-2 DISCONTINUE
SUB: 39161B80J00N000		 COVER, RADIO HOLE 1 - N/TUNER FROM 2007-12
4-1 39182-77M10-000
SUB: 39182-70E51-000		 POCKET, TUNER 1 Rp38.000 N/TUNER
4-2 39182-77M10-000
SUB: 39182-80J00-000		 POCKET, TUNER 1 Rp38.000 N/TUNER FROM 2007-12
5 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 4 Rp3.500 N/TUNER
6-1 DISCONTINUE
SUB: 39321-65J10-000		 BRACKET, TUNER 1 - N/TUNER
6-2 DISCONTINUE
SUB: 39321-65J00-000		 BRACKET, TUNER 1 - W/TUNER
7-1 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500 N/TUNER
7-2 03541-0512A-000 SCREW 4 Rp3.500 W/TUNER
8 09148-05045-000
SUB: 09148B05045N000		 NUT 4 Rp4.000
9 09407-12404-000 CLAMP (L:140) 1 Rp19.500 N/TUNER
10 34955M54G10-000
SUB: 34955-54G10-000		 BUSHING, RADIO BRACKET 2 Rp6.500
11 39102-65J50-000
SUB: 39102B65J30N000		 SPEAKER ASSY FRONT & REAR 4 Rp136.000
12 39102-65J20-000 SPEAKER ASSY, TWEETER 2 Rp267.000 FROM 2007-10
13 03541-0410A-000 SCREW 4 Rp11.000 FROM 2007-10
14 DISCONTINUE
SUB: 39102-68HA0-000		 SPEAKER ASSY, CENTER 1 - W/CENTER SPEAKER
15 DISCONTINUE
SUB: 39350-76K00-000		 BRACKET, CENTER 1 - W/CENTER SPEAKER
16 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000 W/CENTER SPEAKER
17 02142-0512A-000
SUB: 02142B0512AN000		 SCREW 2 Rp3.500 W/CENTER SPEAKER
18 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 2 Rp3.500 W/CENTER SPEAKER
19 39251-64J00-000
SUB: 39251B64J00N000		 ROD, ANTENNA 1 Rp182.500
20-2 DISCONTINUE
SUB: 39253-65JB0-000		 BASE, ANTENNA 1 - FROM 2007-6
20-1 39253-64J01-000 BASE, ANTENNA 1 Rp1.083.500
21 39269-64J00-000
SUB: 39269B64J00N000		 NUT, ANTENNA BASE 1 Rp116.500 TO 2007-5
22-1 39271-66JC0-000 FEEDER, ANTENNA BACK 1 Rp302.500
22-2 DISCONTINUE
SUB: 39271-66JD0-000		 FEEDER, ANTENNA BACK 1 - FROM 2007-6
23-1 39271-65JE0-000
SUB: 39271-65JB0-000		 FEEDER, ANTENNA ROOF 1 Rp217.000 TYPE 3
23-2 39271-65JE0-000
SUB: 39271-76KB0-000		 FEEDER, ANTENNA ROOF 1 Rp217.000 TYPE 4
24 DISCONTINUE
SUB: 39270-64JA0-000		 FEEDER, ANTENNA INSTRUMENT PANEL 1 -
25 09115-06005-000 BOLT 1 Rp14.000 JB420W
26 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
