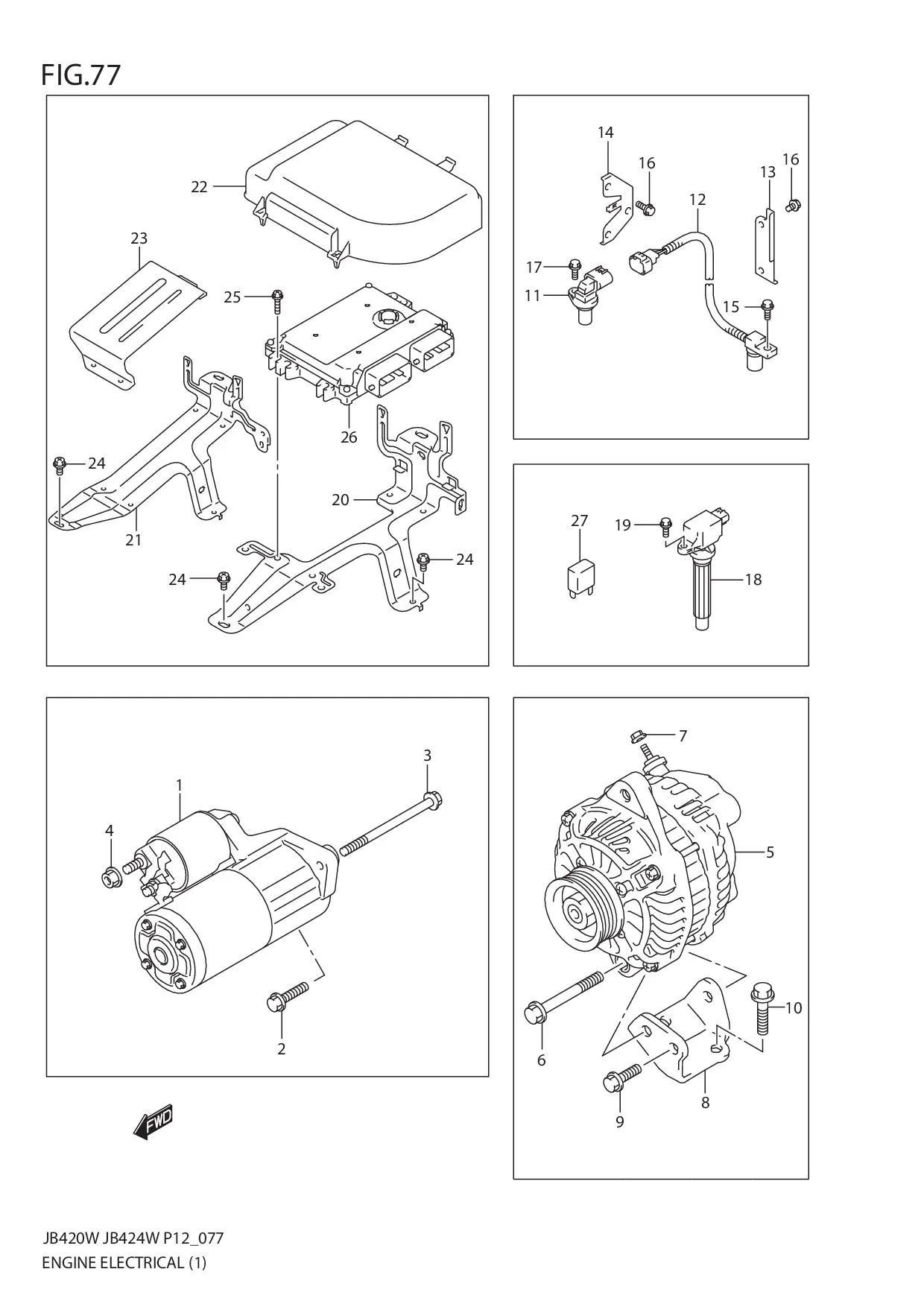

FIG.77 ENGINE ELECTRICAL (JB420W)

FIG.77 ENGINE ELECTRICAL (JB420W)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 31100B65J10N000		 MOTOR ASSY, STARTING 1 -
2-1 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500 MT
2-2 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 2 Rp3.500 AT
3 DISCONTINUE
SUB: 01550-0895A-000		 BOLT 1 - MT
4 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
5 DISCONTINUE
SUB: 31400B65J10N000		 GENERATOR ASSY 1 -
6 DISCONTINUE
SUB: 09103-10402-000		 BOLT (10X95) 1 -
7 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
8-1 DISCONTINUE
SUB: 11550-65J00-000		 BRACKET, GENERATOR 1 - ->11550-65J01 USED WITH 01550-1030A(2PCS)
8-2 DISCONTINUE
SUB: 11550-65J01-000		 BRACKET, GENERATOR 1 - FROM 2006-7
9 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500
10-1 01550-1035A-000
SUB: 01550B1035AN000		 BOLT 2 Rp5.500
10-2 01550-1030B-000
SUB: 01550-1030A-000		 BOLT 2 Rp25.500 FROM 2006-7
11 33220-64L20-000
SUB: 33220-63J00-000		 SENSOR ASSY, CMP 1 Rp1.027.000
12 33220-77E00-000 SENSOR ASSY, CKP 1 Rp1.113.500
13 DISCONTINUE
SUB: 33221-77E00-000		 BRACKET, CKP SENSOR 1 -
14 DISCONTINUE
SUB: 33221-77E11-000		 BRACKET, CKP SENSOR 1 -
15 09103-06283-000 BOLT, CKP SENSOR 1 Rp20.500
16 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 3 -
17 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500
18 DISCONTINUE
SUB: 33400B65J00N000		 COIL ASSY, IGNITION 4 -
19 09135-05002-000 BOLT (5X23) 4 Rp18.000
20 33924-65J00-000 BRACKET, FUEL INJECTION CONT 1 Rp342.500 TO 2007-2
21 DISCONTINUE
SUB: 33924-65J12-000		 BRACKET, FUEL INJECTION CONTROL 1 - FROM 2006-7
22 33925-65J00-000 COVER, FUEL INJECTION CONTROL 1 Rp143.000 TO 2007-2
23 DISCONTINUE
SUB: 33924-65J20-000		 BRACKET, FUEL INJECTION CONTROL 1 - FROM 2007-3
24 DISCONTINUE
SUB: 02162-0612D-000		 BOLT 3 -
25 02162-0625A-000 BOLT 4 Rp3.500
26-1 33921-65JN1-000 CONTROLLER, FUEL INJECTION 1 Rp21.538.500 TYPE 3:MT
26-2 33921-65JP1-000 CONTROLLER, FUEL INJECTION 1 Rp26.282.000 TYPE 3:AT
26-3 DISCONTINUE
SUB: 33920-77K40-000		 CONTROLLER, FUEL INJECTION 1 - TYPE 4:MT
26-4 33920-77K50-000 CONTROLLER, FUEL INJECTION 1 Rp30.587.500 TYPE 4:AT
27 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY 3 Rp47.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
