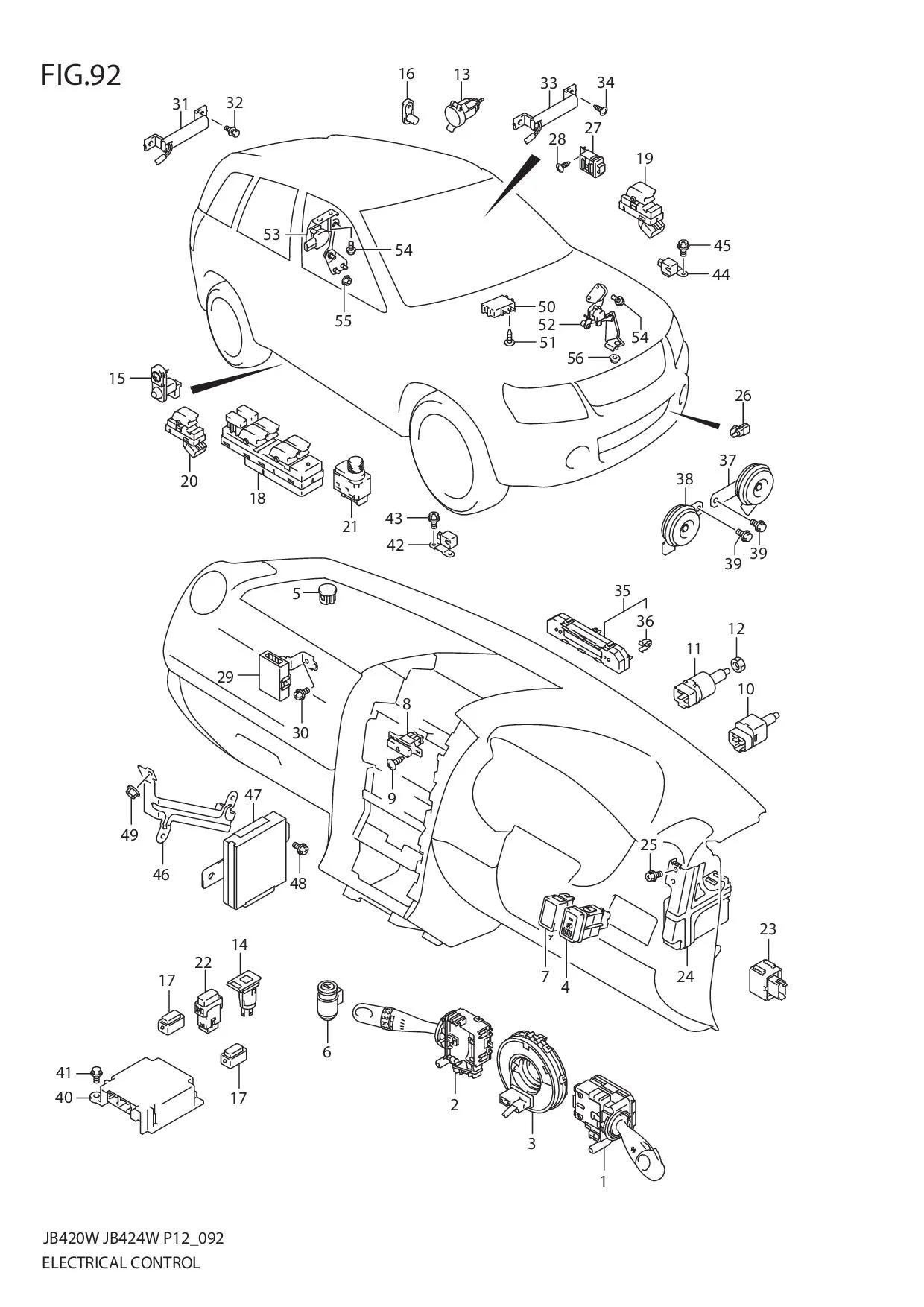

FIG.92 ELECTRICAL CONTROL

FIG.92 ELECTRICAL CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1-2 37210-82K01-000
SUB: 37210-82K00-000		 SWITCH ASSY, LIGHTING & TURN 1 Rp1.616.500 W/AUTO LIGHT
1-1 37210-73HB1-000
SUB: 37210-73H00-000		 SWITCH ASSY, LIGHTING & TURN 1 Rp286.000 N/AUTO LIGHT
2 37310-62J21-000 SWITCH ASSY, WIPER & WASHER 1 Rp1.508.500
3-1 37480-73H00-000 CABLE ASSY, CONTACT COIL 1 Rp1.609.000 N/STEERING AUDIO SWITCH
3-2 37480-62J00-000
SUB: 37480B62J00N000		 CABLE ASSY, CONTACT COIL 1 Rp371.500 W/STEERING AUDIO SWITCH
4 37270-62J00-000 SWITCH ASSY, FRONT FOG LAMP 1 Rp375.000
5-1 74523-54J00-5PK CAP, AUTO LIGHT SENSOR (BLACK) 1 Rp46.500 N/AUTO LIGHT
5-2 38680-50J10-000 SENSOR ASSY, AUTO LIGHT 1 Rp620.000 W/AUTO LIGHT
6 DISCONTINUE
SUB: 39400-65J01-000		 LIGHTER ASSY, CIGARETTE 1 -
7 37285-62J00-000 CAP, OPTION SWITCH HOLE 2 Rp45.000
8-1 37430-64J01-5PK
SUB: 37430-64J00-5PK		 SWITCH ASSY, HAZARD WARNING (BLACK) 1 Rp359.500
8-2 DISCONTINUE
SUB: 37430-64J00-R8R		 SWITCH ASSY, HAZARD WARNING (BROWN) 1 -
9 03541-0416A-000
SUB: 03541B0416AN000		 SCREW 2 Rp3.500
10 37740-81K00-000
SUB: 37740B75H10N000		 SWITCH ASSY, STOP LAMP 1 Rp77.500
11 37970-64J00-000 SWITCH ASSY, CLUTCH 1 Rp507.000 JB424W:MT
12 09140-10043-000 NUT 1 Rp14.500 JB424W:MT
13 DISCONTINUE
SUB: 39410-60A01-000		 SOCKET ASSY 1 -
14 DISCONTINUE
SUB: 39410-64J10-5PK		 SOCKET ASSY (BLACK) 1 -
15-2 37670-58J10-000
SUB: 37670B68H10N000		 SWITCH ASSY, DOOR 4 Rp107.500 FROM 2007-6
15-1 37670-58J10-000
SUB: 37670B58J10N000		 SWITCH ASSY, DOOR 4 Rp107.500
16 37670-79A10-000 SWITCH ASSY, BACK DOOR 1 Rp139.000
17 DISCONTINUE
SUB: 37285-50J01-000		 CAP, OPTION SWITCH HOLE 2 -
18 37990-64J90-000 SWITCH ASSY, POWER WINDOW MAIN 1 Rp1.564.000
19 37995-62J00-000 SWITCH ASSY, POWER WINDOW SUB 1 Rp247.500
20 37995-62J00-000 SWITCH ASSY, POWER WINDOW REAR 2 Rp247.500
21-1 37950-62J01-000
SUB: 37950-62J00-000		 SWITCH ASSY, MIRROR 1 Rp274.000 N/POWER FOLDING MIRROR
21-2 37950-62J11-000
SUB: 37950-62J10-000		 SWITCH ASSY, MIRROR 1 Rp333.000 W/POWER FOLDING MIRROR
22 37865-64J02-000
SUB: 37865-64J01-000		 SWITCH ASSY, AT MODE 1 Rp420.000 AT
23 38610-84F21-000 RELAY ASSY, TURNSIGNAL & 4WAY 1 Rp683.500
24-1 36770-65J80-000 CONTROLLER ASSY, BODY ELECTRIC 1 Rp4.460.500 TYPE 3
24-2 36770-65J81-000 CONTROLLER ASSY, BODY ELECTRIC 1 Rp4.171.000 TYPE 3 FROM 2007-9
24-3 36770-76K83-000
SUB: 36770-76K80-000		 CONTROLLER ASSY, BODY ELECTRIC 1 Rp5.029.500 TYPE 4:JB420W
24-4 36770-76KF3-000
SUB: 36770-76KF0-000		 CONTROLLER ASSY, BODY ELECTRIC 1 Rp6.291.000 TYPE 4:JB420W
25 DISCONTINUE
SUB: 02162-0612C-000		 BOLT 2 -
26 95643-58J00-000 SENSOR, OUTSIDE TEMPERATURE 1 Rp262.000
27 37190-64J20-000 RECEIVER ASSY, KEYLESS 1 Rp2.418.500 N/KEYLESS START
28 03141-0516B-000
SUB: 03141-0516A-000		 SCREW 1 Rp3.500 N/KEYLESS START
29-1 37171-64JN0-000 CONTROLLER ASSY, KEYLESS START 1 Rp3.181.000 W/KEYLESS START
29-2 37171-64JN2-000
SUB: 37171-64JN1-000		 CONTROLLER ASSY, KEYLESS START 1 Rp4.049.500 W/KEYLESS START FROM 2007-5
30 02162-0616A-000 BOLT 1 Rp3.000
31 DISCONTINUE
SUB: 37175-62J00-000		 ANTENNA ASSY, KEYLESS START LUGGAGE ROOM INSIDE 1 -
32 02162-0612A-000 BOLT 1 Rp11.000
33 DISCONTINUE
SUB: 37175-64J00-000		 ANTENNA ASSY, KEYLESS START INSIDE 1 -
34 02162-0612A-000 BOLT 1 Rp11.000
35 34600-65J41-000 MONITOR ASSY, INFORMATION 1 Rp1.908.000 W/INFORMATION MONITOR
36 09409-08326-000
SUB: 09409B08326N000		 •CLIP 3 Rp8.000 W/INFORMATION MONITOR
37 DISCONTINUE
SUB: 38500B66J00N000		 HORN ASSY, LOW PITCHED 1 -
38 DISCONTINUE
SUB: 38500B66J10N000		 HORN ASSY, HIGH PITCHED 1 -
39 09115-08001-000 BOLT (8X18) 2 Rp21.500
40-1 38910-65J40-000 CONTROLLER ASSY, AIR BAG 1 Rp11.421.000 TYPE 3
40-2 38910-76K40-000 CONTROLLER ASSY, AIR BAG 1 Rp8.609.000 TYPE 4
41 DISCONTINUE
SUB: 09115-06003-000		 BOLT (6X16) 3 -
42 DISCONTINUE
SUB: 38930-65J00-000		 SENSOR ASSY, FORWARD RH 1 -
43 02162-0612A-000 SCREW 2 Rp11.000
44 DISCONTINUE
SUB: 38930-65J10-000		 SENSOR ASSY, FORWARD LH 1 -
45 02162-0612A-000 SCREW 2 Rp11.000
46 DISCONTINUE
SUB: 33946-65J10-000		 BRACKET, AT CONTROLLER 1 - AT
47-1 38880-65J90-000 CONTROLLER ASSY, AT 1 Rp11.992.000 TYPE 3:JB420W:AT
47-2 DISCONTINUE
SUB: 38880-77K00-000		 CONTROLLER ASSY, AT 1 - TYPE 4:JB420W:AT
47-3 38880-78K50-000 CONTROLLER ASSY, AT 1 Rp9.301.000 TYPE 4:JB420W:AT
48 02162-0612A-000 BOLT 2 Rp11.000
49 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
50 38620-65J10-000
SUB: 38620-65J01-000		 CONTROLLER ASSY, AUTO LEVELING 1 Rp5.041.500 W/AUTO LEVELING
51 03541-0512A-000 SCREW 1 Rp3.500 DX
52 38640-65J00-000 SENSOR ASSY, FRONT HEIGHT 1 Rp2.545.000 DX
53-1 38640-65J10-000 SENSOR ASSY, REAR HEIGHT 1 Rp3.141.000 DX
53-2 DISCONTINUE
SUB: 38640-78K10-000		 SENSOR ASSY, REAR HEIGHT 1 - TYPE 4 W/AUTO LEVELING
54 02162-0612A-000 SCREW 4 Rp11.000 DX
55 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000 DX
56 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500 DX
