GRAND VITARA (JB420_424)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.77 ENGINE ELECTRICAL (JB420W)FIG.78 ENGINE ELECTRICAL (JB424W)FIG.79 STARTING MOTOR (JB420W)FIG.80 STARTING MOTOR (JB424W)FIG.81 GENERATOR (JB420W)FIG.82 GENERATOR (JB424W)FIG.83 BATTERYFIG.84 SPEEDOMETER (JB420W)FIG.85 HEADLAMP (JB420W)FIG.86 HEADLAMP (JB424W)FIG.87 FOG LAMPFIG.88 ROOM LAMPFIG.89 REAR LAMPFIG.90 WIRING HARNESS (JB420W)FIG.91 WIRING HARNESS (JB424W)FIG.92 ELECTRICAL CONTROLFIG.93 LOCK SETFIG.94 FRONT WINDOW WIPERFIG.95 WINDOW WASHER (TYPE 3)FIG.96 WINDOW WASHER (TYPE 4)FIG.97 REAR WINDOW WIPER FIG.98 RADIO

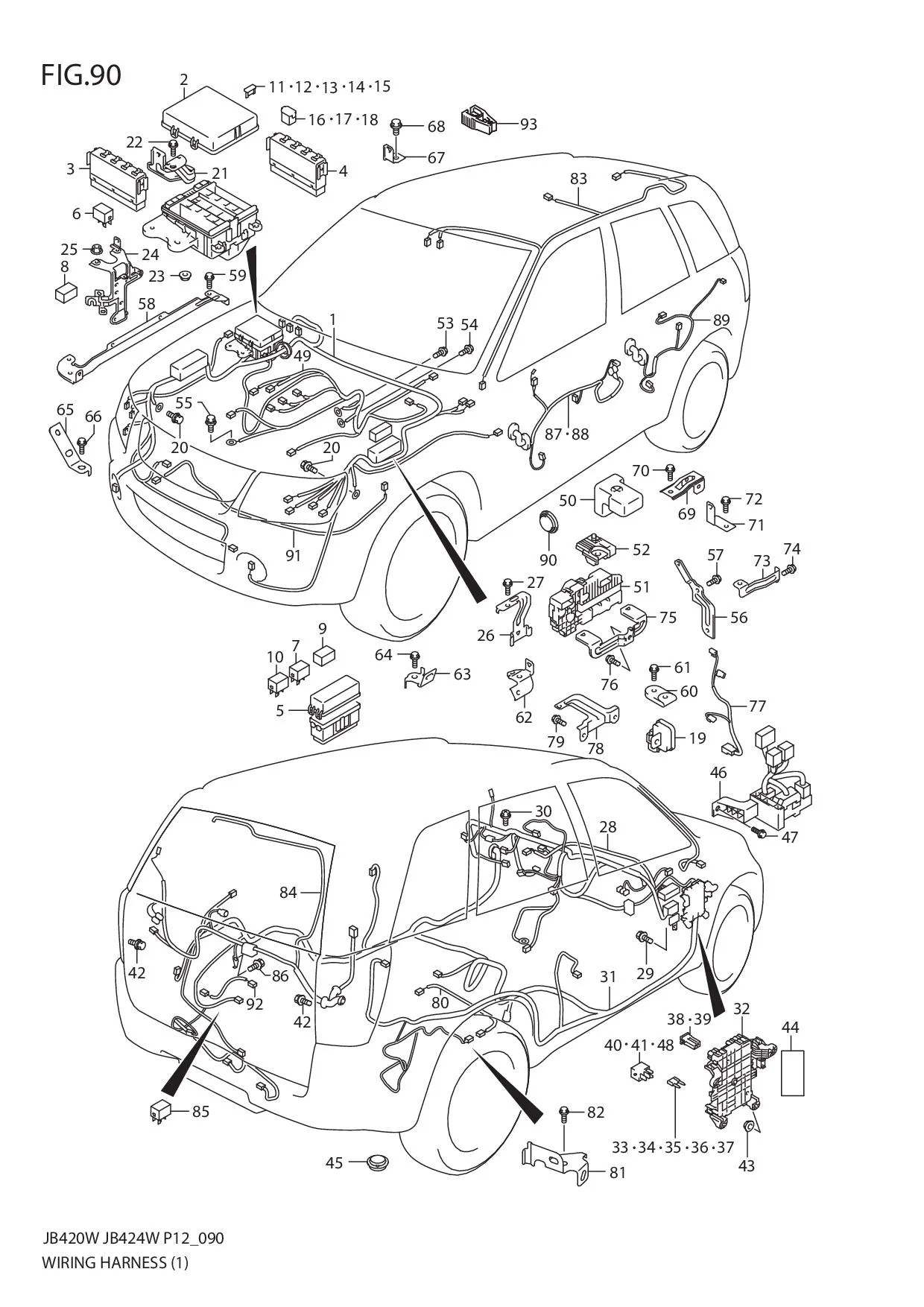

FIG.90 WIRING HARNESS (JB420W)

FIG.90 WIRING HARNESS (JB420W)
No No. Part Description Qty Price Per Pcs Remarks
1-1 DISCONTINUE
SUB: 36610B65JQ0N000		 HARNESS ASSY, MAIN 1 - TYPE 3:MT:STD
1-2 DISCONTINUE
SUB: 36610B65JS0N000		 HARNESS ASSY, MAIN 1 - TYPE 3:MT:DX
1-3 DISCONTINUE
SUB: 36610B65JT0N000		 HARNESS ASSY, MAIN 1 - TYPE 3:AT
1-4 DISCONTINUE
SUB: 36610B77K40N000		 HARNESS ASSY, MAIN 1 - TYPE 4:MT
1-5 DISCONTINUE
SUB: 36610B77K50N000		 HARNESS ASSY, MAIN 1 - TYPE 4:AT
2 36738-64J01-000 •COVER, FUSE & RELAY BOX 1 Rp147.500
3 36742-65J00-000 •MODULE, POWER INTEGRATION 1 Rp766.500 MARK:SA
4 36742-76J00-000 •MODULE, POWER INTEGRATION 1 Rp801.000 MARK:SB
5 36744-65J00-000 •COVER, RELAY BOX 1 Rp112.000
6 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, HEADLAMP 2 Rp47.000
7 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, STARTER 1 Rp47.000
8 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, RADIATOR FAN 2 Rp47.000
9 38860-78F00-000 •RELAY, RADIATOR FAN 1 Rp274.000
10 74145-65D00-000 •RELAY, BLOWER FAN 1 Rp310.500
11 09481-10504-000 •FUSE (10A) 3 Rp12.500
12 09481-15504-000 •FUSE (15A) 6 Rp13.000
13 09481-20504-000 •FUSE (20A) 5 Rp14.500
14 09481-25504-000 •FUSE (25A) 1 Rp17.500
15 09481-30504-000 •FUSE (30A) 1 Rp15.000
16 09481-30403-000 •FUSE (30A) 1 Rp41.000
17 09481-40403-000 •FUSE (40A) 3 Rp51.500
18 09481-50403-000 •FUSE (50A) 1 Rp51.000
19 32810-65J00-000 SENSOR ASSY, CURRENT 1 Rp1.242.000
20 09115-06005-000 BOLT (6X16) 3 Rp14.000
21 DISCONTINUE
SUB: 36735-64JA1-000		 BRACKET, MAIN FUSE & RELAY BOX 1 -
22 DISCONTINUE
SUB: 09122-86002-000		 SCREW 1 -
23 09159-06076-000 NUT 2 Rp19.500
24 DISCONTINUE
SUB: 36735-64J11-000		 BRACKET, STRUT RH 1 -
25 09159-06076-000 NUT 3 Rp19.500
26 DISCONTINUE
SUB: 36735-64J30-000		 BRACKET, RADIATOR RELAY BOX 1 -
27 02162-0612A-000 SCREW 1 Rp11.000
28-1 DISCONTINUE
SUB: 36620B64J90N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - TYPE 3:MT:STD
28-2 DISCONTINUE
SUB: 36620B64JB0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - TYPE 3:MT:DX
28-3 DISCONTINUE
SUB: 36620B64JA0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - TYPE 3:AT
28-4 DISCONTINUE
SUB: 36620B76KH0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - TYPE 4:MT
28-5 DISCONTINUE
SUB: 36620B76KJ0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - TYPE 4:AT
29 09115-06005-000 BOLT (6X16) 3 Rp14.000
30 02162-0612A-000 SCREW 1 Rp11.000
31-1 DISCONTINUE
SUB: 36630B65JS0N000		 HARNESS ASSY, FLOOR 1 - TYPE 3:STD
31-2 DISCONTINUE
SUB: 36630B65JT0N000		 HARNESS ASSY, FLOOR 1 - TYPE 3:DX
31-3 DISCONTINUE
SUB: 36630B78KD0N000		 HARNESS ASSY, FLOOR 1 - TYPE 4
32-1 36710-64JA0-000
SUB: 36710-64J00-000		 •BOX ASSY, JUNCTION 1 Rp1.847.000 TYPE 3
32-2 DISCONTINUE
SUB: 36710-76K20-000		 •BOX ASSY, JUNCTION 1 - TYPE 4
33 09481-07501-000 •FUSE (7.5A) 3 Rp13.000
34 09481-10504-000 •FUSE (10A) 10 Rp12.500
35 09481-15504-000 •FUSE (15A) 8 Rp13.000
36 09481-20504-000 •FUSE (20A) 3 Rp14.500
37 09481-25504-000 •FUSE (25A) 3 Rp17.500
38 09481-20403-000 •FUSE (20A) 1 Rp47.500
39 09481-30403-000 •FUSE (30A) 1 Rp41.000
40 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, ACCESSORY SOCKET 1 Rp47.000
41 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, TAIL LAMP 1 Rp47.000
42 09115-06005-000 BOLT (6X16) 2 Rp14.000
43 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
44 DISCONTINUE
SUB: 36717-64J01-000		 LABEL, FUSE BOX 1 -
45 09250-30002-000
SUB: 72999-67H00-000		 CAP 1 Rp5.500
46-1 DISCONTINUE
SUB: 36655B65J50N000		 WIRE, AT 1 - TYPE 3:AT
46-2 DISCONTINUE
SUB: 36655B78K60N000		 WIRE, AT 1 - TYPE 4:AT
47 02162-0612A-000 BOLT 1 Rp11.000
48 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, AT SHIFT LOCK 1 Rp47.000 AT
49-1 DISCONTINUE
SUB: 36650B65J81N000		 HARNESS ASSY, ENGINE 1 - TYPE 3:MT
49-2 DISCONTINUE
SUB: 36650B65J91N000		 HARNESS ASSY, ENGINE 1 - TYPE 3:AT
49-3 DISCONTINUE
SUB: 36650B77K30N000		 HARNESS ASSY, ENGINE 1 - TYPE 4:MT
49-4 DISCONTINUE
SUB: 36650B77K40N000		 HARNESS ASSY, ENGINE 1 - TYPE 4:AT
50 DISCONTINUE
SUB: 36694-64J00-000		 COVER, BATTERY TERMINAL 1 -
51 36740-64J00-000 •BLOCK, FUSE 1 Rp829.000
52 36739-50J00-000 •FUSE, BATTERY 1 Rp131.500
53 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
54 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
55 01550-0816A-000
SUB: 01550B0816AN000		 BOLT (6X16) 1 Rp6.000
56 DISCONTINUE
SUB: 36651-65J10-000		 BRACKET, ENGINE HARNESS 1 -
57 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
58 DISCONTINUE
SUB: 36651-65JB0-000		 BRACKET, ENGINE HARNESS 1 -
59 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
60 DISCONTINUE
SUB: 36651-65J50-000		 BRACKET, ENGINE HARNESS 1 -
61 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
62 DISCONTINUE
SUB: 36651-65J80-000		 BRACKET, ENGINE HARNESS 1 -
63 DISCONTINUE
SUB: 36651-65J71-000		 BRACKET, A/C COMPRESSOR WIRE 1 -
64 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000
65 DISCONTINUE
SUB: 36651-66H00-000		 BRACKET, ENGINE HARNESS 1 -
66 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
67 DISCONTINUE
SUB: 36655-84A01-000		 BRACKET, ENGINE HARNESS 1 - MT
68 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 - MT
69 DISCONTINUE
SUB: 36651-65J00-000		 BRACKET, EINGINE HARNESS 1 - AT
70 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 - AT
71 DISCONTINUE
SUB: 36651-65J20-000		 BRACKET, ENGINE HARNESS 1 - AT
72 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 - AT
73 DISCONTINUE
SUB: 36651-65J40-000		 BRACKET, ENGINE HARNESS 1 - AT
74 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 - AT
75 DISCONTINUE
SUB: 36745-64J00-000		 BRACKET, BATTERY HARNESS 1 -
76 DISCONTINUE
SUB: 09122-86002-000		 BOLT 1 -
77 DISCONTINUE
SUB: 74156B64J20N000		 WIRE, A/C PANEL 1 -
78 DISCONTINUE
SUB: 36745-64J10-000		 BRACKET, FUSE BLOCK 1 -
79 02162-0612A-000 BOLT 2 Rp11.000
80-1 36840-65J00-000
SUB: 36840B65J10N000		 WIRE, FUEL 1 Rp850.500 TYPE 3
80-2 DISCONTINUE
SUB: 36840B78K20N000		 WIRE, FUEL; 1 - TYPE 4
81-1 DISCONTINUE
SUB: 36648-65J00-000		 BRACKET, FUEL WIRE 1 - TYPE 3
81-2 DISCONTINUE
SUB: 36648-78K00-000		 BRACKET, FUEL WIRE 1 - TYPE 4
82 02162-0612A-000 BOLT 1 Rp11.000
83-1 DISCONTINUE
SUB: 36820B65J70N000		 WIRE, ROOF 1 - TYPE 3
83-2 DISCONTINUE
SUB: 36820B78K60N000		 WIRE, ROOF 1 - TYPE 4
84-1 DISCONTINUE
SUB: 36845B65J50N000		 WIRE, BACK DOOR 1 - TYPE 3:STD
84-2 DISCONTINUE
SUB: 36845B65J60N000		 WIRE, BACK DOOR 1 - TYPE 3:DX
84-3 DISCONTINUE
SUB: 36680B78K20N000		 WIRE, BACK DOOR 1 - TYPE 4
85 38860-78F00-000 •RELAY, REAR WIPER 1 Rp274.000
86 09115-06005-000 BOLT (6X16) 1 Rp14.000
87-1 DISCONTINUE
SUB: 36756B65J80N000		 WIRE, FR DOOR DRIVER 1 - TYPE 3:STD
87-2 DISCONTINUE
SUB: 36756B65J90N000		 WIRE, FR DOOR DRIVER 1 - TYPE 3:DX
87-3 DISCONTINUE
SUB: 36756B78K90N000		 WIRE, FR DOOR DRIVER 1 - TYPE 4
88-1 DISCONTINUE
SUB: 36757B65J80N000		 WIRE, FR DOOR PASSENGER 1 - TYPE 3:STD
88-2 DISCONTINUE
SUB: 36757B65J90N000		 WIRE, FR DOOR PASSENGER 1 - TYPE 3:DX
88-3 DISCONTINUE
SUB: 36757B78K90N000		 WIRE, FR DOOR PASSENGER 1 - TYPE 4:DX
89-1 DISCONTINUE
SUB: 36751B65J80N000		 WIRE, REAR DOOR 2 - TYPE 3
89-2 DISCONTINUE
SUB: 36751B78K80N000		 WIRE, REAR DOOR 2 - TYPE 4
90 DISCONTINUE
SUB: 36699-64J00-000		 CAP, HARNESS HOLE 1 - MT
91 DISCONTINUE
SUB: 36658B65J20N000		 WIRE, FRONT HEIGHT SENSOR 1 -
92-1 DISCONTINUE
SUB: 36658B66J20N000		 WIRE, REAR HEIGHT SENSOR 1 - TYPE 3
92-2 DISCONTINUE
SUB: 36658B78K10N000		 WIRE, REAR HEIGHT SENSOR 1 - TYPE 4
93 DISCONTINUE
SUB: 36737-64J00-000		 PICK 1 - OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
