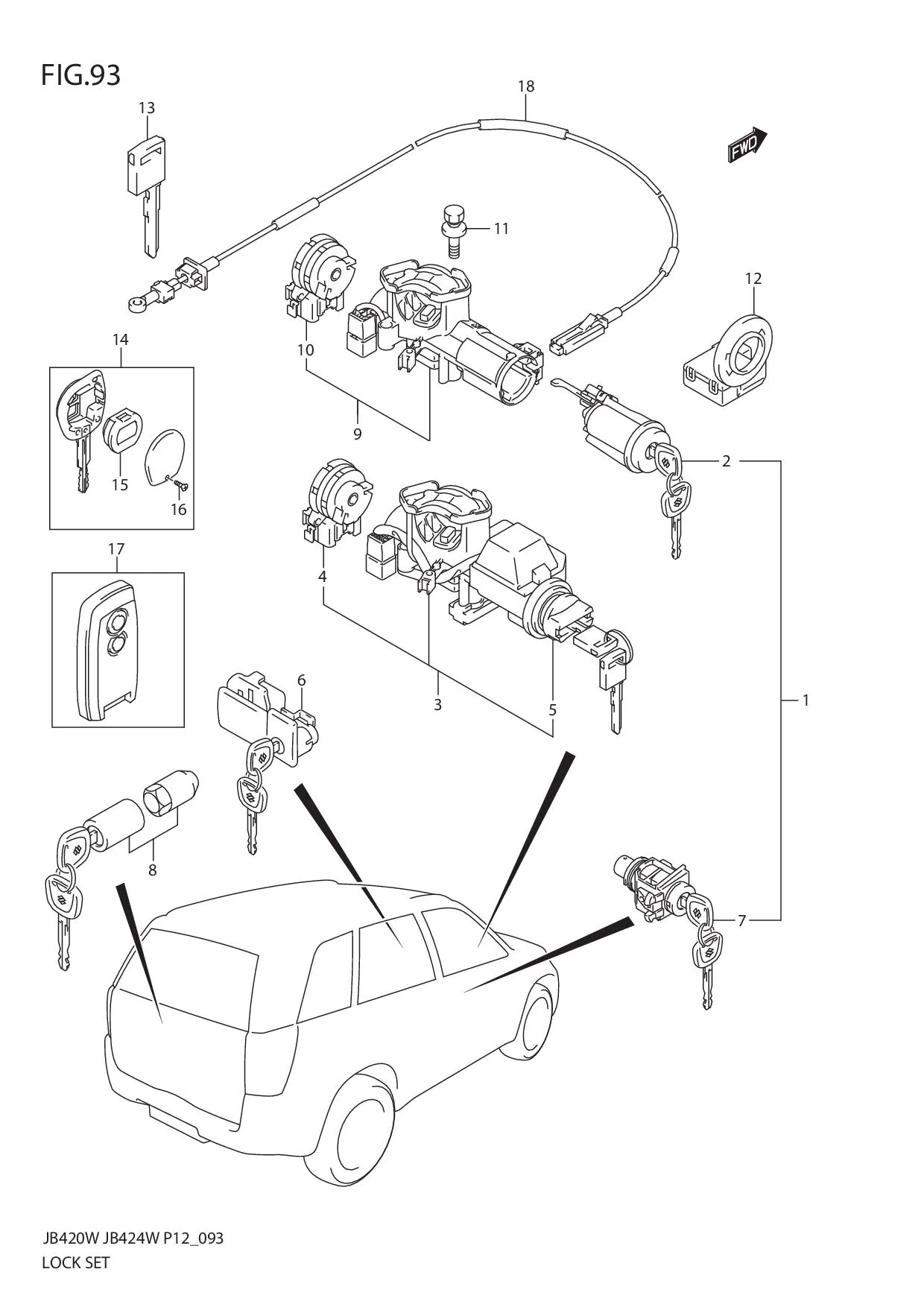

FIG.93 LOCK SET

FIG.93 LOCK SET
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 37107-65843-R8H		 LOCK SET (BEIGE) 1 - TYPE 3:MT:W/KEYLESS START
1-3 DISCONTINUE
SUB: 37107-65863-R8H		 LOCK SET (BEIGE) 1 - TYPE 3:AT:W/KEYLESS START
1-4 DISCONTINUE
SUB: 37105-68863-5PK		 LOCK SET (BLACK) 1 - TYPE 4:MT:W/KEYLESS START
1-5 DISCONTINUE
SUB: 37105-68893-5PK		 LOCK SET (BLACK) 1 - TYPE 4:AT:W/KEYLESS START
1-1 DISCONTINUE
SUB: 37106-64881-5PK		 LOCK SET (BLACK) 1 - TYPE 3:MT:N/KEYLESS START
2 DISCONTINUE
SUB: 37106-63880-000		 •LOCK ASSY, STEERING 1 - TYPE 3:MT:N/KEYLESS START
3-1 DISCONTINUE
SUB: 37107-65872-000		 •LOCK ASSY, STEERING 1 - TYPE 3:MT:W/KEYLESS START
3-2 DISCONTINUE
SUB: 37104-58883-000		 •LOCK ASSY, STEERING 1 - TYPE 3:AT:W/KEYLESS START
3-3 37104-68892-000 •LOCK ASSY, STEERING 1 Rp6.460.500 TYPE 4:MT:W/KEYLESS START
3-4 37105-68852-000 •LOCK ASSY, STEERING 1 Rp7.164.000 TYPE 4:AT:W/KEYLESS START
4 37111-58J00-000 ••SWITCH 1 Rp559.500 W/KEYLESS START
5 37102-63J20-000 ••KNOB, STEERING LOCK BODY 1 Rp120.000 W/KEYLESS START
6-2 73430-65820-R8H •LOCK, GLOVE BOX (BEIGE) 1 Rp896.500
6-1 73430-65820-5PK •LOCK, GLOVE BOX (BLACK) 1 Rp845.500
7 DISCONTINUE
SUB: 82270-65820-000		 •CYLINDER, FR DOOR LOCK RH 1 -
8 83900-76820-000 •KEY ASSY, SPARE TIRE NUT LOCK 1 Rp918.000
9 DISCONTINUE
SUB: 37101-62J10-000		 BODY, STEERING LOCK 1 - MT:N/KEYLESS START
10 37111-58J00-000 •SWITCH 1 Rp559.500 N/KEYLESS START
11 37152-84G00-000 BOLT, STEERING LOCK 2 Rp35.500
12 33970-65J00-000 CONTROLLER ASSY, IMMOBILIZER (W/ILLUMINATION) 1 Rp2.790.500 W/IMMOBILIZER
13 37145-63J01-000 KEY, BLANK 1 Rp543.000 OPT:W/KEYLESS START
14 37145-55A10-000
SUB: 37145-55JP0-000		 KEY, BLANK (W/TRANSMITTER) 1 Rp1.564.000 OPT:N/KEYLESS START
15 37182-62J30-000
SUB: 37182-62J20-000		 •SWITCH ASSY, TRANSMITTER 1 Rp1.079.000 N/KEYLESS START
16 37186-81A00-000 •SCREW 1 Rp23.000 N/KEYLESS START
17 37172-64J10-000 SWITCH, KEYLESS START 1 Rp1.392.500 W/KEYLESS START
18 28551-64J31-000
SUB: 28551-64J30-000		 CABLE, KEY INTERLOCKING 1 Rp432.000 AT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
