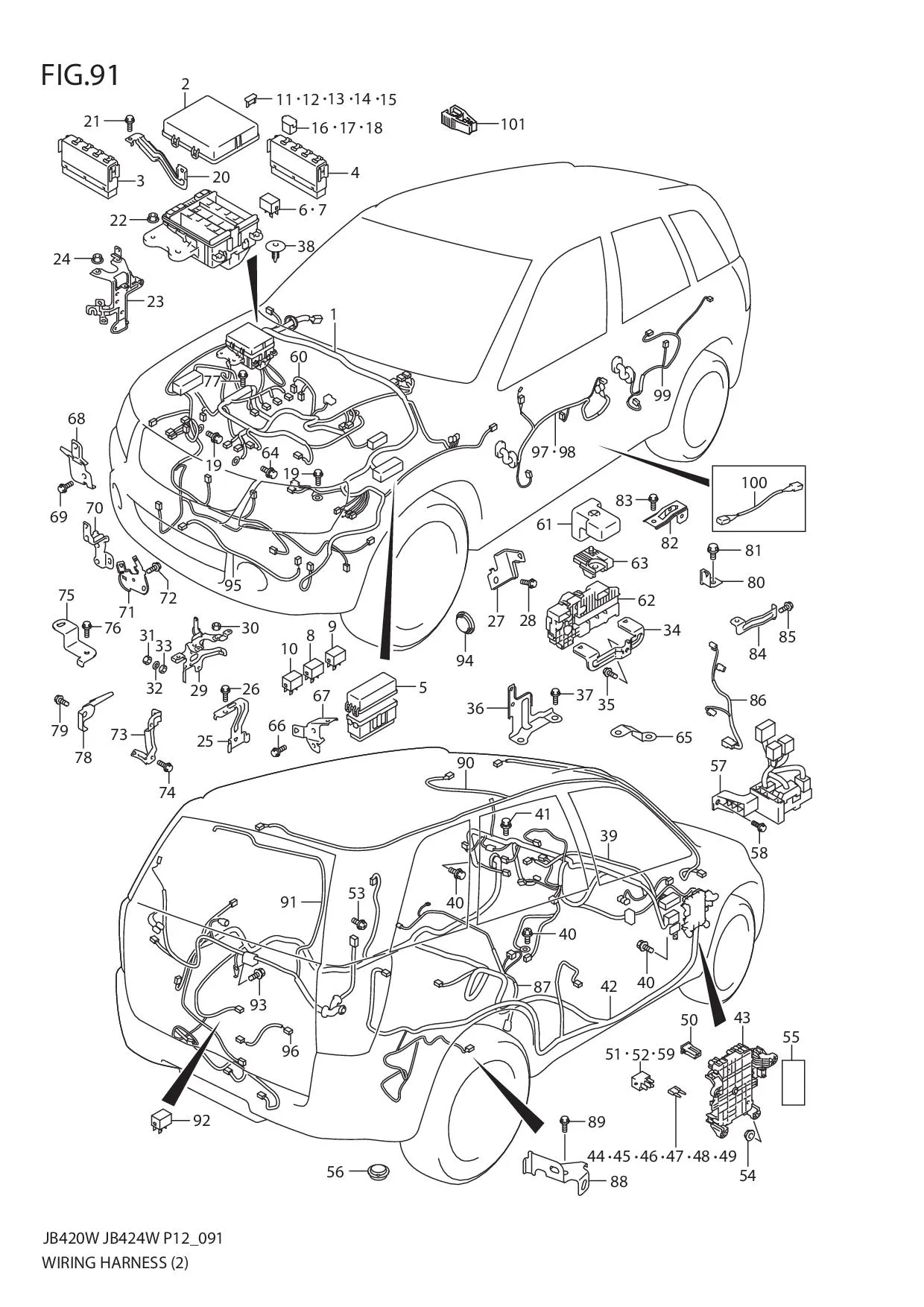

FIG.91 WIRING HARNESS (JB424W)

FIG.91 WIRING HARNESS (JB424W)
No No. Part Description Qty Price Per Pcs Remarks
1-1 DISCONTINUE
SUB: 36610B78KH0N000		 HARNESS ASSY, MAIN 1 - MT
1-2 DISCONTINUE
SUB: 36610B78KJ0N000		 HARNESS ASSY, MAIN 1 - AT
2 36738-64J01-000 •COVER, FUSE & RELAY BOX 1 Rp147.500
3 36742-65J00-000 •MODULE, POWER INTEGRATION 1 Rp766.500 MARK:SA
4 36742-76J00-000 •MODULE, POWER INTEGRATION 1 Rp801.000 MARK:SB
5 36744-65J00-000 •COVER, RELAY BOX 1 Rp112.000
6 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, HEADLAMP 2 Rp47.000
7 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, STARTER 1 Rp47.000
8 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, RADIATOR FAN 2 Rp47.000
9 38860-78F00-000 •RELAY, RADIATOR FAN 1 Rp274.000
10 74145-65D00-000 •RELAY, BLOWER FAN 1 Rp310.500
11 09481-10504-000 •FUSE (10A) 3 Rp12.500
12 09481-15504-000 •FUSE (15A) 6 Rp13.000
13 09481-20504-000 •FUSE (20A) 5 Rp14.500
14 09481-25504-000 •FUSE (25A) 1 Rp17.500
15 09481-30504-000 •FUSE (30A) 1 Rp15.000
16 09481-30403-000 •FUSE (30A) 1 Rp41.000
17 09481-40403-000 •FUSE (40A) 3 Rp51.500
18 09481-50403-000 •FUSE (50A) 1 Rp51.000
19 09115-06005-000 BOLT (6X16) 3 Rp14.000
20 DISCONTINUE
SUB: 36735-64JA1-000		 BRACKET, MAIN FUSE & RELAY BOX 1 -
21 02162-0612A-000 SCREW 1 Rp11.000
22 09159-06076-000 NUT 2 Rp19.500
23 DISCONTINUE
SUB: 36735-64J11-000		 BRACKET, STRUT RH 1 -
24 09159-06076-000 NUT 3 Rp19.500
25 DISCONTINUE
SUB: 36735-64J30-000		 BRACKET, RADIATOR RELAY BOX 1 -
26 DISCONTINUE
SUB: 09122-86002-000		 SCREW 1 -
27 DISCONTINUE
SUB: 36651-76K00-000		 BRACKET, BODY HARNESS 1 -
28 02162-0612A-000 SCREW 1 Rp11.000
29 DISCONTINUE
SUB: 36735-76K00-000		 BRACKET, STRUT LH 1 -
30 09159-06076-000 NUT 2 Rp19.500
31 09159-06081-000 NUT 1 Rp14.500
32 DISCONTINUE
SUB: 09180-06347-000		 SPACER (6.5X13X7.5) 1 -
33 09320-12036-000 CUSHION 1 Rp13.500
34 DISCONTINUE
SUB: 36745-64J00-000		 BRACKET, FUSE BLOCK 1 -
35 DISCONTINUE
SUB: 09122-86002-000		 SCREW (6X16) 1 -
36 DISCONTINUE
SUB: 36745-76K00-000		 BRACKET, BATTERY HARNESS 1 -
37 02162-0612A-000 SCREW 2 Rp11.000
38 09409-06330-000 CLIP 1 Rp21.500
39-1 DISCONTINUE
SUB: 36620B76KK0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - MT
39-2 DISCONTINUE
SUB: 36620B76KL0N000		 HARNESS ASSY, INSTRUMENT PANEL 1 - AT
40 09115-06005-000 BOLT (6X16) 3 Rp14.000
41 02162-0612A-000 SCREW 1 Rp11.000
42 DISCONTINUE
SUB: 36630B78KD0N000		 HARNESS ASSY, FLOOR 1 -
43 DISCONTINUE
SUB: 36710-76K20-000		 •BOX ASSY, JUNCTION 1 -
44 09481-07504-000 •FUSE (7.5A) 3 Rp13.000
45 09481-10504-000 •FUSE (10A) 10 Rp12.500
46 09481-15504-000 •FUSE (15A) 8 Rp13.000
47 09481-20504-000 •FUSE (20A) 3 Rp14.500
48 09481-25504-000 •FUSE (25A) 3 Rp17.500
49 09481-30504-000 •FUSE (30A) 1 Rp15.000
50 09481-30403-000 •FUSE (30A) 1 Rp41.000
51 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, ACCESSORY SOCKET 1 Rp47.000
52 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, TAIL LAMP 1 Rp47.000
53 09115-06005-000 BOLT (6X16) 2 Rp14.000
54 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
55 DISCONTINUE
SUB: 36717-76K00-000		 LABEL, FUSE BOX 1 -
56 09250-30002-000
SUB: 72999-67H00-000		 CAP 1 Rp5.500
57 DISCONTINUE
SUB: 36655B78K30N000		 WIRE, AT CONTROL 1 - AT
58 02162-0612A-000 BOLT 1 Rp11.000
59 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, AT SHIFT LOCK 1 Rp47.000 AT
60-1 DISCONTINUE
SUB: 36650B78K80N000		 HARNESS ASSY, ENGINE 1 - MT
60-2 DISCONTINUE
SUB: 36650B78K90N000		 HARNESS ASSY, ENGINE 1 - AT
61 DISCONTINUE
SUB: 36694-64J00-000		 COVER, BATTERY TERMINAL 1 -
62 DISCONTINUE
SUB: 36740-64J10-000		 •BLOCK, FUSE 1 -
63 36739-50J00-000 •FUSE, BATTERY 1 Rp131.500
64 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 3 -
65 DISCONTINUE
SUB: 36651-65J50-000		 BRACKET, ENGINE HARNESS 1 -
66 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000
67 DISCONTINUE
SUB: 36651-65J80-000		 BRACKET, ENGINE HARNESS 1 -
68 DISCONTINUE
SUB: 36651-78K00-000		 BRACKET, ENGINE HARNESS 1 -
69 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
70 DISCONTINUE
SUB: 36651-78K10-000		 BRACKET, ENGINE HARNESS 1 -
71 DISCONTINUE
SUB: 36651-78K20-000		 BRACKET, ENGINE HARNESS 1 -
72 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
73 DISCONTINUE
SUB: 36651-78K30-000		 BRACKET, ENGINE HARNESS 1 -
74 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
75 DISCONTINUE
SUB: 36651-78K40-000		 BRACKET, ENGINE HARNESS 1 -
76 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
77 01550-0616A-000
SUB: 01550B0616AN000		 BOLT, HARNESS PROTECTOR 2 Rp3.500
78 DISCONTINUE
SUB: 36651-78K50-000		 BRACKET, ENGINE HARNESS 1 -
79 01550-1020A-000 BOLT 1 Rp21.000
80 DISCONTINUE
SUB: 36655-84A01-000		 BRACKET, ENGINE HARNESS 1 -
81 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
82 DISCONTINUE
SUB: 36651-65J00-000		 BRACKET, ENGINE HARNESS 1 - AT
83 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 - AT
84 DISCONTINUE
SUB: 36651-65J40-000		 BRACKET, ENGINE HARNESS 1 - AT
85 02162-0612A-000 BOLT 1 Rp11.000 AT
86 DISCONTINUE
SUB: 74156B64J00N000		 WIRE, AIR CONDITIONER PANEL 1 -
87 DISCONTINUE
SUB: 36840B78K20N000		 WIRE, FUEL 1 -
88 DISCONTINUE
SUB: 36648-78K00-000		 BRACKET, FUEL WIRE 1 -
89 02162-0612A-000 BOLT 1 Rp11.000
90 DISCONTINUE
SUB: 36820B78K60N000		 WIRE, ROOF 1 -
91 DISCONTINUE
SUB: 36680B78K20N000		 WIRE, BACK DOOR 1 -
92 38860-78F00-000 •RELAY, REAR WIPER 1 Rp274.000
93 09115-06005-000 BOLT (6X16) 1 Rp14.000
94 DISCONTINUE
SUB: 36699-64J00-000		 CAP, HARNESS HOLE 1 - MT
95 DISCONTINUE
SUB: 36658B65J20N000		 WIRE, FRONT HIGHT SENSOR 1 -
96 DISCONTINUE
SUB: 36658B78K10N000		 WIRE, REAR HIGHT SENSOR 1 -
97 DISCONTINUE
SUB: 36756B78K90N000		 WIRE, FR DOOR DRIVER 1 -
98 DISCONTINUE
SUB: 36757B78K90N000		 WIRE, FR DOOR PASSENGER 1 -
99 DISCONTINUE
SUB: 36751B78K80N000		 WIRE, REAR DOOR 2 -
100 DISCONTINUE
SUB: 36691-65J00-000		 WIRE, AIR BAG PASSENGER 1 - OPT
101 DISCONTINUE
SUB: 36737-64J00-000		 PICK 1 - OPT
