GRAND VITARA (JB420_424)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.77 ENGINE ELECTRICAL (JB420W)FIG.78 ENGINE ELECTRICAL (JB424W)FIG.79 STARTING MOTOR (JB420W)FIG.80 STARTING MOTOR (JB424W)FIG.81 GENERATOR (JB420W)FIG.82 GENERATOR (JB424W)FIG.83 BATTERYFIG.84 SPEEDOMETER (JB420W)FIG.85 HEADLAMP (JB420W)FIG.86 HEADLAMP (JB424W)FIG.87 FOG LAMPFIG.88 ROOM LAMPFIG.89 REAR LAMPFIG.90 WIRING HARNESS (JB420W)FIG.91 WIRING HARNESS (JB424W)FIG.92 ELECTRICAL CONTROLFIG.93 LOCK SETFIG.94 FRONT WINDOW WIPERFIG.95 WINDOW WASHER (TYPE 3)FIG.96 WINDOW WASHER (TYPE 4)FIG.97 REAR WINDOW WIPER FIG.98 RADIO

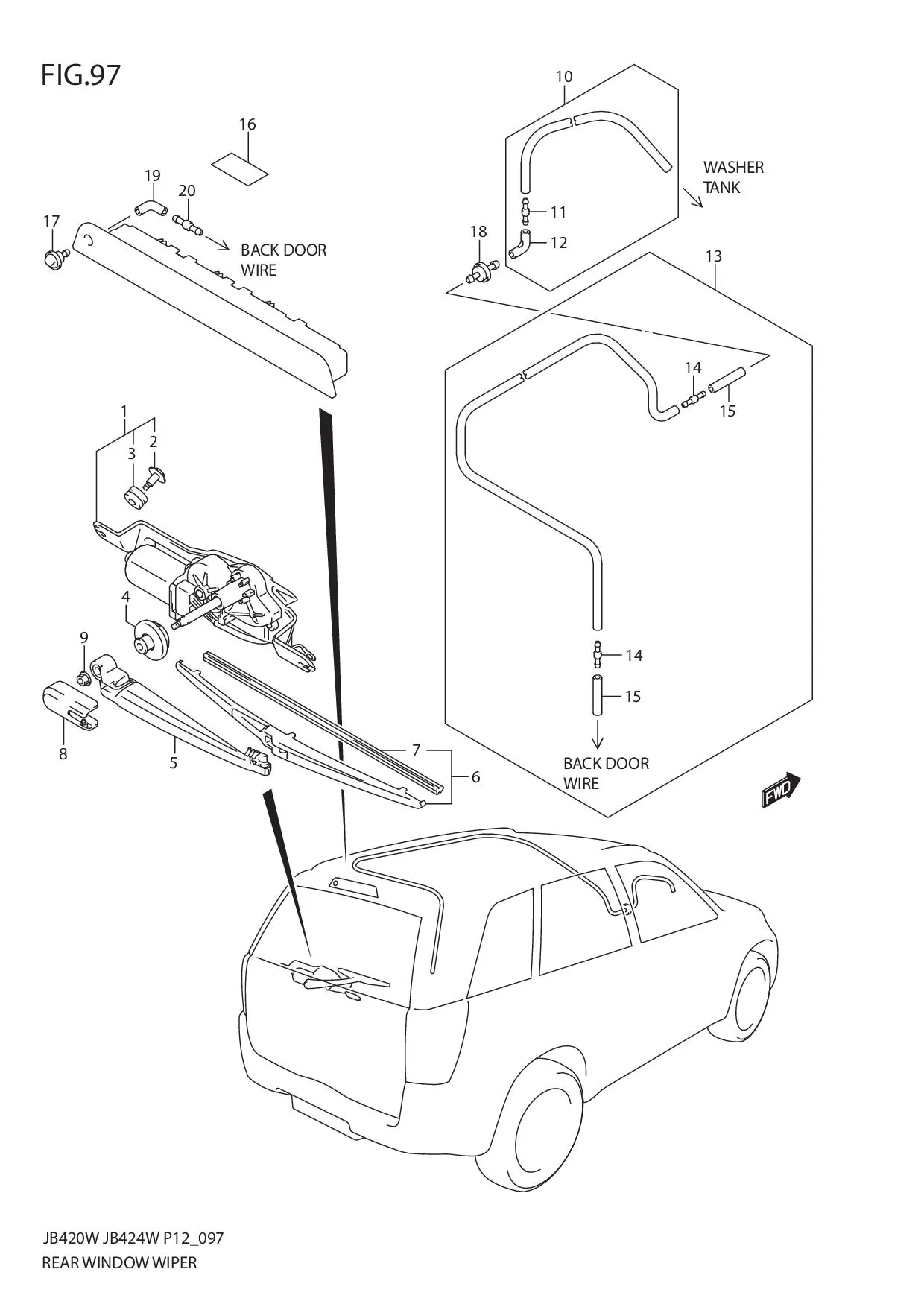

FIG.97 REAR WINDOW WIPER

FIG.97 REAR WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 38810B66J00N000		 WIPER ASSY, REAR WINDOW 1 - FROM 2006-6
1-1 DISCONTINUE
SUB: 38810B65J00N000		 WIPER ASSY, REAR WINDOW 1 -
2 DISCONTINUE
SUB: 38116-65JA0-000		 •BOLT, WIPER MOTOR 2 -
3 DISCONTINUE
SUB: 38116-65JB0-000		 •GROMMET 2 -
4 DISCONTINUE
SUB: 38274-65J00-000		 CAP, WIPER PIVOT 1 -
5 38821-65J00-000
SUB: 38821B65J00N000		 ARM ASSY, REAR WIPER 1 Rp395.500
6 38340-58J00-000
SUB: 38340B58J00N000		 BLADE ASSY, REAR WIPER 1 Rp113.500
7 38346-58J00-000 •BLADE 1 Rp87.500
8 38315-75H00-000 COVER, ARM HEAD 1 Rp50.500
9 08316-1006A-000
SUB: 08316B1006BN000		 NUT 1 Rp2.000
10-2 DISCONTINUE
SUB: 38834-65J11-000		 HOSE ASSY, REAR WASHER NO.1 1 - FROM 2006-6
10-1 DISCONTINUE
SUB: 38834-65J10-000		 HOSE ASSY, REAR WASHER NO.1 1 -
11 38496-56B00-000 •CONNECTOR 2 Rp33.500
12 38496-67H00-000 •JOINT, ELBOW 1 Rp33.500
13 DISCONTINUE
SUB: 38834-65J20-000		 HOSE ASSY, REAR WASHER 1 -
14 38496-56B00-000 •CONNECTOR 2 Rp33.500
15 38459-50J00-000 •HOSE WASHER (L:4X7X810) 2 Rp56.500 L:810->35
16 36930M82000-000
SUB: 36930-82010-000		 COVER 3 Rp6.500
17 38840-63J00-000
SUB: 38840B63J00N000		 NOZZLE ASSY, REAR WASHER 1 Rp30.500
18 38496-54G10-000 JOINT, WASHER HOSE 1 Rp46.000
19 38459-50J00-000 HOSE, WASHER (L:4X7X810) 1 Rp56.500 L:810->75
20 38833-79501-000 VALVE 1 Rp39.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
