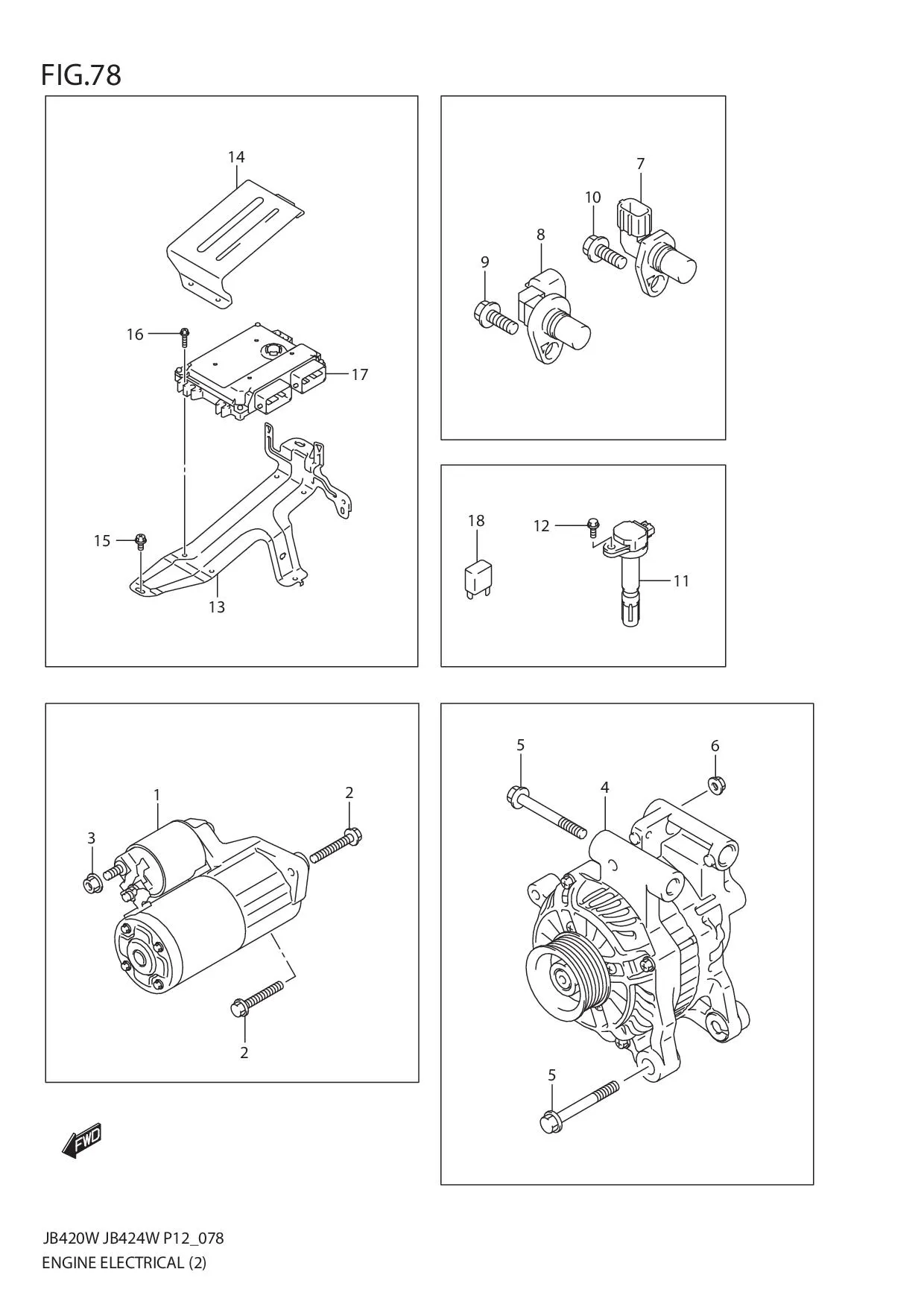

FIG.78 ENGINE ELECTRICAL (JB424W)

FIG.78 ENGINE ELECTRICAL (JB424W)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 31100-78K00-000		 MOTOR ASSY, STARTING 1 -
2-1 01550-1085A-000 BOLT 2 Rp7.000 MT
2-2 01550M1065A-000
SUB: 01550-1065A-000		 BOLT 2 Rp16.500 AT
3 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
4 DISCONTINUE
SUB: 31400-78K32-000		 GENERATOR ASSY 1 -
5 DISCONTINUE
SUB: 09103-10402-000		 BOLT (10X95) 3 -
6 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
7 33220-50M00-000
SUB: 33220-51K00-000		 SENSOR ASSY, CMP 1 Rp970.000
8 33220-64L20-000
SUB: 33220-63J00-000		 SENSOR ASSY, CKP 1 Rp1.027.000
9 09103-06283-000 BOLT (6X16) 1 Rp20.500
10 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500
11 33400-51K40-000
SUB: 33400-51K20-000		 COIL ASSY, IGNITION 4 Rp1.663.500
12 09135-06024-000 BOLT (5X23) 4 Rp16.500
13 DISCONTINUE
SUB: 33924-65J12-000		 BRACKET, FUEL INJECTION CONTROL 1 -
14 DISCONTINUE
SUB: 33924-65J20-000		 BRACKET, FUEL INJECTION CONTROL 1 -
15 DISCONTINUE
SUB: 02162-0612D-000		 BOLT (6X12) 3 -
16 02162-0625A-000 BOLT 4 Rp3.500
17-1 33921-78K02-000
SUB: 33921-78K00-000		 CONTROLLER, FUEL INJECTION 1 Rp23.070.500 MT
17-2 33921-78K11-000
SUB: 33921-78K10-000		 CONTROLLER, FUEL INJECTION 1 Rp28.856.500 AT
18 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY 3 Rp47.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
