ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.23 MT CLUTCH FIG.24 MT CL MASTER CYLINDER FIG.25 MT TRANSMISSION FIG.26 MT TM CASE FIG.27 MT GEAR SHIFT FORK FIG.28 GEAR SHIFT CONTROL FIG.29 PROPELLER SHAFT FIG.30 REAR DIFF GEAR

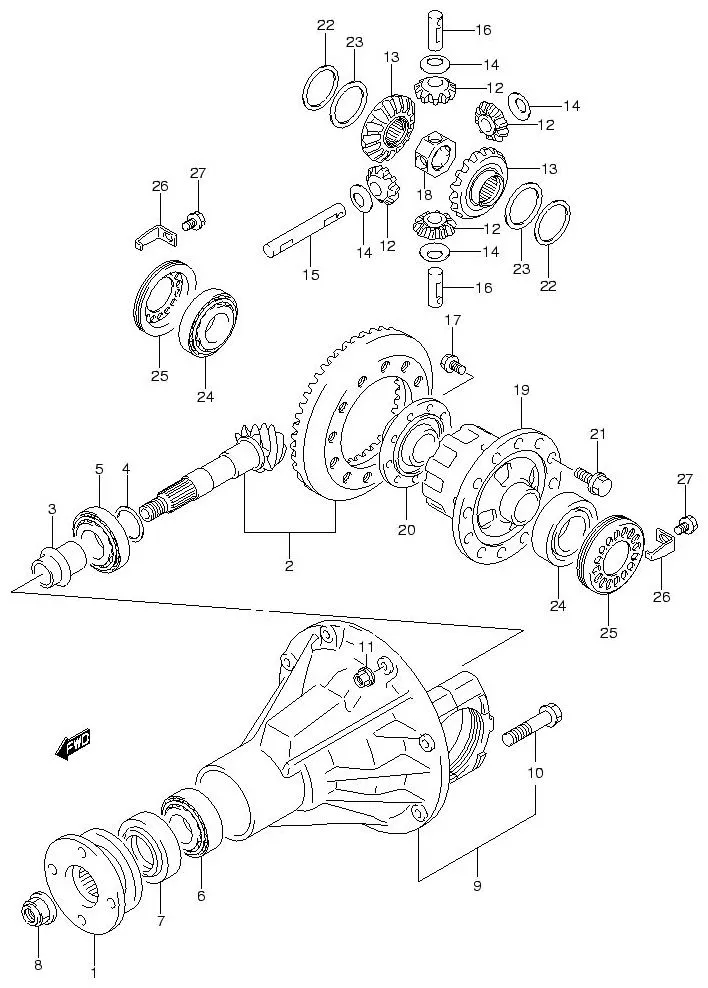

FIG.30 REAR DIFF GEAR

No	No. Part	Description	Qty	Price Per Pcs
1	27110-56B01-000	FLANGE, UNIVERSAL JOINT	1	Rp848.500
2	DISCONTINUE SUB: 27300-65810-000	BEVEL PINION & GEAR SET, REAR	1	-
3	27315-78E50-000 SUB: 27315-78E00-000	SPACER, PINION	1	Rp191.500
4-1	09181-35101-000	SHIM, PINION (T:0.30)	0	Rp14.500
4-12	09181-35125-000	SHIM, PINION (T:1.30)	0	Rp22.500
4-11	09181-35124-000	SHIM, PINION (T:1.27)	0	Rp30.500
4-10	09181-35122-000	SHIM, PINION (T:1.24)	0	Rp31.000
4-9	09181-35121-000	SHIM, PINION (T:1.21)	0	Rp30.500
4-8	09181-35119-000	SHIM, PINION (T:1.18)	0	Rp31.000
4-7	09181-35118-000	SHIM, PINION (T:1.15)	0	Rp22.500
4-6	09181-35117-000	SHIM, PINION (T:1.12)	0	Rp31.000
4-5	09181-35115-000	SHIM, PINION (T:1.09)	0	Rp32.000
4-4	09181-35114-000	SHIM, PINION (T:1.06)	0	Rp32.000
4-3	DISCONTINUE SUB: 09181-35112-000	SHIM, PINION (T:1.03)	0	-
4-2	09181-35111-000	SHIM, PINION (T:1.00)	0	Rp32.500
5	09265-35011-000	BEARING, PINION REAR	1	Rp690.000
6	09265-30018-000	BEARING, PINION FRONT	1	Rp581.000
7	09283-40027-000	SEAL, PINION OIL	1	Rp91.000
8	27375-60A00-000	NUT	1	Rp78.000
9	DISCONTINUE SUB: 27450-65D10-000	CARRIER ASSY, DIFF REAR	1	-
10	09111-12010-000	•BOLT (12X58)	4	Rp54.500
11	09159-10091-000	NUT	8	Rp26.500
12	27331-78E00-000	PINION, DIFF	4	Rp607.500
13	27341-78E00-000	GEAR, DIFF	2	Rp780.000
14	09164-15010-000	WASHER	4	Rp34.000
15	27351-65D00-000	SHAFT, DIFF PINION NO.1	1	Rp245.500
16	27355-65D00-000	SHAFT, DIFF PINION NO.2	2	Rp203.000
17	DISCONTINUE SUB: 09103-08348-000	BOLT	8	-
18	27356-86081-000	JOINT, PINION	1	Rp415.000
19	27411-78E10-000	CASE, DIFF LH	1	Rp3.091.000
20	27421-78E10-000	CASE, DIFF RH	1	Rp1.124.000
21	DISCONTINUE SUB: 09103-10184-000	BOLT (10X25)	12	-
22-1	09160M35015-000	WASHER, DIFF SIDE (T:0.6)	0	Rp6.500
22-2	09160M35014-000	WASHER, DIFF SIDE (T:0.7)	0	Rp10.000
22-3	DISCONTINUE SUB: 09160B35013N000	WASHER, DIFF SIDE (T:0.8)	0	-
23	09164-35003-000	WASHER, DIFF GEAR SPRING	2	Rp47.500
24	09265-45002-000	BEARING, DIFF SIDE	2	Rp636.000
25	27461-83000-000	ADJUSTER, BEARING	2	Rp114.500
26	DISCONTINUE SUB: 27462-63202-000	PLATE, BEARING LOCK	2	-
27	01550-0812A-000 SUB: 01550B08123N000	BOLT	2	Rp3.500
