ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 MT CLUTCHFIG.24 MT CL MASTER CYLINDERFIG.25 MT TRANSMISSIONFIG.26 MT TM CASEFIG.27 MT GEAR SHIFT FORKFIG.28 GEAR SHIFT CONTROLFIG.29 PROPELLER SHAFTFIG.30 REAR DIFF GEAR

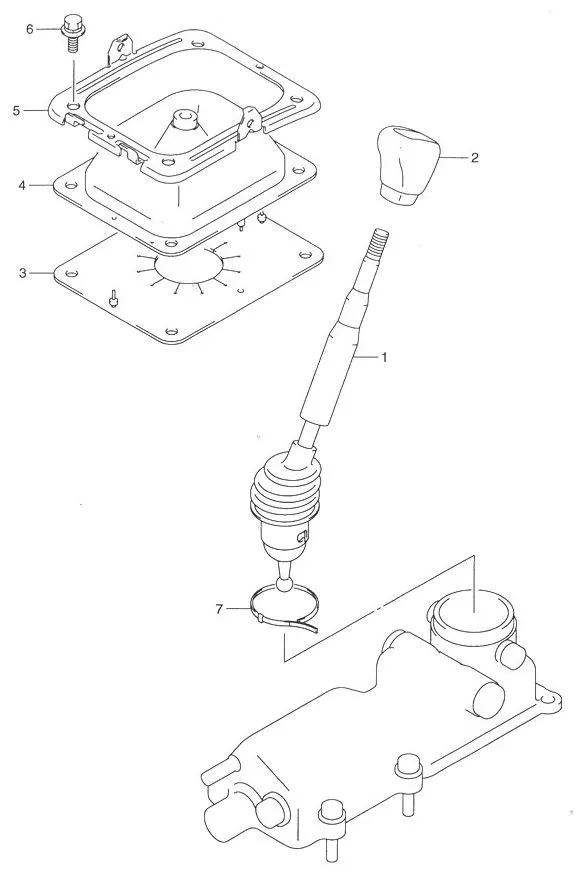

FIG.28 GEAR SHIFT CONTROL

FIG.28 GEAR SHIFT CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 28101-50J21-000
SUB: 28101-50J20-000		 LEVER, GEAR SHIFT CONTROL 1 Rp1.017.000
2 28113-50J07-KN3
SUB: 28113-50J00-KN3		 KNOB, CONTROL LEVER 1 Rp2.522.500
3 28135-65D60-000 SHEET, CONTROL LEVER 1 Rp233.500
4 28136-65D01-000 BOOT, CONTROL LEVER NO.2 1 Rp245.000
5 28137-65D10-000 COVER, BOOT 1 Rp190.000
6 DISCONTINUE
SUB: 09118-08118-000		 BOLT (8X20) 4 -
7 09401-57901-000 CLAMP 1 Rp60.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
