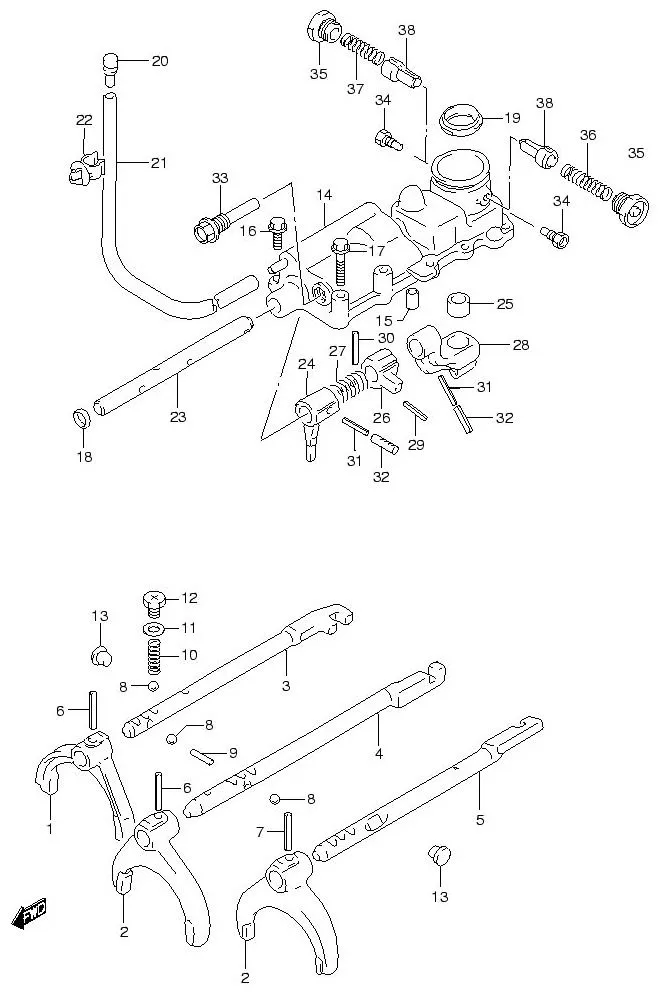

FIG.27 MT GEAR SHIFT FORK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 25211-60A02-000	FORK, LOW SPEED GEAR SHIFT	1	-
2	25221-60A11-000	FORK, HIGH & REV GEAR SHIFT	2	Rp883.000
3	DISCONTINUE SUB: 25410-60A00-000	SHAFT, LOW SPEED GEAR SHIFT	1	-
4	25420-60A10-000	SHAFT, HIGH SPEED GEAR SHIFT	1	Rp537.500
5	DISCONTINUE SUB: 25450-60A00-000	SHAFT, REV GEAR SHIFT	1	-
6	09205-05012-000	SPRING PIN	2	Rp14.000
7	09205-05016-000	SPRING PIN	1	Rp16.500
8	06111-12004-000	BALL	5	Rp14.000
9	09261-03017-000	ROLLER	1	Rp15.000
10	DISCONTINUE SUB: 25415-60A00-000	SPRING	3	-
11	DISCONTINUE SUB: 09168-12011-000	WASHER	3	-
12	09248-12005-000	SCREW	3	Rp34.000
13	09250-10006-000	PLUG	2	Rp16.000
14	DISCONTINUE SUB: 25120-60A50-000	CASE, GEAR SHIFT LEVER	1	-
15	04211-09149-000 SUB: 04211B09149N000	PIN	2	Rp3.000
16	01550-0825A-000 SUB: 01550-08253-000	BOLT	8	Rp3.500
17	01550-0850B-000 SUB: 01550-08503-000	BOLT	2	Rp24.500
18	09241-14002-000	PLUG	1	Rp21.000
19	28117-60A00-000	SEAT, CASE	1	Rp46.000
20	27991-65D01-000	PLUG, BREATHER	1	Rp22.500
21	09352-70119-600 SUB: 09352-70113-600	HOSE, BREATHER	1	Rp86.500	L:600!540
22	DISCONTINUE SUB: 09403-11311-000	CLAMP, BREATHER HOSE	1	-
23	DISCONTINUE SUB: 25521-60A11-000	SHAFT, GEAR SHIFT	1	-
24	DISCONTINUE SUB: 25541-60A03-000	LEVER, GEAR SHIFT	1	-
25	25551-60A02-000	BUSH, LEVER	1	Rp39.000
26	DISCONTINUE SUB: 25271-60A01-000	YOKE, GEAR SHIFT LIM	1	-
27	DISCONTINUE SUB: 09448-18019-000	SPRING	1	-
28	DISCONTINUE SUB: 25531-60A50-000	ARM, GEAR SHIFT	1	-
29	09205-05012-000	SPRING PIN	1	Rp14.000
30	DISCONTINUE SUB: 09205-05015-000	SPRING PIN	1	-
31	09205M03049-000 SUB: 09205M03037-000	SPRING PIN, INNER	2	Rp6.500
32	09205M06016-000 SUB: 09205-06007-000	SPRING PIN, OUTER	2	Rp4.500
33	DISCONTINUE SUB: 25281-60A10-000	BOLT, REV GEAR SHIFT LIM	1	-
34	09103-08384-000	BOLT (M8X18.4)	2	Rp30.500
35	DISCONTINUE SUB: 09247-18006-000	BOLT, SELECT RETURN	2	-
36	DISCONTINUE SUB: 09440-10037-000	SPRING, REVERSE	1	-
37	DISCONTINUE SUB: 09440-10036-000	SPRING, LOW	1	-
38	DISCONTINUE SUB: 25341-60A50-000	PIN, SELECT GUIDE	2	-
