Preview Engine Transmission Electrical Suspension Body

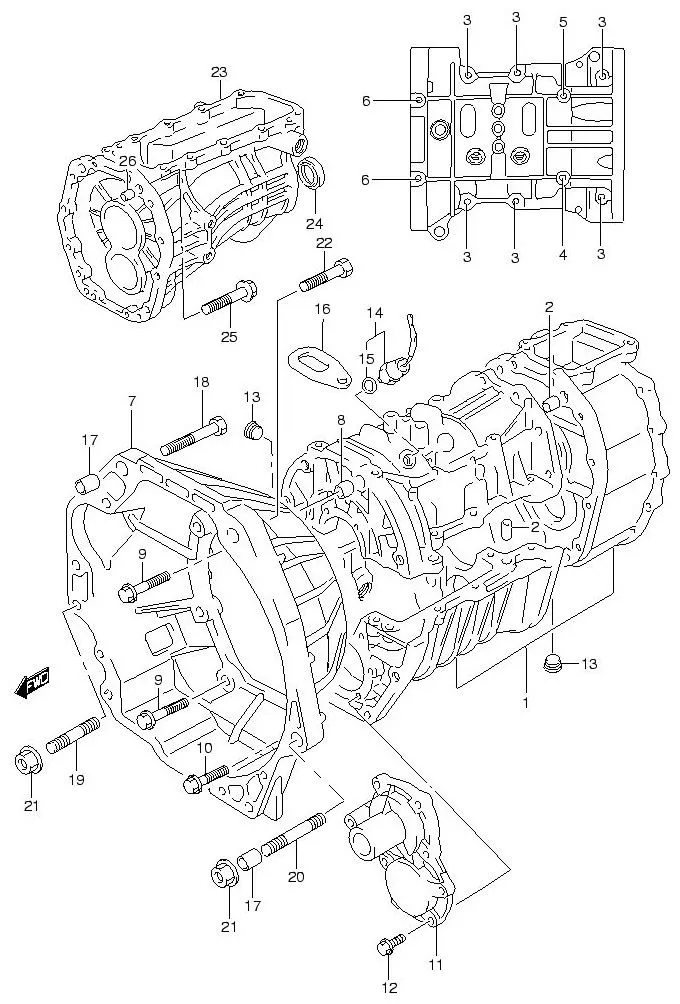

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 24700-65D90-000	CASE ASSY, TRANSMISSION	1	-
2	04211M13189-000 SUB: 04211M13149-000	•PIN	2	Rp9.000
3	01550-0830B-000 SUB: 01550-08303L000	•BOLT	6	Rp3.000
4	01550-0895B-000 SUB: 01550-08953-000	•BOLT	1	Rp29.500
5	DISCONTINUE SUB: 09103-08134-000	•BOLT (8X110)	1	-
6	DISCONTINUE SUB: 09103-08131-000	•BOLT (8X120)	2	-
7	DISCONTINUE SUB: 21341-65D41-000	HOUSING, CLUTCH	1	-
8	04211M13189-000 SUB: 04211M13149-000	PIN	2	Rp9.000
9	01550-1040B-000 SUB: 01550-10403-000	BOLT	6	Rp6.500
10	01550-1050B-000 SUB: 01550-10503-000	BOLT	2	Rp24.000
11	24741-66D00-000	RETAINER, INPUT SHAFT BEARING	1	Rp748.000
12	09103-08419-000 SUB: 09103-08152-000	BOLT (8X30)	8	Rp14.000
13	09246-16021-000 SUB: 09246-16010-000	PLUG, OIL FILLER & DRAIN	2	Rp48.000
14	37610-83001-000	SWITCH ASSY, BACK UP LAMP	1	Rp266.000
15	09280-11002-000	•O RING	1	Rp10.500
16	DISCONTINUE SUB: 11851-62B00-000	HOOK, ENGINE	1	-
17	09206-15001-000	PIN	2	Rp37.000
18	01550-1275A-000 SUB: 01550-12753-000	BOLT	1	Rp9.000
19	09108-12012-000 SUB: 09108-12007-000	STUD BOLT	1	Rp35.000
20	09108-12006-000	STUD BOLT	1	Rp37.500
21	08316-1012A-000 SUB: 08316-10123-000	NUT	2	Rp6.500
22	01550-1265B-000 SUB: 01550-12653-000	BOLT	1	Rp50.000
23	DISCONTINUE SUB: 24770-65D60-000	CASE ASSY, EXTENSION	1	-
24	24780-60A50-000	SEAL, OIL	1	Rp138.500
25	01550-0830B-000 SUB: 01550-08303L000	BOLT	12	Rp3.000
26	04211M13189-000 SUB: 04211M13149-000	PIN	2	Rp9.000
