Preview Engine Transmission Electrical Suspension Body

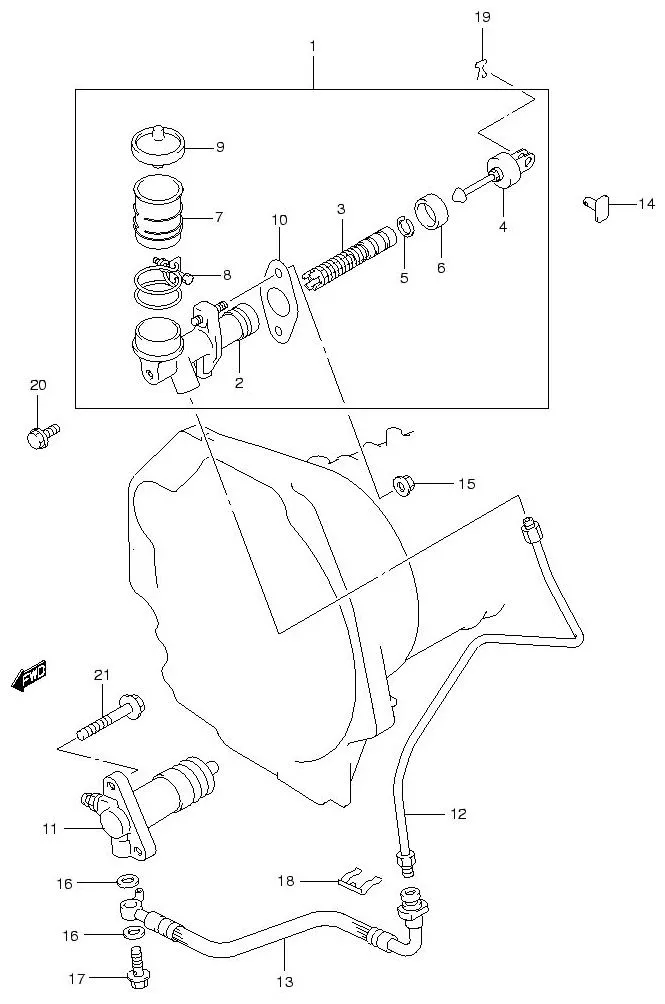

No	No. Part	Description	Qty	Price Per Pcs
1	23810-65D01-000 SUB: 23810-65D00-000	CYLINDER ASSY, CLUTCH MASTER	1	Rp1.461.500
2	DISCONTINUE SUB: 23811-65D00-000	•BODY, CLUTCH MASTER CYLINDER	1	-
3	23812-65D00-000	•PISTON ASSY	1	Rp352.000
4	23813-65D00-000	•PUSH ROD DAMPER ASSY	1	Rp388.500
5	DISCONTINUE SUB: 23814-65D00-000	•CIRCLIP	1	-
6	DISCONTINUE SUB: 23815-65D00-000	•BOOT	1	-
7	DISCONTINUE SUB: 23816-65D00-000	•RESERVOIR	1	-
8	DISCONTINUE SUB: 23817-65D00-000	•BAND ASSY	1	-
9	23818-65D00-000	•CAP	1	Rp191.500
10	DISCONTINUE SUB: 23819-65D00-000	•SEAL	1	-
11	23820-65D01-000 SUB: 23820-65D00-000	CYLINDER ASSY, CL OPERATING	1	Rp1.010.500
12	DISCONTINUE SUB: 23830-67D50-000	PIPE, CLUTCH OIL	1	-
13	23850-65D00-000	HOSE, CLUTCH OIL	1	Rp660.000
14	23875-65D00-000	PIN, CLUTCH MASTER CYLINDER	1	Rp48.500
15	09159-08127-000 SUB: 09159M08069-000	NUT	1	Rp11.000
16	09161-10009-000	WASHER (10X15X1.5)	2	Rp12.500
17	09360-10026-000	BOLT	1	Rp25.000
18	09383M13004-000 SUB: 09383M13001-000	E RING	1	Rp7.000
19	09385-08007-000	PIN, SNAP	1	Rp16.500
20	01550-0820A-000 SUB: 01550-08203-000	BOLT	1	Rp5.500
21	01550-1035B-000 SUB: 01550B10353N000	BOLT	2	Rp5.000
