ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 MT CLUTCHFIG.24 MT CL MASTER CYLINDERFIG.25 MT TRANSMISSIONFIG.26 MT TM CASEFIG.27 MT GEAR SHIFT FORKFIG.28 GEAR SHIFT CONTROLFIG.29 PROPELLER SHAFTFIG.30 REAR DIFF GEAR

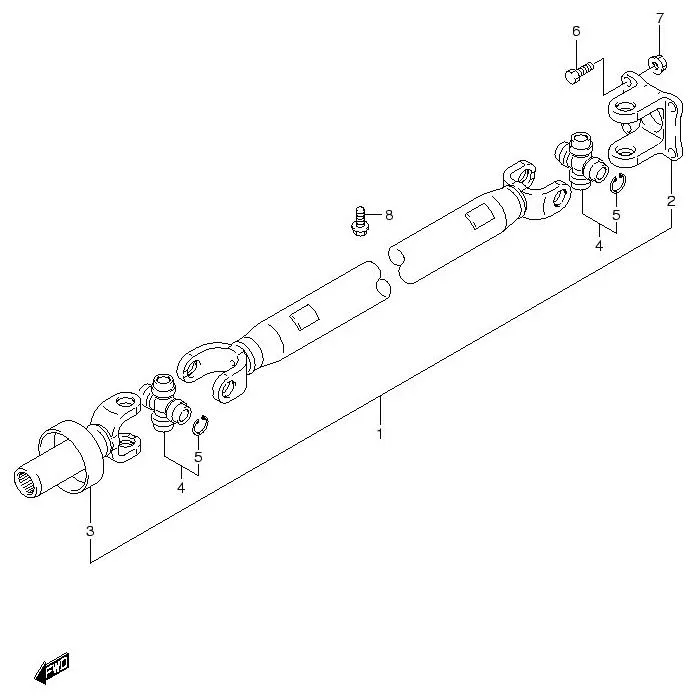

FIG.29 PROPELLER SHAFT

FIG.29 PROPELLER SHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 27100-65D01-000 SHAFT ASSY, PROPELLER REAR 1 Rp18.583.500
2 27131-56B00-000 •YOKE, JOINT FLANGE 1 Rp728.500
3 27140-60A51-000 •YOKE, SLIDING 1 Rp1.507.000
4 27200-83813-000
SUB: 27200-83812-000		 •JOINT ASSY, UNIVERSAL 2 Rp636.500
5 51118-36213-000 ••CIRCLIP 8 Rp27.500
6 01500-1030A-000
SUB: 01500-10303-000		 BOLT 4 Rp5.500
7 09159-10091-000 NUT 4 Rp26.500
8 DISCONTINUE
SUB: 01580-10203-000		 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
