ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.23 MT CLUTCHFIG.24 MT CL MASTER CYLINDERFIG.25 MT TRANSMISSIONFIG.26 MT TM CASEFIG.27 MT GEAR SHIFT FORKFIG.28 GEAR SHIFT CONTROLFIG.29 PROPELLER SHAFTFIG.30 REAR DIFF GEAR

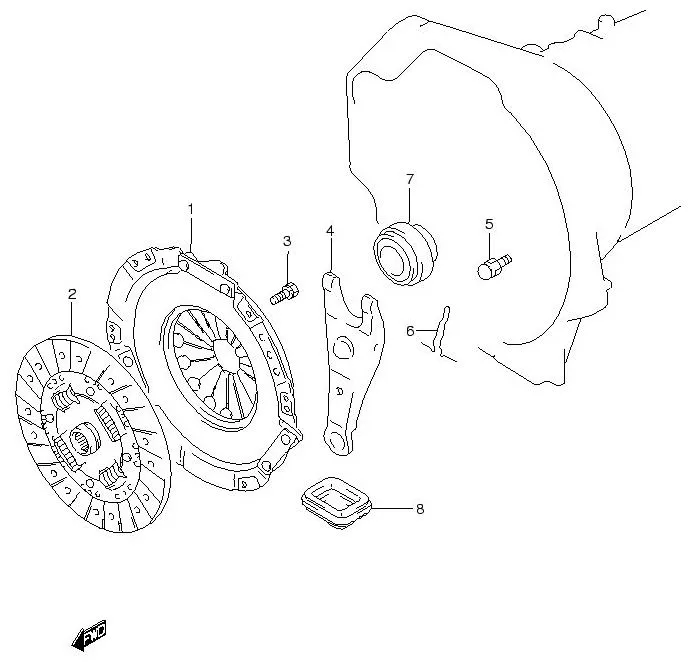

FIG.23 MT CLUTCH

FIG.23 MT CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 22100-77E00-000 COVER ASSY, CLUTCH 1 Rp2.319.500
2 22400-57B11-000 DISC, CLUTCH 1 Rp1.983.000
3 01550-0816A-000
SUB: 09117M08096-000		 BOLT (8X16) 6 Rp6.000
4 23211-66D01-000 FORK, CLUTCH RELEASE 1 Rp439.500
5 23221-78A00-000 SUPPORT, RELEASE FORK 1 Rp74.500
6 23241-50F00-000 CLIP, RELEASE FORK 1 Rp47.500
7 23265-65D00-000 BEARING, RELEASE 1 Rp478.500
8 23268-50F01-000 BOOT, RELEASE FORK 1 Rp78.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
