ESCUDO (SE416)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.23 MT CLUTCH FIG.24 MT CL MASTER CYLINDER FIG.25 MT TRANSMISSION FIG.26 MT TM CASE FIG.27 MT GEAR SHIFT FORK FIG.28 GEAR SHIFT CONTROL FIG.29 PROPELLER SHAFT FIG.30 REAR DIFF GEAR

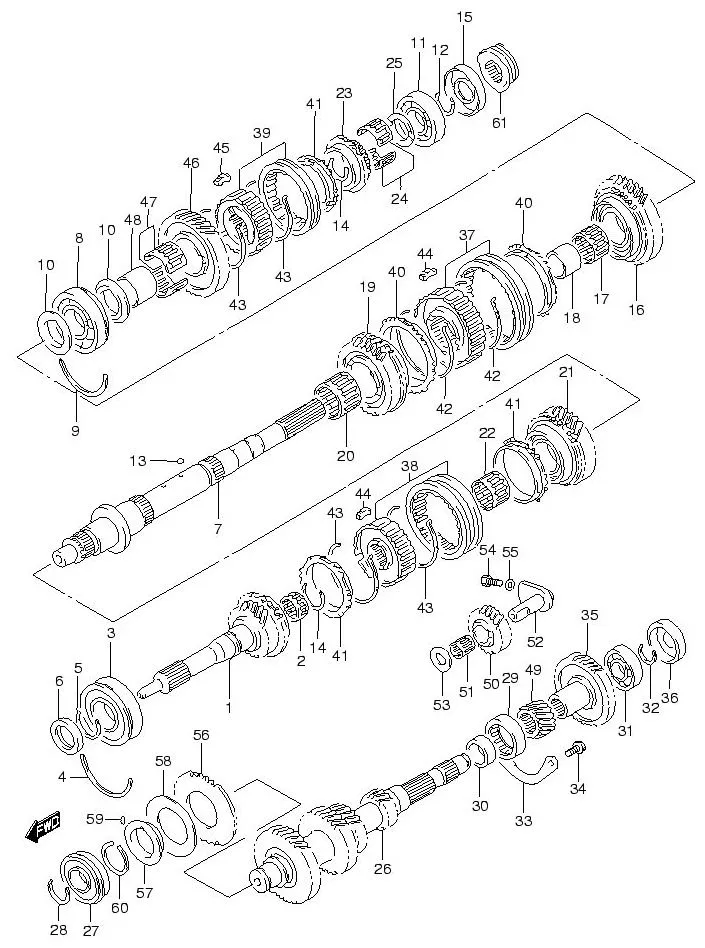

FIG.25 MT TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs
1	24110-66D01-000	SHAFT, INPUT	1	Rp2.961.500
2	24152-85F00-000	BEARING	1	Rp172.500
3	09262-28005-000	BEARING	1	Rp409.000
4	09390-68002-000	C RING	1	Rp24.000
5	09380-28007-000	CIRCLIP	1	Rp24.500
6	09283-28014-000	SEAL, OIL	1	Rp95.500
7	DISCONTINUE SUB: 24121-60A51-000	SHAFT, TRANSMISSION MAIN	1	-
8	09262-30097-000	BEARING	1	Rp496.000
9	DISCONTINUE SUB: 09390-65007-000	C RING	1	-
10	DISCONTINUE SUB: 24271-60A00-000	WASHER	2	-
11	09262-25073-000	BEARING, REAR	1	Rp184.000
12	09380-25011-000	CIRCLIP	1	Rp14.500
13	06111-06004-000 SUB: 06111B06003N000	BALL	3	Rp1.000
14	09380-28007-000	CIRCLIP	2	Rp24.500
15	09282-25006-000	SEAL, OIL	1	Rp156.000
16	DISCONTINUE SUB: 24211-83020-000	GEAR, MAIN SHAFT LOW	1	-
17	09263-35015-000	BEARING	1	Rp120.000
18	09300-30003-000	BUSH	1	Rp115.000
19	24220-60A01-000	GEAR, MAIN SHAFT 2ND	1	Rp1.706.500
20	09263-35015-000	BEARING	1	Rp120.000
21	24230-65D00-000	GEAR, MAIN SHAFT 3RD	1	Rp1.932.000
22	09263-30031-000	BEARING	1	Rp112.500
23	24250-77501-000 SUB: 24250-77500-000	GEAR, MAIN SHAFT 5TH	1	Rp1.086.000
24	24801-60810-000	BEARING	1	Rp208.000
25	24255-60A00-000	WASHER	1	Rp72.500
26	DISCONTINUE SUB: 24131-60A32-000	SHAFT, TRANSMISSION COUNTER	1	-
27	09262-28018-000	BEARING, FRONT	1	Rp524.000
28	09380-28007-000	CIRCLIP	1	Rp24.500
29	09264-25005-000	BEARING, CENTER	1	Rp728.500
30	09300-25028-000	BUSH	1	Rp246.000
31	09262-20073-000	BEARING, REAR	1	Rp152.000
32	09380-20011-000	CIRCLIP	1	Rp22.500
33	DISCONTINUE SUB: 24135-60A01-000	PLATE, BEARING	1	-
34	09103-06285-000 SUB: 09103-06083-000	BOLT (6X16)	2	Rp9.000
35	DISCONTINUE SUB: 24351-60A30-000	GEAR, COUNTER SHAFT 5TH	1	-
36	09241-52004-000	PLUG	1	Rp101.500
37	DISCONTINUE SUB: 24400-60A00-000	HUB, SYNC LOW SPEED	1	-
38	24410-60A00-000	HUB, SYNC HIGH SPEED	1	Rp1.775.000
39	24420-60A01-000	HUB, SYNC REV	1	Rp1.899.500
40	24431-83001-000	RING, SYNC LOW SPEED	2	Rp632.000
41	24432-60A00-000	RING, SYNC HIGH SPEED	3	Rp562.000
42	09388-00017-000	SPRING, LOW SPEED	2	Rp23.000
43	09388-00019-000	SPRING, HIGH SPEED	4	Rp23.000
44	24471-60A00-000	KEY	6	Rp19.500
45	24473-70D10-000	KEY	3	Rp29.500
46	DISCONTINUE SUB: 24681-60A00-000	GEAR, MAIN SHAFT REV	1	-
47	24801-60820-000	BEARING	1	Rp251.000
48	09300-30003-000	BUSH	1	Rp115.000
49	DISCONTINUE SUB: 24671-60A30-000	GEAR, COUNTER SHAFT REV	1	-
50	DISCONTINUE SUB: 24561-85F40-000	GEAR, REV IDLE	1	-
51	09263-26030-000	BEARING	1	Rp243.000
52	DISCONTINUE SUB: 24551-65D00-000	SHAFT, REV GEAR	1	-
53	DISCONTINUE SUB: 09166-20013-000	WASHER	1	-
54	24565-60B00-000	BOLT	1	Rp21.500
55	09168-08015-000 SUB: 09168B08015N000	WASHER	1	Rp2.000
56	24137-60A10-000	GEAR, FRICTION	1	Rp148.000
57	24138-60A01-000	RETAINER, FRICTION GEAR	1	Rp204.000
58	24139-60A00-000	SPRING, FRICTION GEAR	1	Rp85.000
59	DISCONTINUE SUB: 09261-02010-000	PIN	1	-
60	DISCONTINUE SUB: 09380-34005-000	RING, SNAP	1	-
61	DISCONTINUE SUB: 26121-60A50-000	GEAR, SPEEDOMETER DRIVE	1	-
