Preview Engine Transmission Electrical Suspension Body

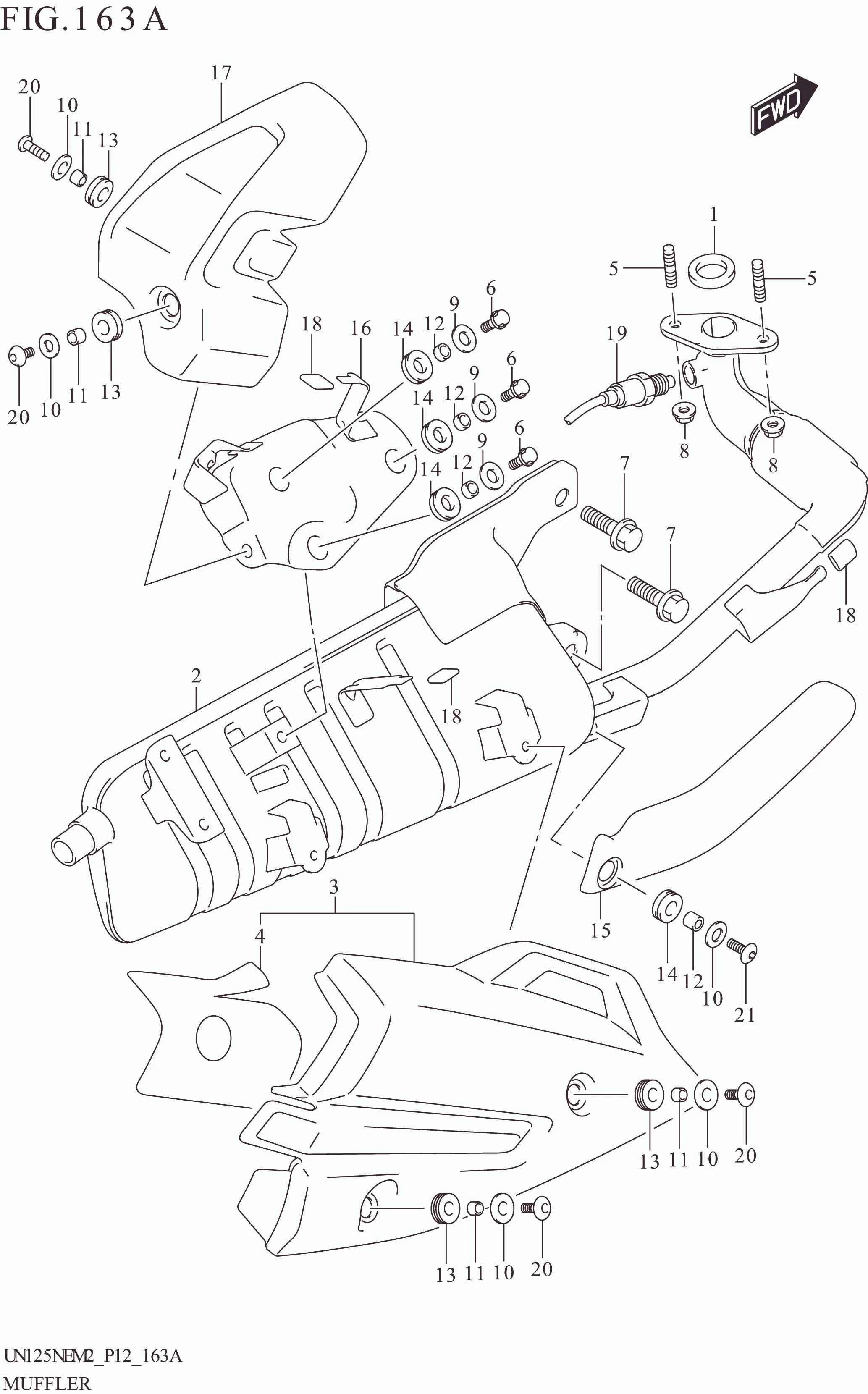

No	No. Part	Description	Qty	Price Per Pcs
1	14181-30A30-000	GASKET,EXH PIPE	1	Rp22.000
2	14310-14L00-000	9,MUFFLER	1	Rp2.820.000
3	14780-44K10-000	COVER,MUFFLER	1	Rp176.500
4	14782-44K00-000	.SHIELD,MUF COVER	1	Rp67.000
5	01421-0616A-000	BOLT,STUD	2	Rp3.500
6	01550-0616A-000	BOLT	3	Rp3.500
7	01550-1040A-000	BOLT	2	Rp7.000
8	08316-1006A-000	NUT (6X12)	2	Rp2.000
9	09160-06028-000	WASHER (6.5X18X1.0)	3	Rp3.500
10	09160-06151-000	WASHER (6.5X18X1)	5	Rp5.500
11	09180-06256-000	SPACER (6.5X9X5.7)	4	Rp3.000
12	09180-06343-000	SPACER	4	Rp12.500
13	09320-08L02-000	CUSHION	4	Rp14.500
14	09320-08082-000	CUSHION	4	Rp10.500
15	14180-44K10-000	COVER,EXH PIPE	1	Rp83.500
16	14760-44K01-000	STAY,MUF RR COV	1	Rp46.500
17	14791-44K30-000	COVER,MUF TAIL	1	Rp123.500
18	14795-10FA0-000	GROMMET	3	Rp5.500
19	18213-12K10-000	SENSOR,OXYGEN	1	Rp741.000
20	09139-06217-000	SCREW (6X16)	4	Rp10.000
21	01550-0616B-000	BOLT	1	Rp5.500
